150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine

150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine

150m Portable Water Well Drilling Machine

16.2Kw Portable Water Well Drilling Machine

Screw Thread Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200P

Contact Us
Request A Quote
Product Details
Name:
Portable Water Well Drilling Machine
Model:
RCS200P
Drilling Machine Overall Dimension:
1800x1000x2000mm
Weight:
1000kg
Drill Rod Diameter:
Ø 50
Drill Rod Length:
1500mm
Rod Change Method:
Full Automatic Screw Thread
Drilling Depth:
150m
Diesel Motor Powe:
22Hp / 16.2kw
Drilling Method:
Percussive And Rotating Type
Pump Power:
2.2kw
Warranty:
1 Year
Highlight:

150m Portable Water Well Drilling Machine

,

16.2Kw Portable Water Well Drilling Machine

,

Screw Thread Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$3000-3580
Packaging Details
Generally this machine is shipped by LCL shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine



Product Description



The RCS200P portable water well drill is a versatile device. With a drilling depth of up to 150 meters and a drilling diameter of 100 to 450 mm, it is particularly suitable for various types of water well drilling projects. In terms of design, this drill is fully portable and equipped with two wheels for easy mobility. This wheel design not only facilitates transportation, but also ensures stability during transportation. In terms of power, the device is equipped with a 22-horsepower diesel engine, which is powerful enough to complete the work quickly and efficiently.



Application



The equipment has a wide range of applications, including agricultural irrigation wells, garden wells and domestic drinking water wells. In agricultural irrigation, wells can be dug to meet the water needs of farmland; in gardens or orchards, wells can be dug to irrigate flower and grass seedlings, and to dig water sources for fountains and water gardens; in domestic drinking water, wells can be dug to provide residents with daily drinking water. The main advantages of the RCS200P portable water well drilling rig are convenient transportation and flexible operation. It can be easily transported and adapted to various working environments to meet the water well drilling needs of different users.



Technical Parameters



Model of drilling machine RCS200P
Drilling machine overall dimension(mm) 1800*1000*2000
Weight of Drilling machine (kg) 1000
Drill rod diameter (mm) Ø50
Drill rod length(mm) 1500
Rod change method Full automatic screw thread
Drilling depth(m) 150
Diesel Motor Power (Hp/kw) 22 / 16.2
Drilling method Percussive and rotating type
Drilling hole diameter(mm) Within Ø 450mm
Stroke distance (mm) 2000
Hosting capacity (kg) 1500KG

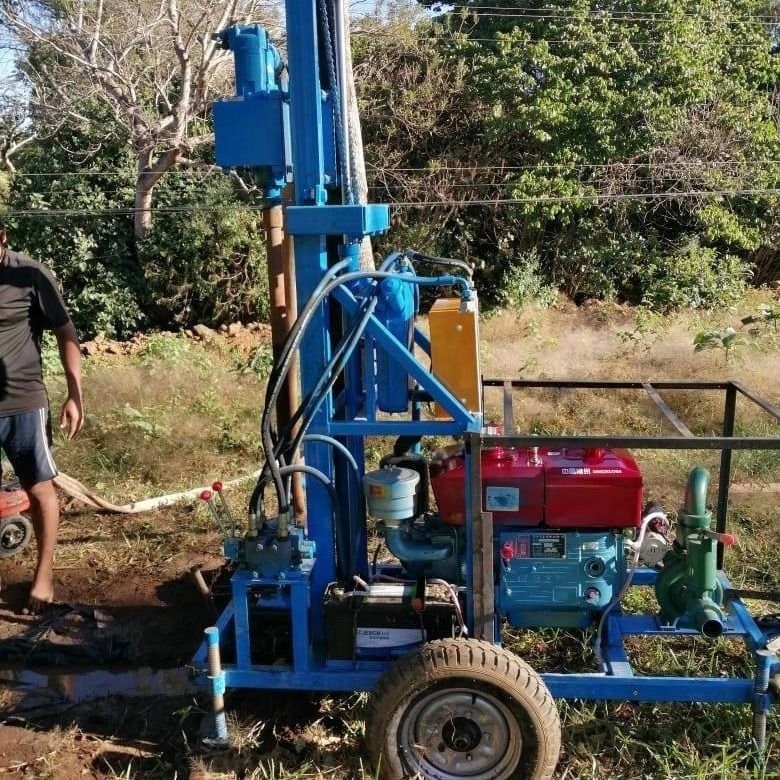

150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine 0150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine 1

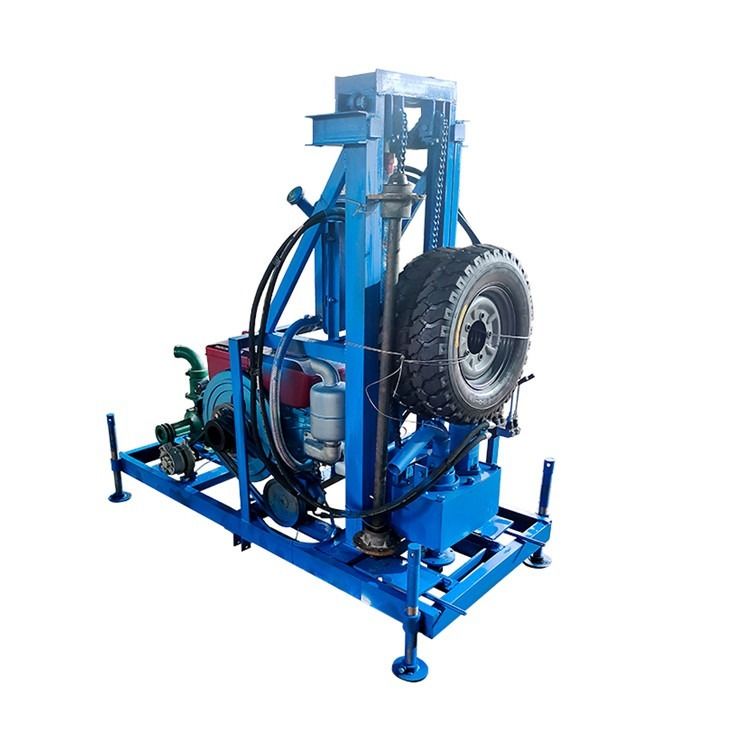

150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine 2

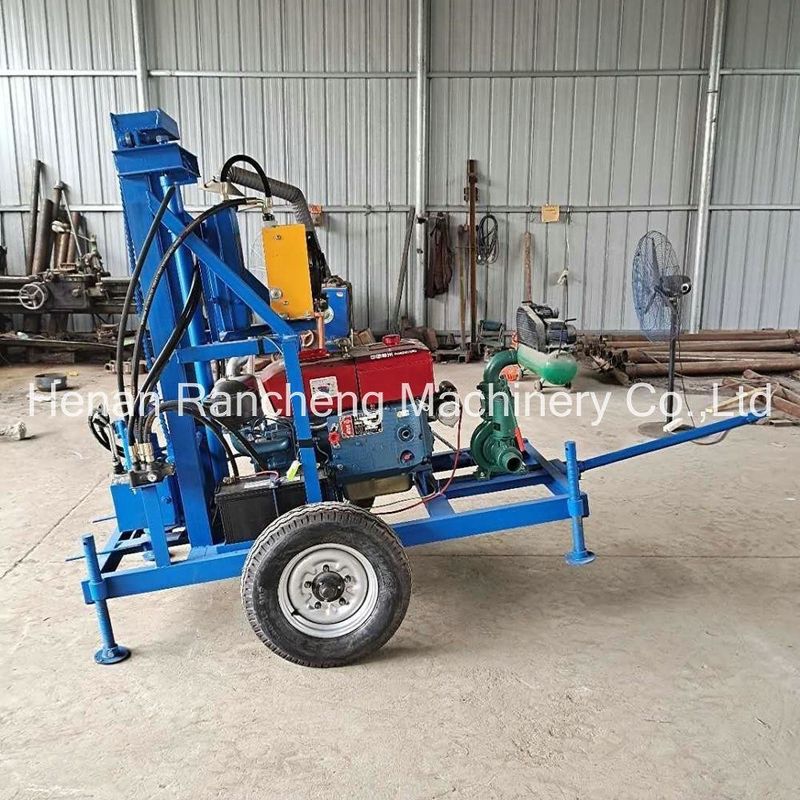

150m 16.2Kw Diesel Full Automatic Screw Thread Portable Water Well Drilling Machine 3
