Product Description

RCF150C deepwater water well drilling rig is a product independently developed by our company. This new generation of down-the-hole drilling rig is equipped with a stronger pneumatic power system, which plays a key role in improving the drilling speed.

The equipment adopts the latest model configuration and advanced hydraulic technology, which not only has low energy consumption and large rotation torque, but also is very convenient to adjust the hole deviation. Made of high-quality materials and with a stylish and compact appearance, our drilling rigs have higher operating efficiency and lower failure rate. They are economical and durable, and have excellent overall cost performance. These water well drilling rigs have been tested in the market and have received positive feedback from most customers.

Technical Parameters

Product advantages

This equipment has many outstanding advantages. First of all, it is small in size and light in weight, and it is easy to install. The equipment mainly consists of three parts: the main engine, the pump station and the control console.

Its application scenarios are very flexible. It can be directly put into production in the original transportation and exploration tunnels to protect the overall structure of the mine to the greatest extent; it can also perform 0-90 degree drilling operations on the ground. The drilling rig has a flexible layout, and the drill rod adopts a mechanized unscrewing method, which greatly reduces the labor intensity of workers and significantly improves work efficiency.

The equipment adopts a box-type feed frame, which completes the drilling work by clamping the claws and rotating the power head. The drilling tool is pulled by the cylinder, and the heavy and large drilling rig equipment is no longer required. At the same time, the equipment has a linkage function, which is centrally controlled by the control console, which is simple and safe to operate, and also supports stepless adjustment. In addition, with the hollow shaft design, the length of the drill rod is no longer limited by the drilling rig stroke, and 360° inclined drilling can be achieved at any angle.

Application:

RCF150C 150m small water well drilling machine mainly used for drilling in resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.

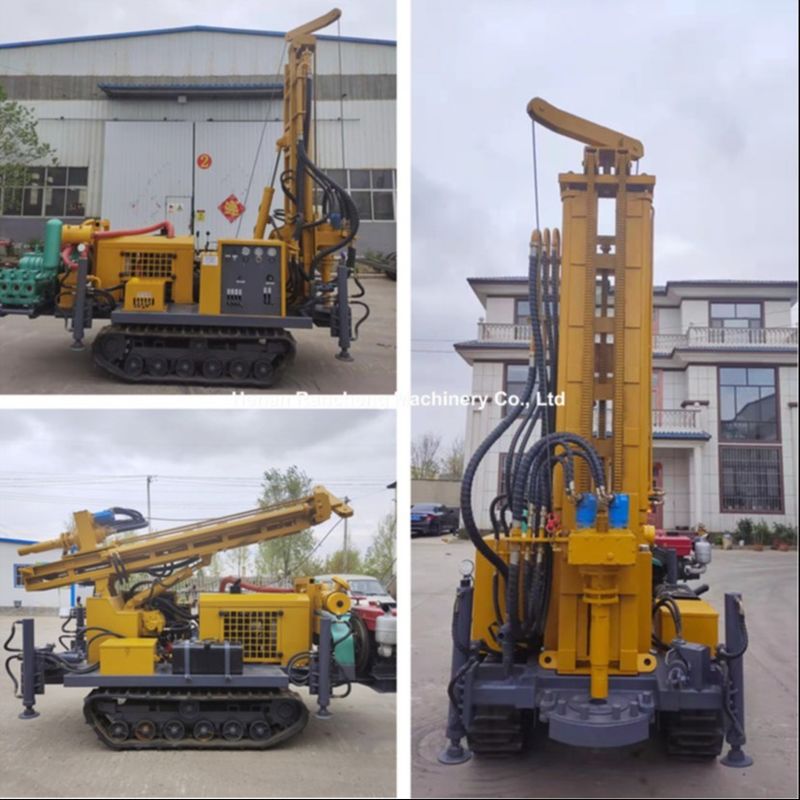

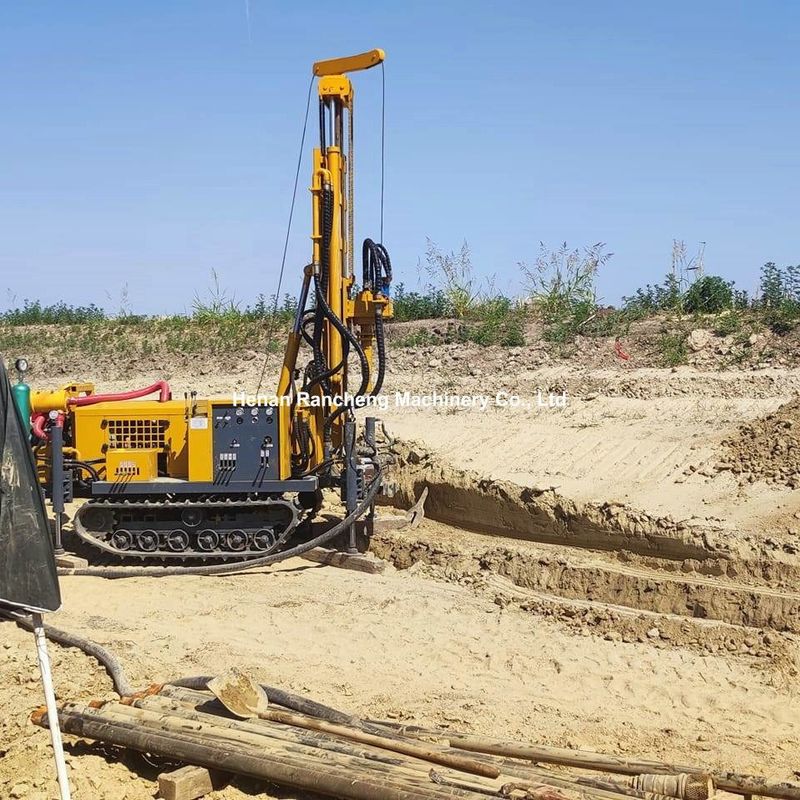

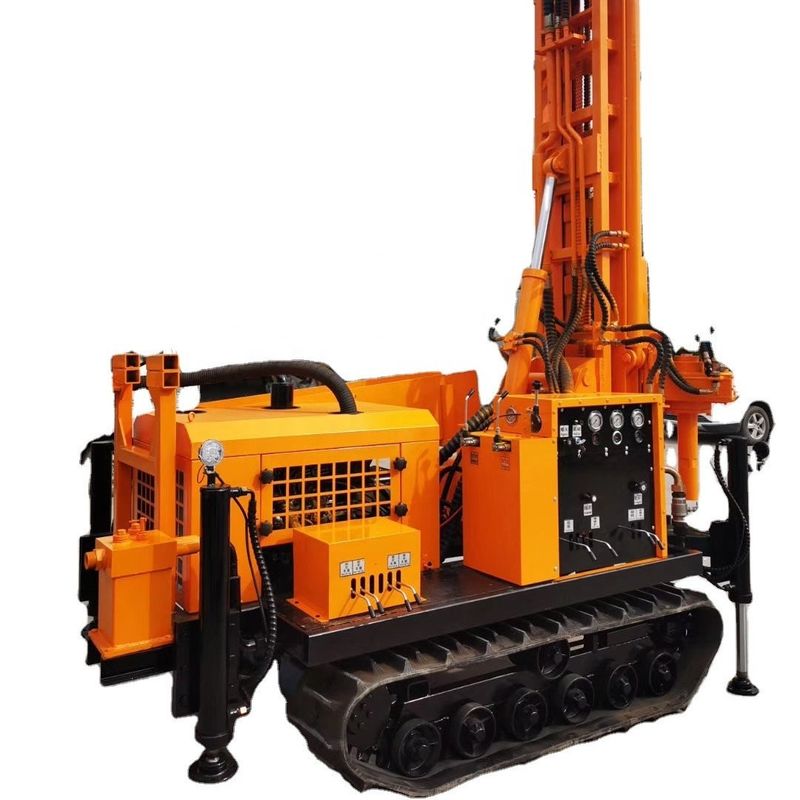

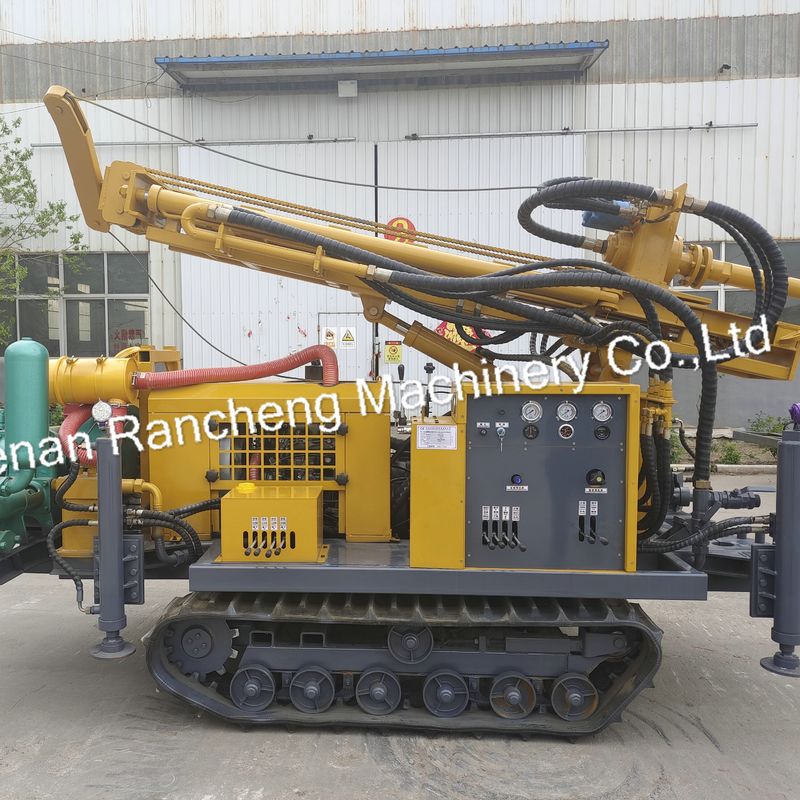

Machine pictures
