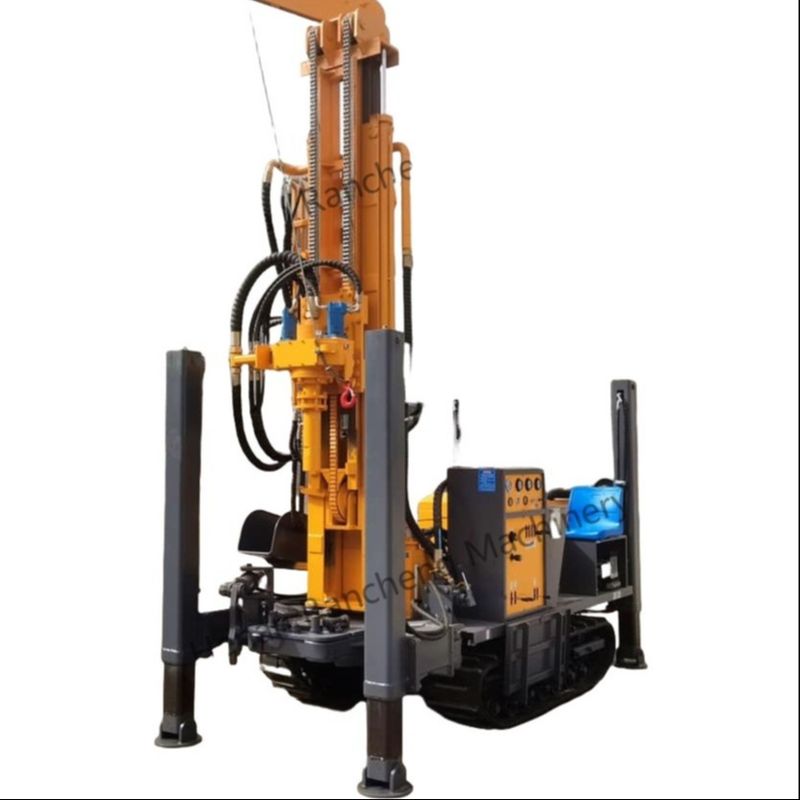

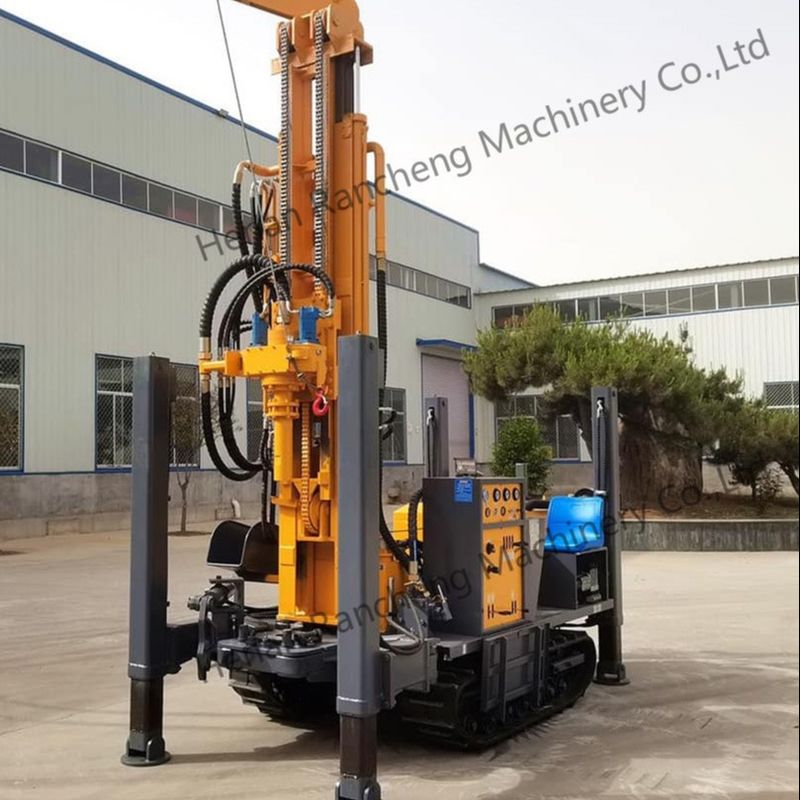

Name: 280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF280C
Price: 35,000.00 USD
Availability: InStock

Home > products > Water Well Drilling Machine >

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

280m water well drilling rig

diesel hydraulic drilling rig

7000-9000Nm torque drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF280C

Request A Quote

Product Details

Name:

Full Hydraulic Water Well Drilling Machine

Model:

RCF280C

Bore Depth:

280m

Bore Diameter（hammer）:

100-350mm

Pipe Diameter:

89mm/102mm

Pipe Length:

3m/6m

Max Torque Of Rotary:

7000-9000Nm

Diesel Engine:

75KW Yuchai Engine

Highlight:

280m water well drilling rig

diesel hydraulic drilling rig

7000-9000Nm torque drilling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD30000-USD40000

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

Get Best Price

Video

800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

Get Best Price

Video

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

Get Best Price

Video

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation

Get Best Price

Contact Now

Product Description

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

Product Attributes

Name	Full Hydraulic Water Well Drilling Machine
Model	RCF280C
Bore Depth	280m
Bore diameter (hammer)	100-350mm
Pipe diameter	89mm/102mm
Pipe length	3m/6m
Max torque of rotary	7000-9000Nm
Diesel engine	75KW Yuchai engine

Product Description

The RCF280C deepwater drilling rig is a product independently developed by our company. This new generation of deepwater (DTH) drilling rig plays a key role in improving drilling speed and gas efficiency.

The drilling rig adopts the latest model and advanced hydraulic technology, with the characteristics of:

Low energy consumption
High torque
Anti-deflection
High-quality materials
Smooth and compact shape
Higher efficiency
Lower failure rate
Economical and durable
High cost performance

Our company's deepwater drilling rig has won wide acclaim in the market and received positive feedback from many customers.

Technical Parameters

Model	RCF280C
Bore diameter (Hammer)	100-350mm
Bore depth	280m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	89mm/102mm
Pipe length	3m/6m
Lifting force	18T
Lifting speed	3m/min
Feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	7000-9000Nm
Rotary speed	40-70r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	4100×1900×2600mm
Weight	7000Kg
Diesel engine	70KW Yuchai engine
