800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

800m deep water well drilling rig

hydraulic crawler drilling rig

154KW Cummins drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Contact Us
Request A Quote
800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine
800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine
Product Details
Name:
Water Well Drilling Machine
Model:
RCF800C
Geology Drilled:
All Kind
Drill System And Operation:
Hydraulic
Max Hole Depth:
800m
Hole Diameter:
140-500mm
Diesel Engine:
154KW Cummins
Dimension:
6300×2300×2650mm
Highlight:

800m deep water well drilling rig

,

hydraulic crawler drilling rig

,

154KW Cummins drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD60000-USD70000
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine online Video

RCF150S Water Well Drilling Machine with 42kW Yunnei Diesel Engine

Get Best Price
Good price 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine online Video

800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine

Get Best Price
Good price 280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power online Video

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

Get Best Price
Good price 280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation online Video

280m Diesel Hydraulic Water Well Drilling Rig CE/ISO Certified for Irrigation

Get Best Price
Contact Us
Contact Now
Product Description
800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine
Product Specifications
Attribute Value
Name Water Well Drilling Machine
Model RCF800C
Geology Drilled All kind
Drill System and Operation Hydraulic
Max Hole Depth 800m
Hole Diameter 140-500mm
Diesel Engine 154KW Cummins
Dimension 6300×2300×2650mm
Machine Introduction

The RCF800C water well drilling rig is equipped with intelligent hydraulic dual-pump drive technology. This automatically adjusts the power mode to the working conditions and significantly optimizes energy utilization while ensuring excellent drilling performance.

The rig features a fully hydraulic crawler track combined with a special alloy-reinforced chassis structure. This provides excellent environmental adaptability and an extremely long service life, making it particularly suitable for exploration missions in harsh geological conditions such as those found in the mountains and the Gobi Desert.

Technical Specifications
Specification Details
Model RC800C
Drilling way Both mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Diesel engine 154KW Cummins
Max hole depth 800m
Hole diameter 140-500mm
Air consumption 17-42m³/min
Length of drilling pipe 1m/2m/3m/6m
Diameter of drilling pipe 102/108/114mm
Total Weight 13ton
Dimension (L * W * H) 6300×2300×2650mm

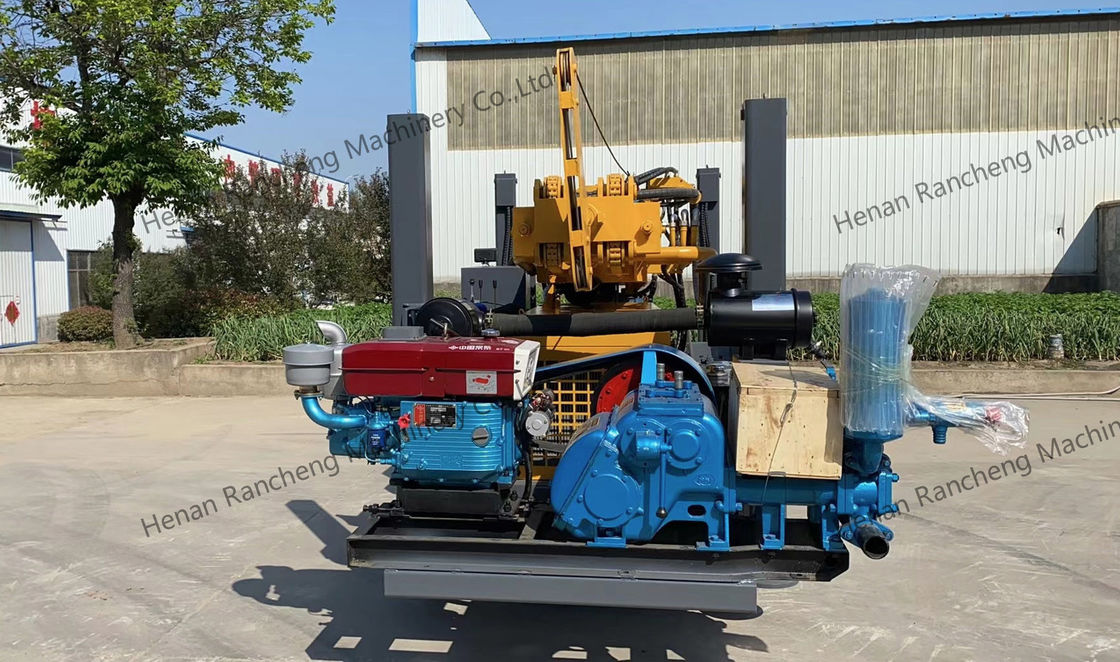

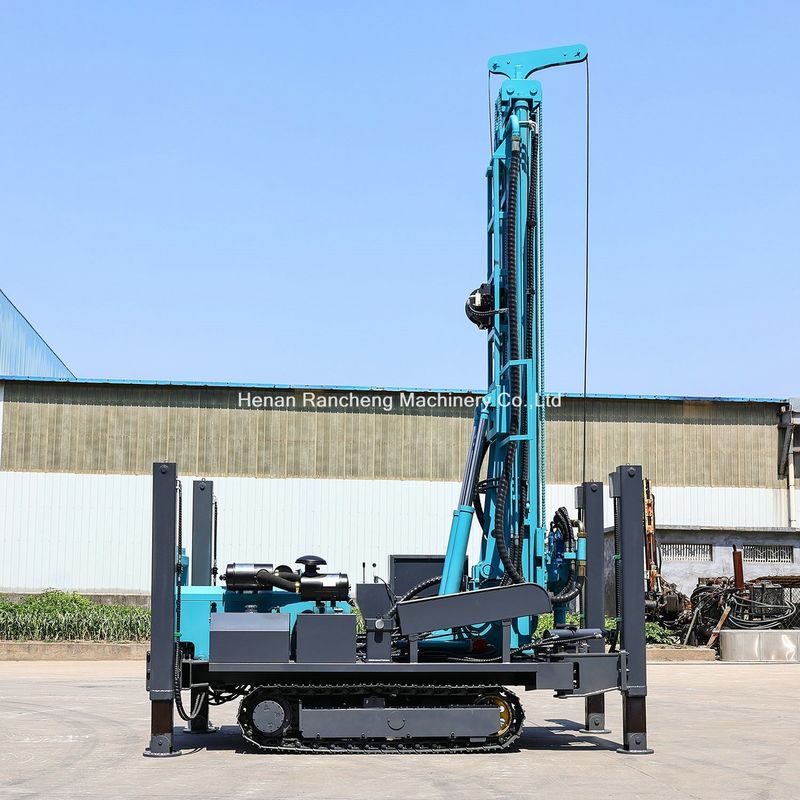

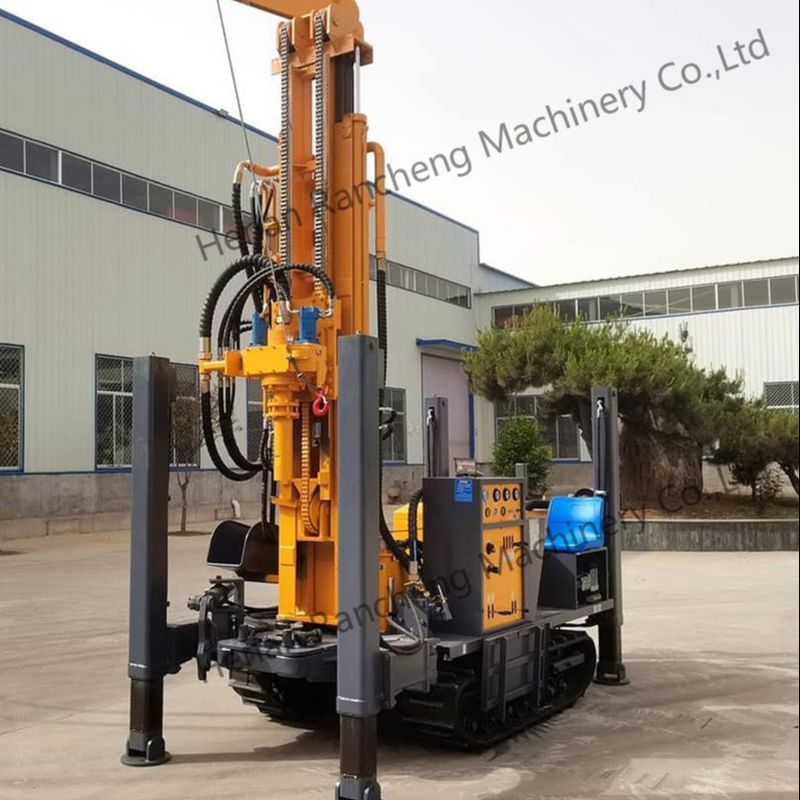

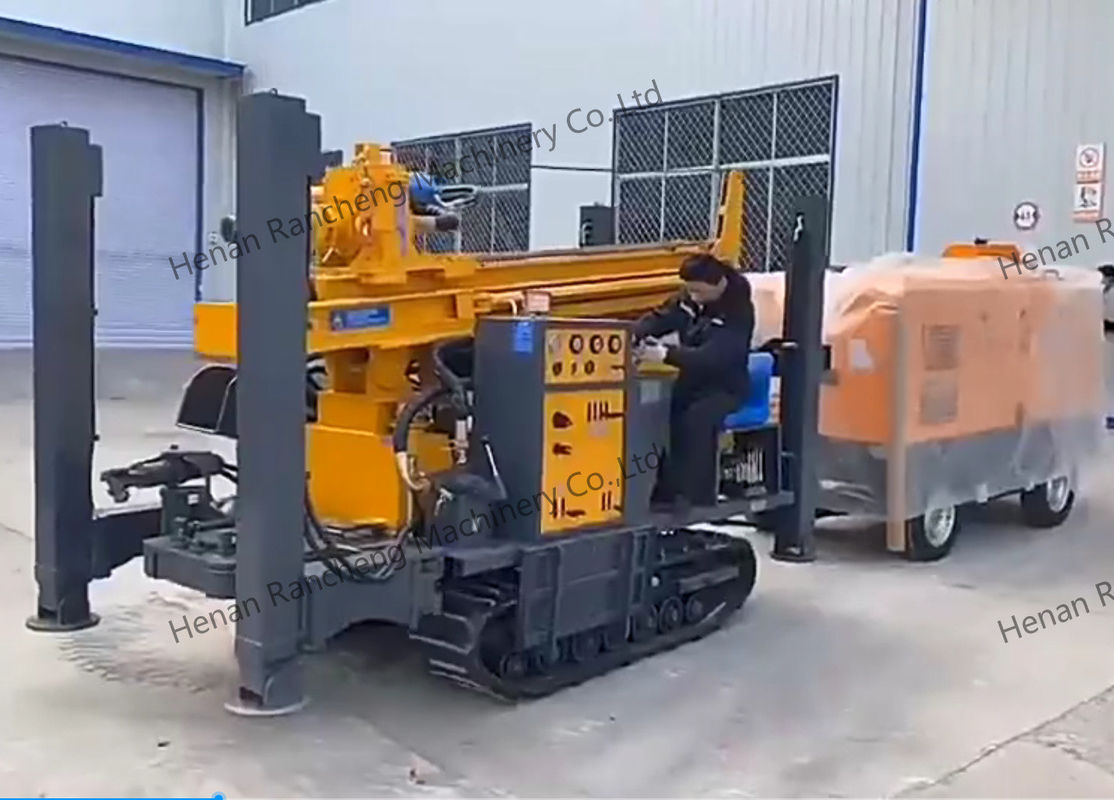

Machine Gallery
800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 0 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 1 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 2 800m Deep Hydraulic Crawler Water Well Drilling Rig with 154KW Cummins Engine 3
Key Features
  • Hydraulic crawler track for superior mobility
  • Alloy-reinforced chassis for durability
  • Intelligent hydraulic dual-pump drive technology
  • 154KW Cummins diesel engine for powerful performance
  • 800m maximum drilling depth capability
  • Adaptable to various geological conditions
