8600kg Water Well Drilling Machine Full Hydraulic Operation With 350m Depth

350m Water Well Drilling Machine

Hydraulic Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Request A Quote

Product Details

Dimension(L*W*H):

6000×2000×2550mm

Hoist Lifting Capacity:

Lifting Force:

22T

Weight:

8600kg

Drilling Way:

Air Compressor Drilling Or Mud Pump Drilling

Operating System:

Full Hydraulic Operation

Feeding Speed:

0.5-5m/min

Highlight:

350m Water Well Drilling Machine

Hydraulic Water Well Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Get Best Price

Video

RCF800C Water Well Drilling Machine With Precise Angle Adjustment

Get Best Price

Video

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Get Best Price

Video

Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine

Get Best Price

Contact Now

Product Description

8600kg Water Well Drilling Machine Full Hydraulic Operation With 350m Depth

Product Description

RCF350C has a maximum drilling depth of 350 meters and a drilling capacity of 350 mm. Its advanced hydraulic system and top drive drill bit provide high torque and smooth operation in harsh working conditions. This drill rig is compact and durable, ensuring stable and efficient drilling with low maintenance costs. It is an ideal choice for water wells, geothermal applications and mining. It is the trusted choice of professional drillers around the world!

Technical Parameters

Model	RCF350C
Bore diameter(Hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	6200-8500Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
Weight	8600Kg
Diesel engine	91KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling
Operating system	Full hydraulic operation

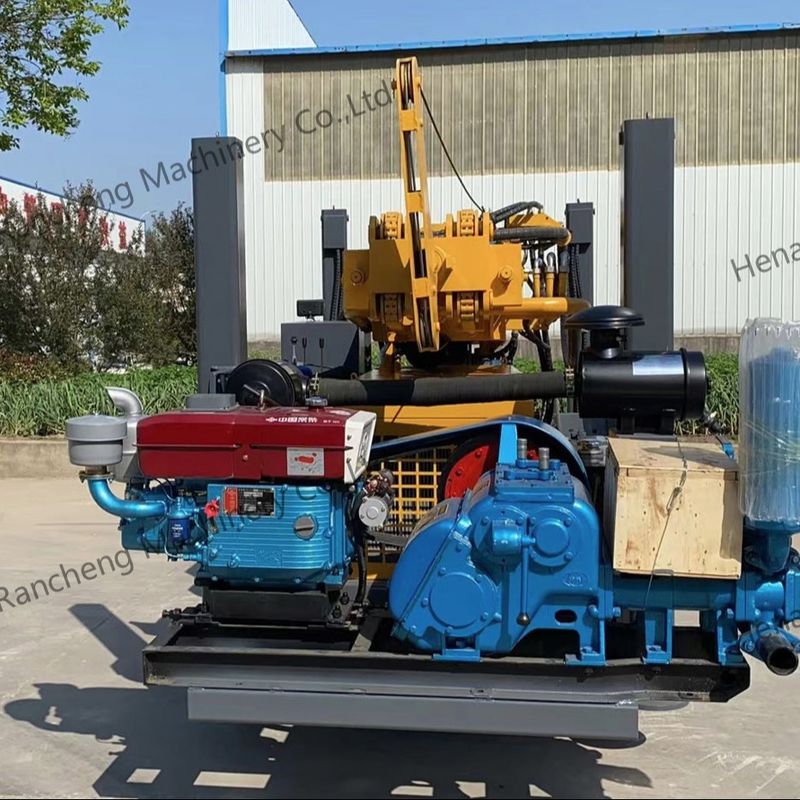

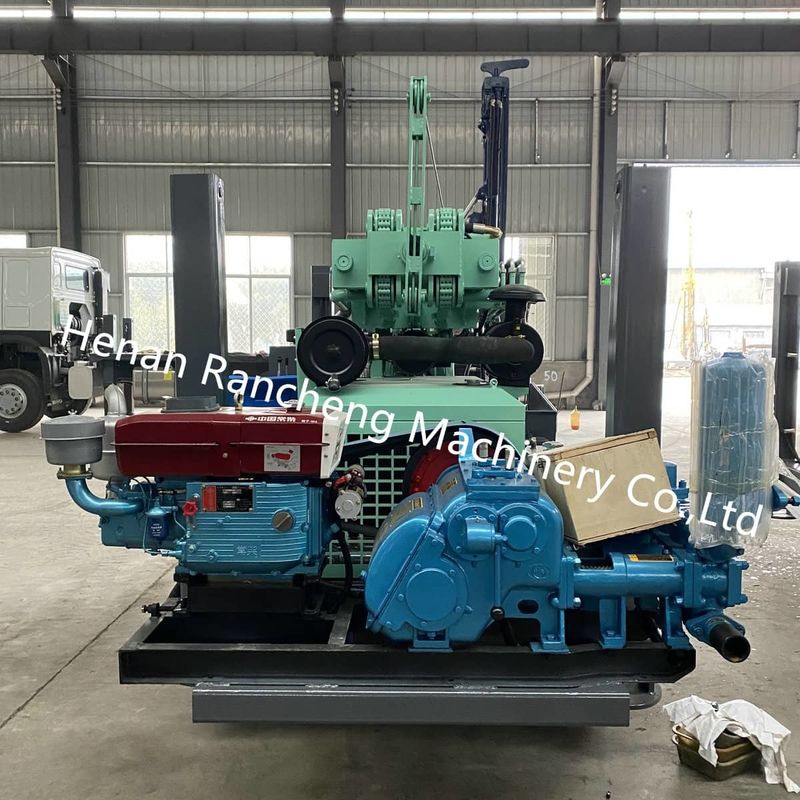

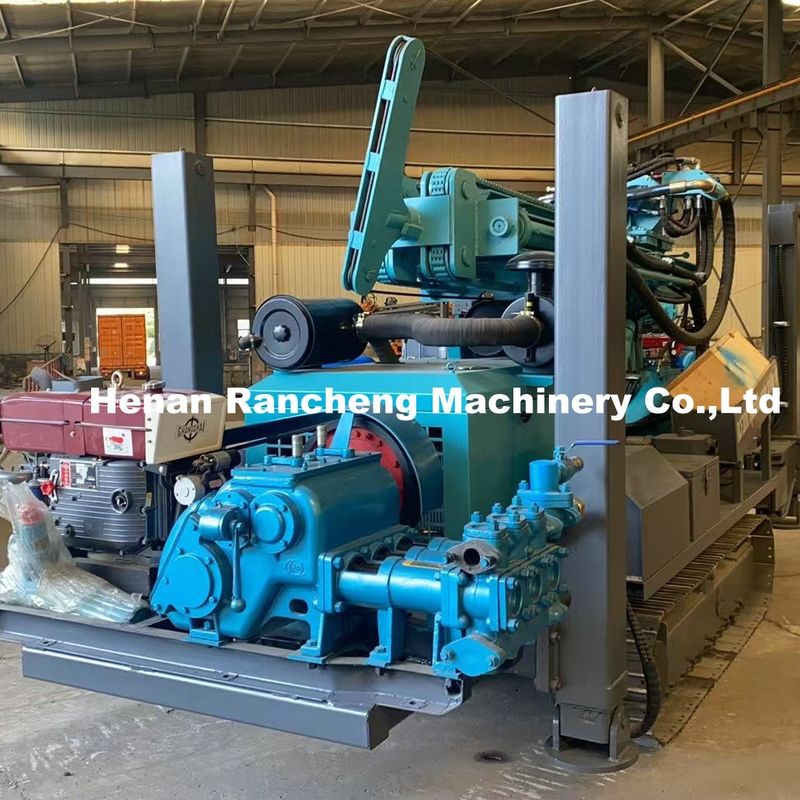

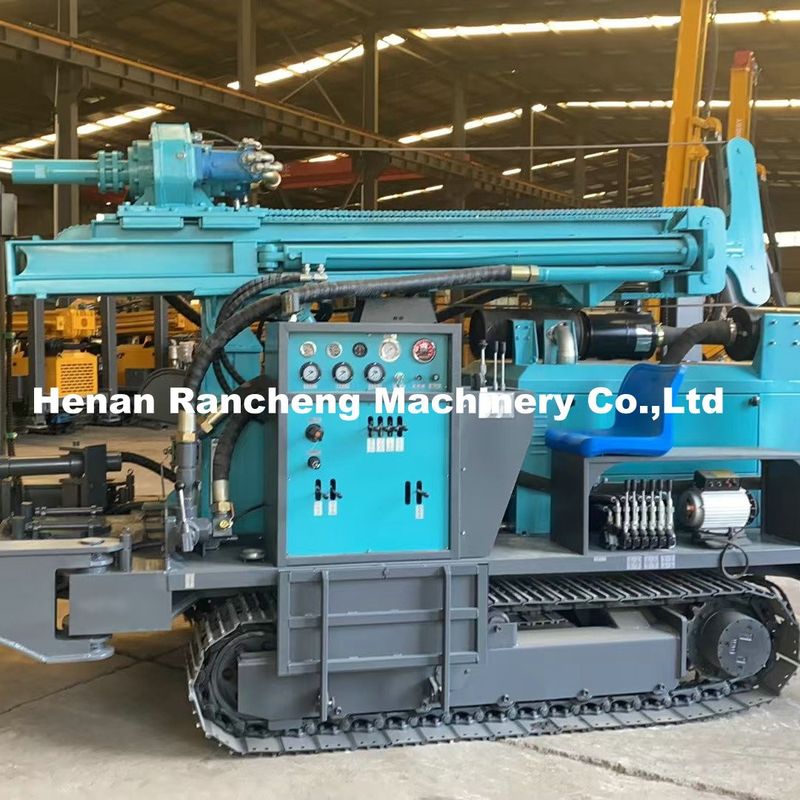

Machine picture display

8600kg Water Well Drilling Machine Full Hydraulic Operation With 350m Depth 6
