High-Precision Submersible Intelligent Water Level Gauge For Liquid Water Tanks And Well Sensors
Product Description
The steel ruler water level gauge produced by Henan Rancheng Machinery Co., Ltd. is a precision instrument designed specifically for measuring water levels in wells, boreholes, and water pipes. It is especially suitable for groundwater monitoring in hydropower projects or earth dams. The device uses a stainless steel cable (upgraded version), which is more durable than traditional copper cables and can work reliably even in low-conductivity liquids.
The instrument consists of an underground component (water level tube and bottom cover) and a ground module (including probe, steel ruler cable, receiver and reel). When the probe touches the water surface, it will provide synchronous feedback through sound signals, indicator lights and voltmeters to ensure accurate readings. It offers a variety of models to choose from, covering a measurement depth of 30 meters to 500 meters, with a repeatability of ±2 mm, powered by a 9-volt DC battery, and equipped with a simple maintenance guide to effectively extend the service life of the instrument.
This tool, which combines precision, adjustability and rugged design, is ideal for construction and long-term safety monitoring.
Product Specifications
| Model |
30 |
50 |
100 |
150 |
200 |
300 |
500 |
| Measuring depth |
0-30 |
0-50 |
0-100 |
0-150 |
0-200 |
0-300 |
0-500 |
| Min reading |
1 |
| Repetitive reading |
+- 2 |
| Worre pressure V |
DC=9 |
| Weight Kg |
3.5 |
4.5 |
6.5 |
10 |
12.5 |
17.5 |
27.5 |
the principle structure
1. The underground part of the material is composed of a water level measuring tube and a bottom cover (sold separately).
2. Land receiving device: steel ruler water level gauge, composed of a probe, steel ruler cable, receiving system, and coil.
3. Probe: Made of stainless steel, with waterproof contact points inside. When the contact point reaches the water surface, the receptor system is activated. When the contact point leaves the water surface, the receptor system is turned off.
4. Steel ruler cable: The steel ruler and cable are combined with plastic technology to prevent the steel ruler from rusting and simplify the operation process. Reading is more comfortable and accurate.
5. Receiving system: It consists of a speaker, a signal, and a peak signal. The buzzer beeps continuously, the indicator light is on, and the voltmeter displays the peak value.

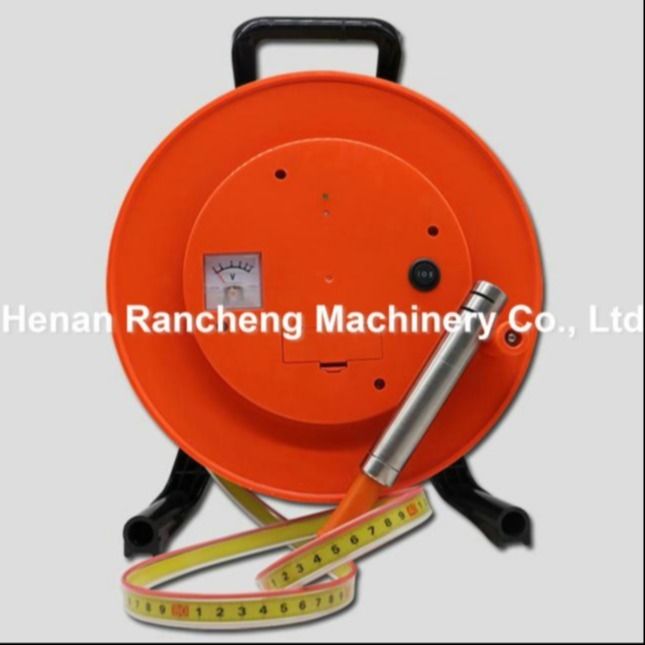

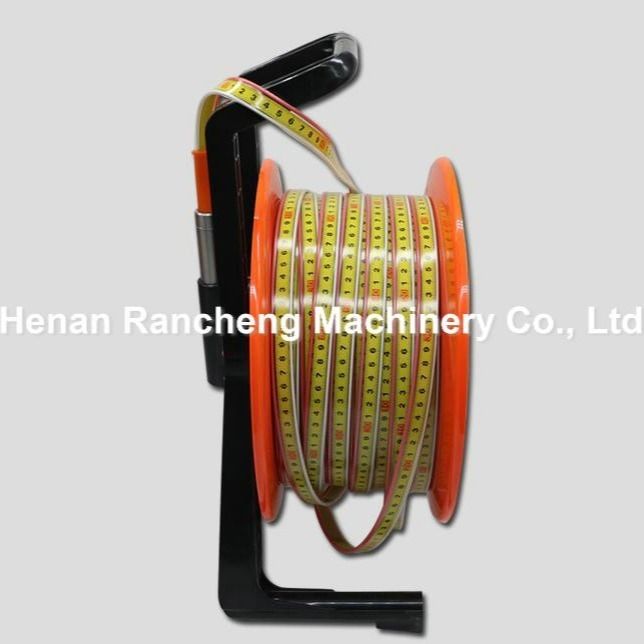

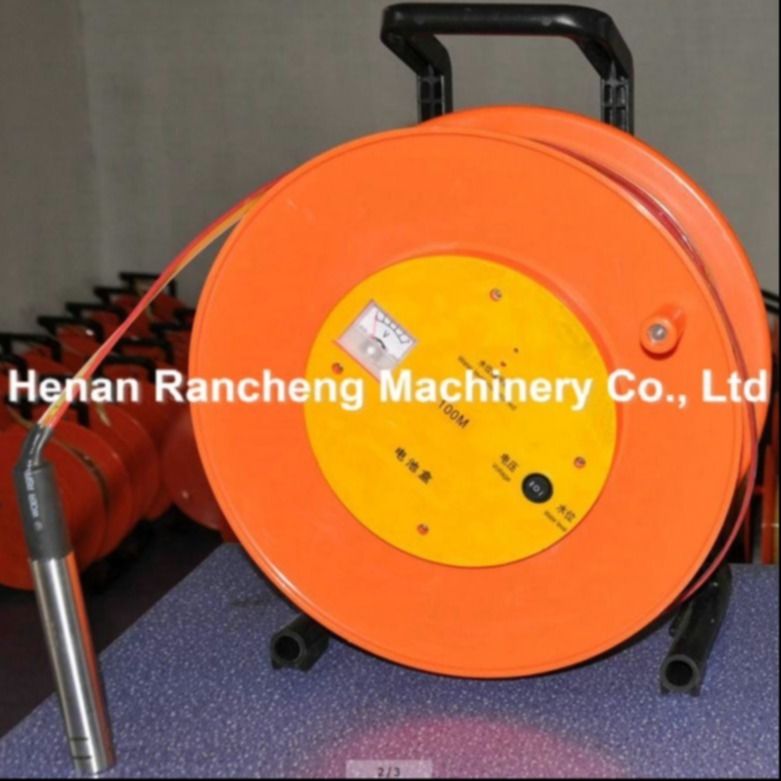

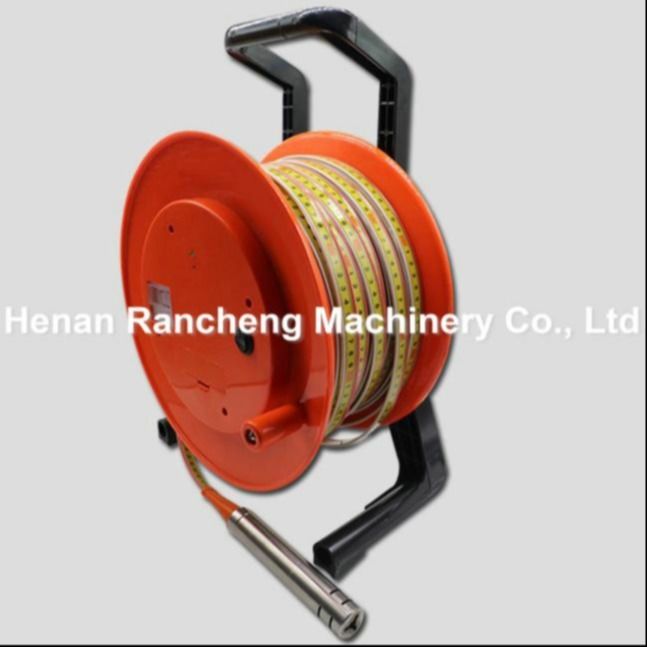

Product Image
