Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure

Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure

Hydraulic Tricycle Mounted Drilling Rig

Tricycle Mounted Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400T

Contact Us
Request A Quote
Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure
Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure
Product Details
Name:
Hydraulic Tricycle Mounted Water Well Drilling Rig
Model:
RCF400T
Aperture:
140-350mm
Drilling Depth:
400m
Feed Stroke:
6600mm
Travel Speed:
80km/h
Wind Pressure:
1.7-3.5Mpa
Air Consumption:
17-36m³/min
Highlight:

Hydraulic Tricycle Mounted Drilling Rig

,

Tricycle Mounted Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure online Video

Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure

Get Best Price
Good price 280m Depth Truck Mounted Water Well Drilling Rig 210 HP Load Vehicle Engine online Video

280m Depth Truck Mounted Water Well Drilling Rig 210 HP Load Vehicle Engine

Get Best Price
Good price Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig online Video

Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig

Get Best Price
Good price 280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig online Video

280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

Hydraulic Tricycle Mounted Water Well Drilling Rig Drill 1.7-3.5Mpa Wind Pressure



Machine Introduction



RCF400T deep well drilling rig is a new generation of drilling rig independently developed by our company. This new generation of drilling rig combines advanced pneumatic power to greatly improve the drilling speed.



Our deep well drilling rig adopts excellent design and advanced hydraulic technology, with low energy consumption, high torque, easy to guide drilling and other characteristics. The drilling rig is made of high-quality materials, with a stylish and compact appearance, higher efficiency, lower failure rate, more economical and durable, and more cost-effective. Our deep well drilling rig has received many good reviews in the market and received positive feedback from customers.



Technical Parameters



Geology drilled / All kinds
Drilling Type / DTH & Mud Rotary
Drill system and operation / Hydraulic
Hole Diameter mm Φ140—Φ350
Hole Depth m 400
Rotation Torque Nm 9600 1st Gear
4800 2nd Ger
Rotation Speed rpm 0-80 1st Gear
0-160 2nd Ger
Drill pipe diameter mm 89/114
Drill pipe length mm 4000/4500
Axial pressure T 85KN
Winch
Max. Lifting force T 20
Lifting force of the Main winch(Optional) T 4
Lifting force of hoist T 1.5
Length of the steel wire rope(tool winch) m 100
Lifting height of tool winch m 8
Engine
Diesel Engine type CUMMINS
Rated Horsepower Kw 132
Electrical System Volt 24
Compressor required
Compressor Type Rotary Screw/Movable
Pressure Required Mpa 1.05—4.5
Air consumption m³/min 16—60
Truck
Manufacturer /　 SINOTRUCK HOWO
Model / ZZ1257M5847C
Engine / WD615.93C
Rated Horsepower kw 270
Discharge Standard / EU-3
Drive type / 6*4
Max.Speed Km/h 102.9
Steering wheel / left/right(Optional)
Mud Pump
Type / Hydraulic
Model / BW450/BW850
Stroke mm 110
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2-3
Suction tube diameter mm 89
Discharge pipe diameter mm 51
Liner Diameter mm 80
Hydraulic Welder
Welding current A 60-250
Hydraulic Min.oil flow L/min 42
Norm/Max Pressure Bar 190/210
Voltage V 110/220VDC
Power Kw 1or2
L*W*H mm 390*190*230
Foam pump / Optional
Dimension
Net Weight T 22
Shipping Length mm 10500
Shipping Width mm 2480
Shipping Height mm 3050
Working size(L*W*H) mm 11000*2480*7147

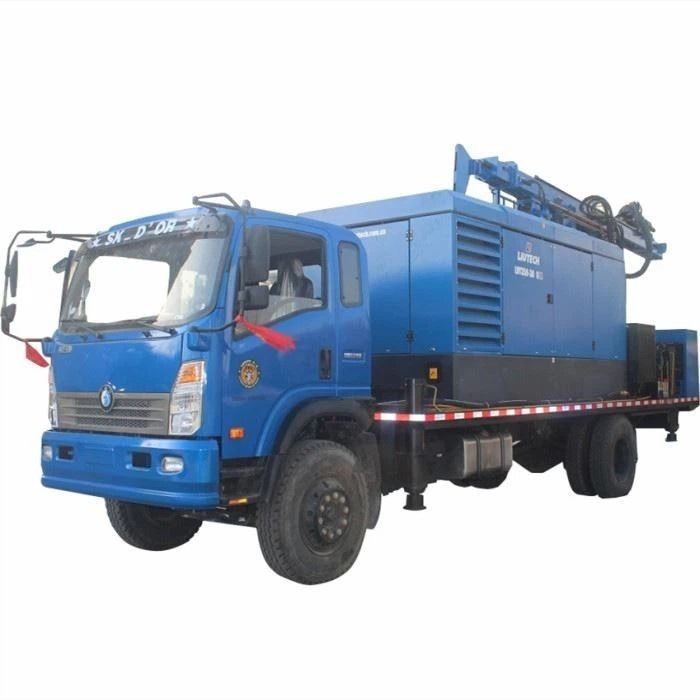

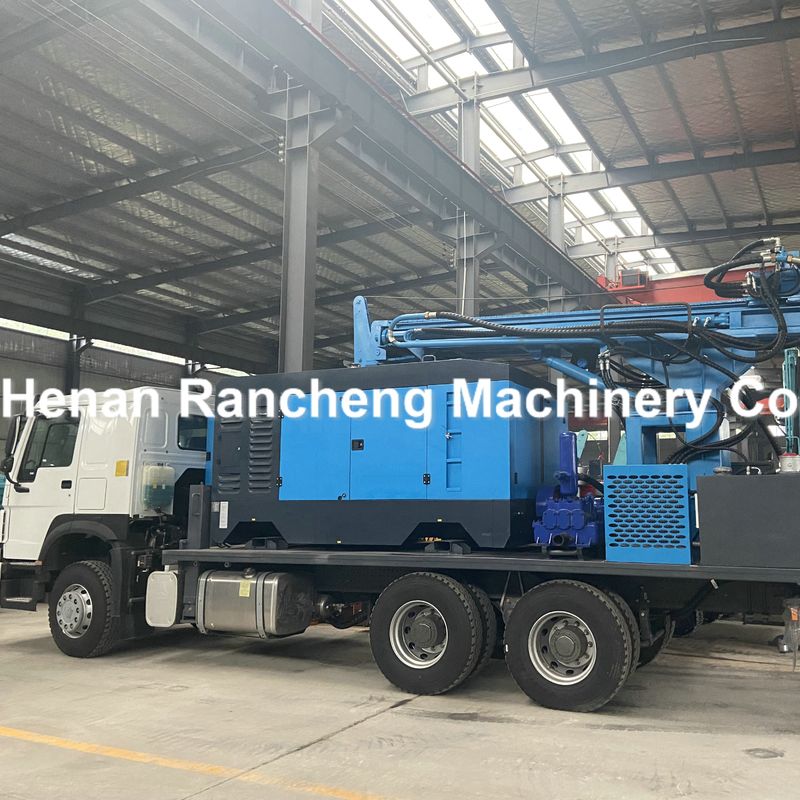

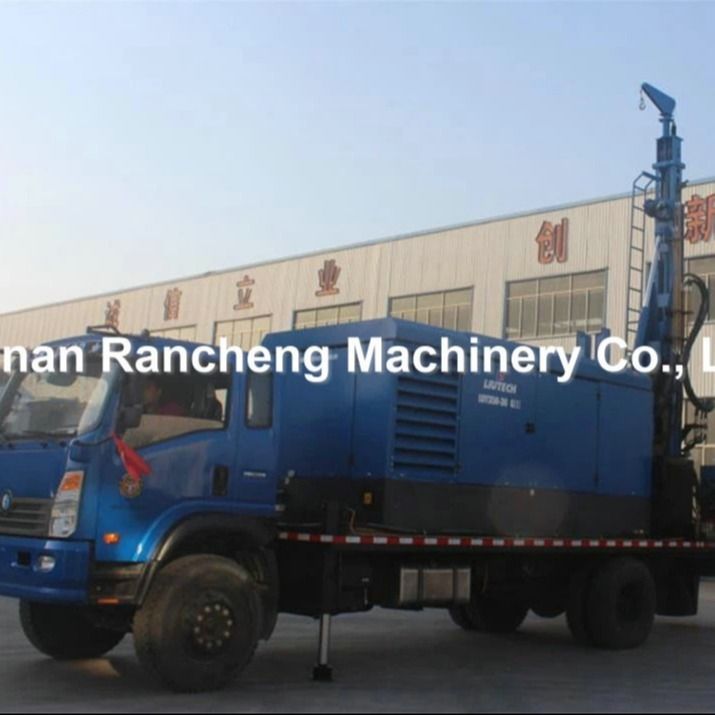

Machine Pictures



Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure 0Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure 1Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure 2Hydraulic Tricycle Mounted Water Well Drilling Rig 1.7-3.5Mpa Wind Pressure 3
