Name: Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Home > products > Water Well Drilling Machine >

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Hydraulic Crawler Core Drilling Rig

Core Drilling Rig 800m Deep

Multifunctional Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All Kind

Drill System And Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Highlight:

Hydraulic Crawler Core Drilling Rig

Core Drilling Rig 800m Deep

Multifunctional Core Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Get Best Price

Video

RCF800C Water Well Drilling Machine With Precise Angle Adjustment

Get Best Price

Video

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Get Best Price

Video

Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine

Get Best Price

Contact Now

Product Description

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Machine Introduction

The RCF800C water well drilling rig adopts an advanced dual-oil pump hydraulic system and intelligently switches between single-pump and dual-pump working modes, which greatly reduces energy consumption and improves operating efficiency while ensuring efficient drilling. This fully hydraulic crawler drilling rig is equipped with a high-strength steel chassis with excellent wear resistance, and is particularly suitable for long-term exploration operations in complex terrain. Its ultra-deep drilling capacity of 800 meters can easily meet the needs of deep water well development, while taking into account applications in professional fields such as geological coring and mineral exploration. The innovative hydraulic design not only supports vertical drilling, but also achieves precise angle adjustment, completing inclined hole construction within the range of 0-90 degrees, meeting the needs of a variety of engineering scenarios.

Specification

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

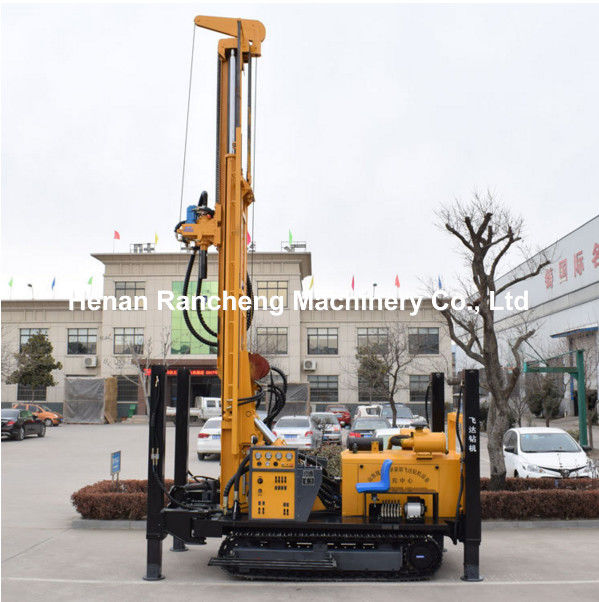

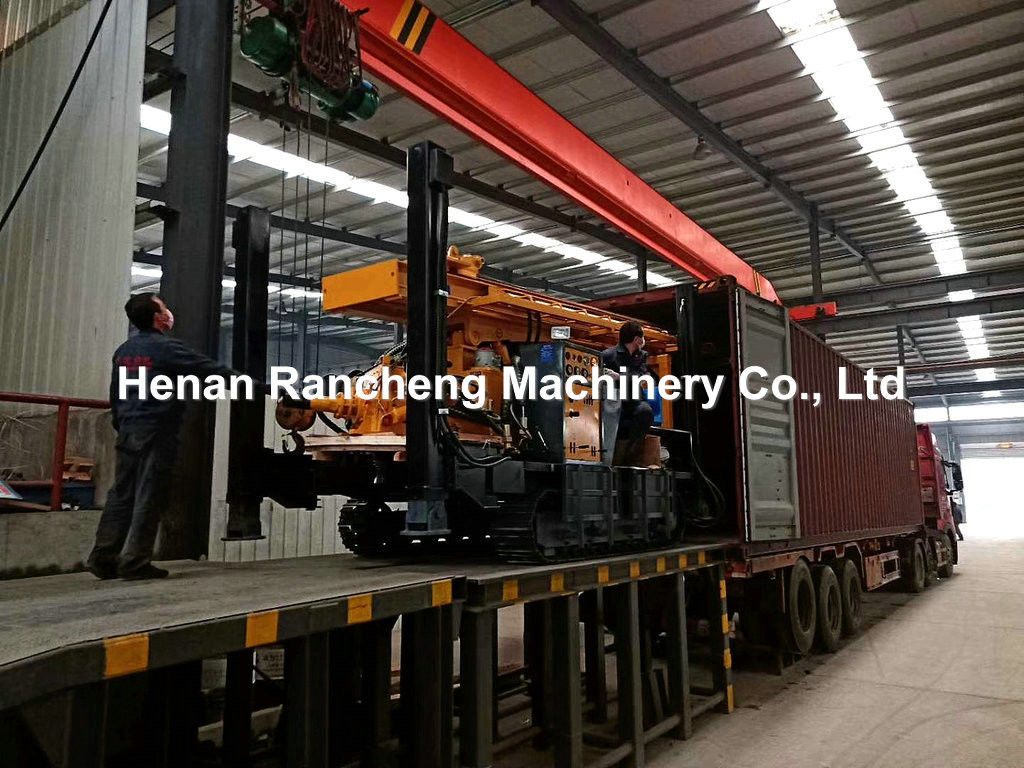

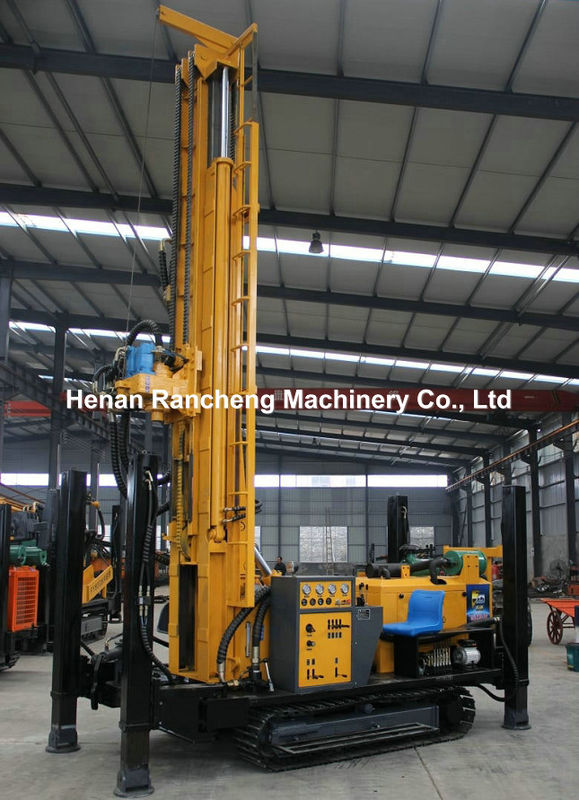

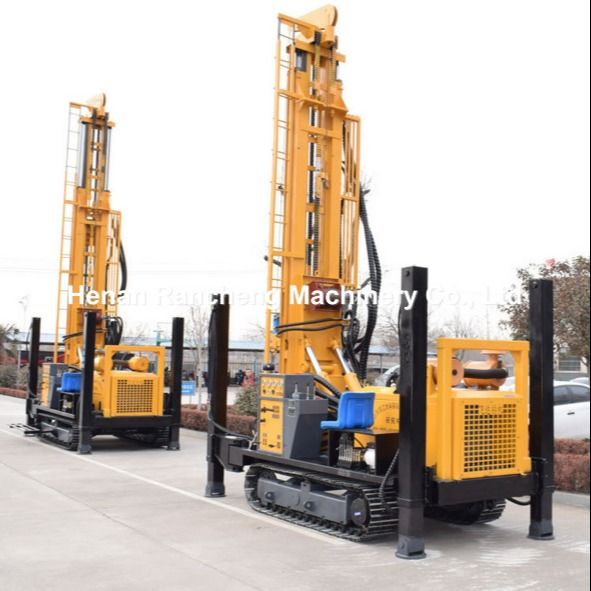

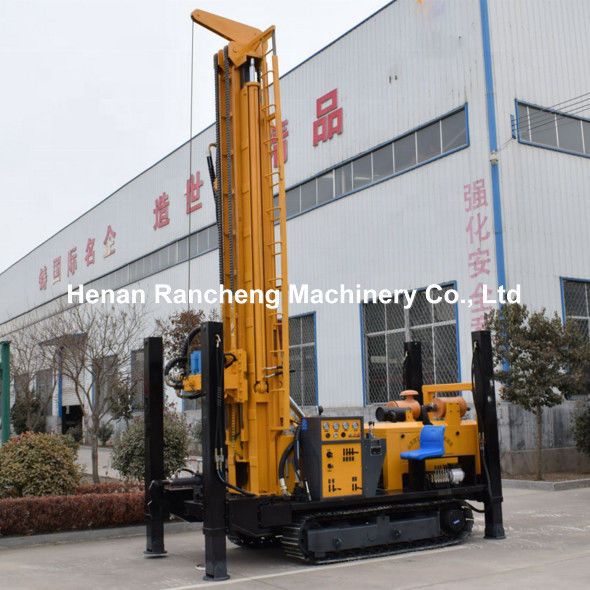

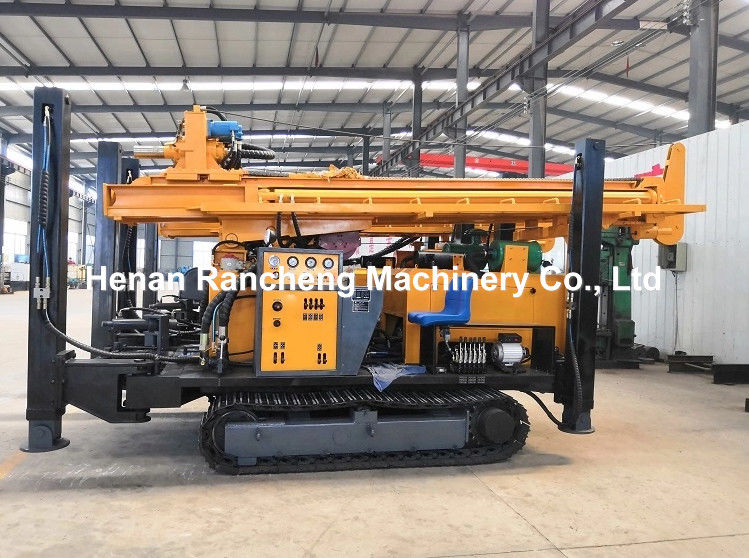

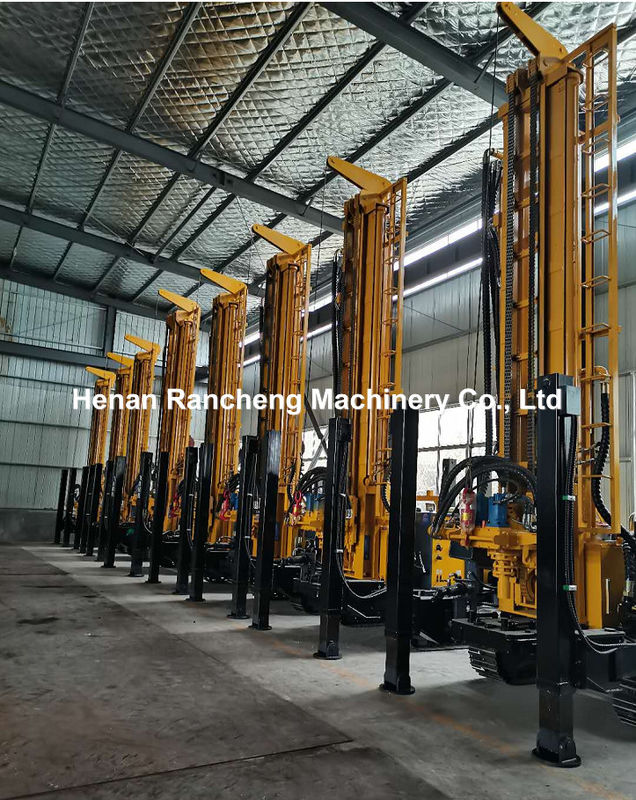

Machine Pictures

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig 0
