RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine

RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine

350m Pneumatic Drilling Rig

DTH Pneumatic Drilling Rig

Water Well Pneumatic Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine
RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine
Product Details
Model:
RCF350C
Bore Diameter:
140-350mm
Bore Depth:
350m
Air Consumption:
17-35m³/min
Air Pressure:
1.7-3.5Mpa
Pipe Diameter:
89mm/102mm
Pipe Length:
1m/2m/3m/6m
Highlight:

350m Pneumatic Drilling Rig

,

DTH Pneumatic Drilling Rig

,

Water Well Pneumatic Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD32000-USD36000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig online Video

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Get Best Price
Good price RCF800C Water Well Drilling Machine With Precise Angle Adjustment online Video

RCF800C Water Well Drilling Machine With Precise Angle Adjustment

Get Best Price
Good price 350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig online Video

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Get Best Price
Good price Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine online Video

Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine

Get Best Price
Contact Us
Contact Now
Product Description

RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine Prices For Sale

Product Description


RCF350C deep well drilling rig is our self-developed product. Made of high-quality materials and stylish and compact design, our drilling rigs are more efficient, less prone to failure, more economical and durable, and have a high overall cost performance.



This new generation of down-the-hole hammer combines higher pneumatic power, plays an important role in increasing drilling speed, has been recognized by the market and most customers have given positive feedback.



Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation




Application



The water well drilling rig adopts the latest model and advanced hydraulic technology, with the characteristics of low consumption, large torque and convenient rotation. It is mainly used for drilling of hydrological wells, civil water wells, agricultural irrigation projects, etc.



After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

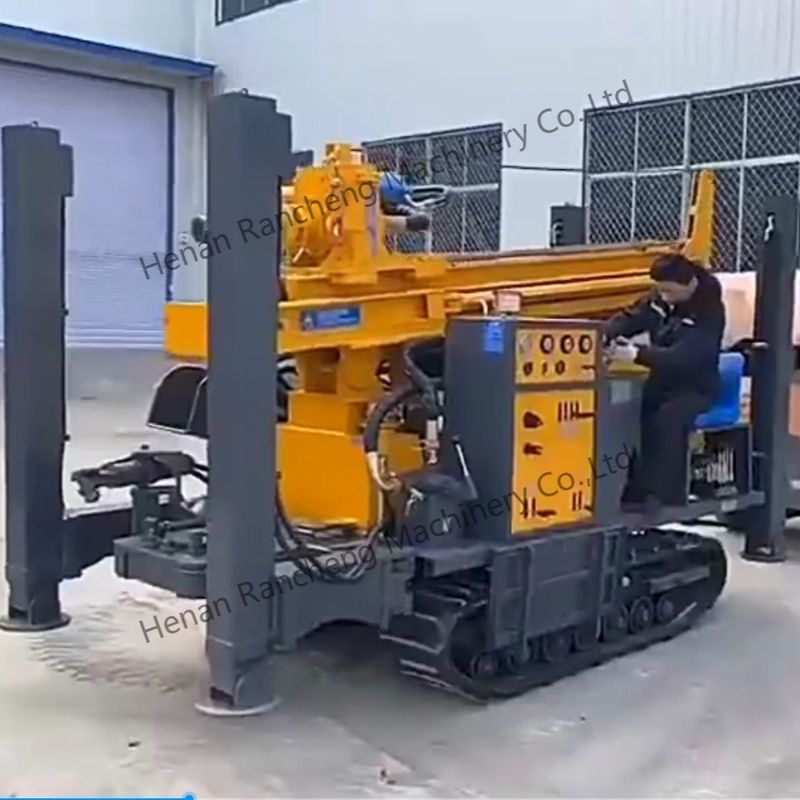

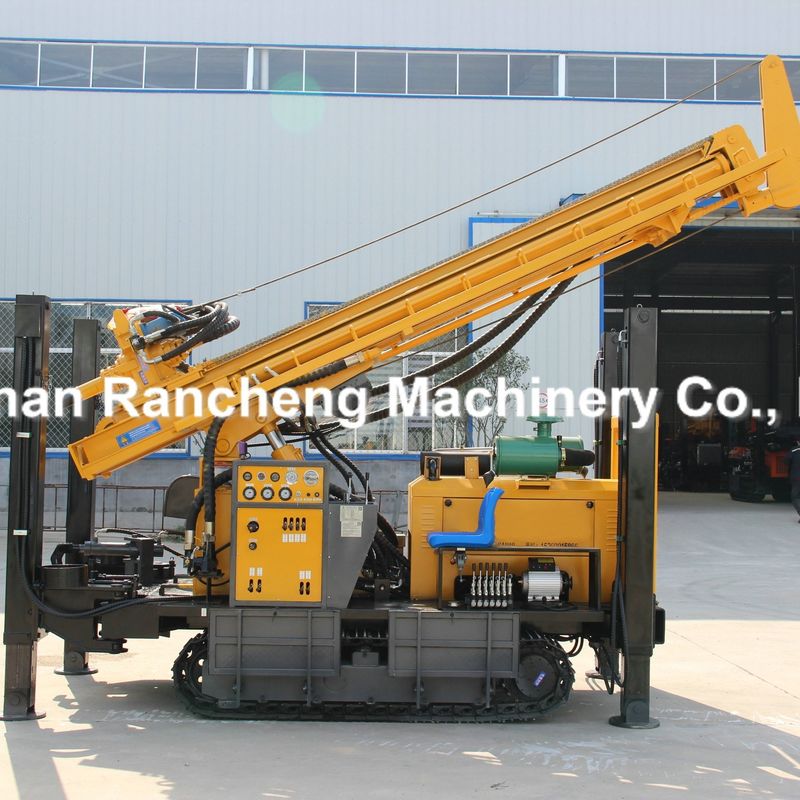

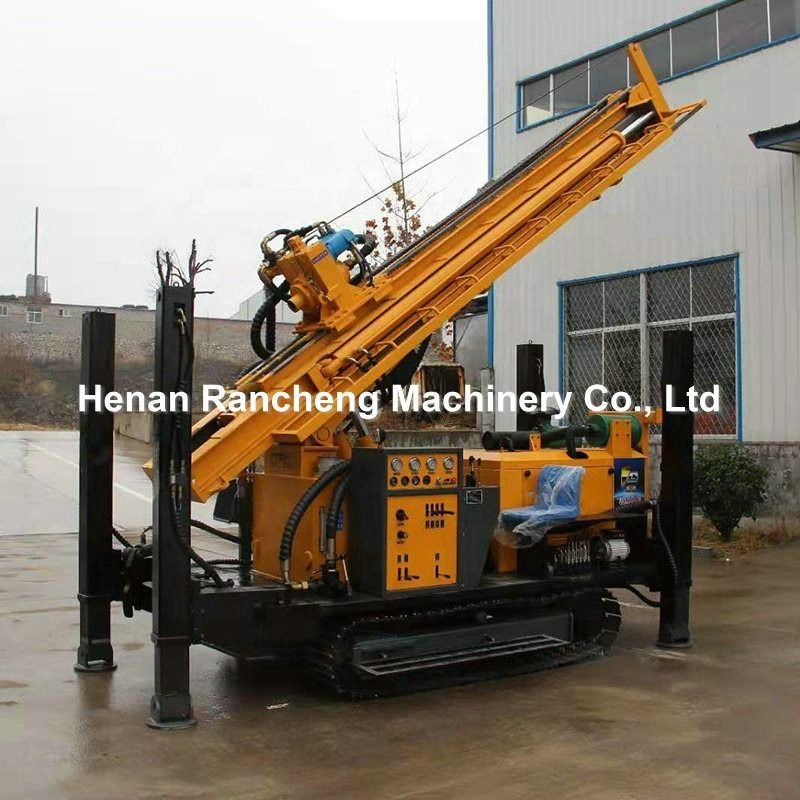

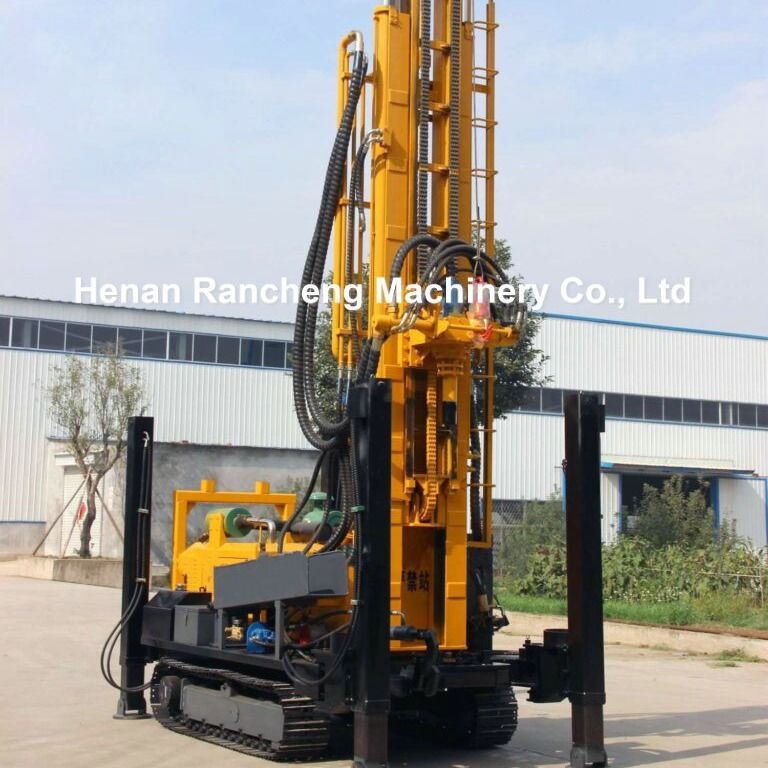

Machine picture display

RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine 0RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine 1
RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine 2
RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine 3
RCF350C 350m DTH Deep Borehole Pneumatic Water Well Drilling Rig Machine 4
