Water Well Drilling Machine for Deep Borehole DTH Drilling with 350m Depth

Borehole Water Well Drilling Machine

350m Water Well Drilling Machine

DTH Borehole Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Request A Quote

Product Details

Dimension(L*W*H):

6000×2000×2550mm

Hoist Lifting Capacity:

Lifting Force:

22T

Weight:

8600kg

Drilling Way:

Air Compressor Drilling Or Mud Pump Drilling

Operating System:

Full Hydraulic Operation

Feeding Speed:

0.5-5m/min

Highlight:

Borehole Water Well Drilling Machine

350m Water Well Drilling Machine

DTH Borehole Water Well Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Multifunctional 800m Deep Hydraulic Crawler Core Drilling Rig

Get Best Price

Video

RCF800C Water Well Drilling Machine With Precise Angle Adjustment

Get Best Price

Video

350m Crawler Mounted Water Well Drilling Rig Machine Borehole Pneumatic Water Drilling Rig Machine Well Drilling Rig

Get Best Price

Video

Develop Water Resources Conduct Core Sampling RCF800C Water Well Drilling Machine

Get Best Price

Contact Now

Product Description

Water Well Drilling Machine for Deep Borehole DTH Drilling with 350m Depth

Product Description

The RCF350C delivers a maximum depth of 350m and a drilling capacity of 350mm in diameter. Its advanced hydraulic system and top-drive power head provide high torque and smooth operation for challenging conditions. Compact yet robust, it ensures stable and efficient drilling with low maintenance—suitable for water wells, geothermal applications, and mining. It is a reliable choice for professional drillers worldwide!

Technical Parameters

Model	RCF350C
Bore diameter(Hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	6200-8500Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
Weight	8600Kg
Diesel engine	91KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling
Operating system	Full hydraulic operation

After service

1,24/7 service by chat online and phone.

2,Lifelong and free technical support.

3,Service overseas: if you need, we can dispatch an engineer to your door.

FAQ

Q:Are you the manufacturer?

A: Yes, we are the factory with more than 10 years of manufacturing experience.

Q:What is the warranty of our machine?

A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.

Q: How long is your delivery time?

A: About 10-15 work days after receipt of the payment.

Q:How do you make our business long-term and good relationship?

A:We keep good quality and competitive price to ensure our customers benefits;

Q:Do you have any certificates for your machine?

A: All of our products coming with the certificates of CE and ISO 9001:2000.

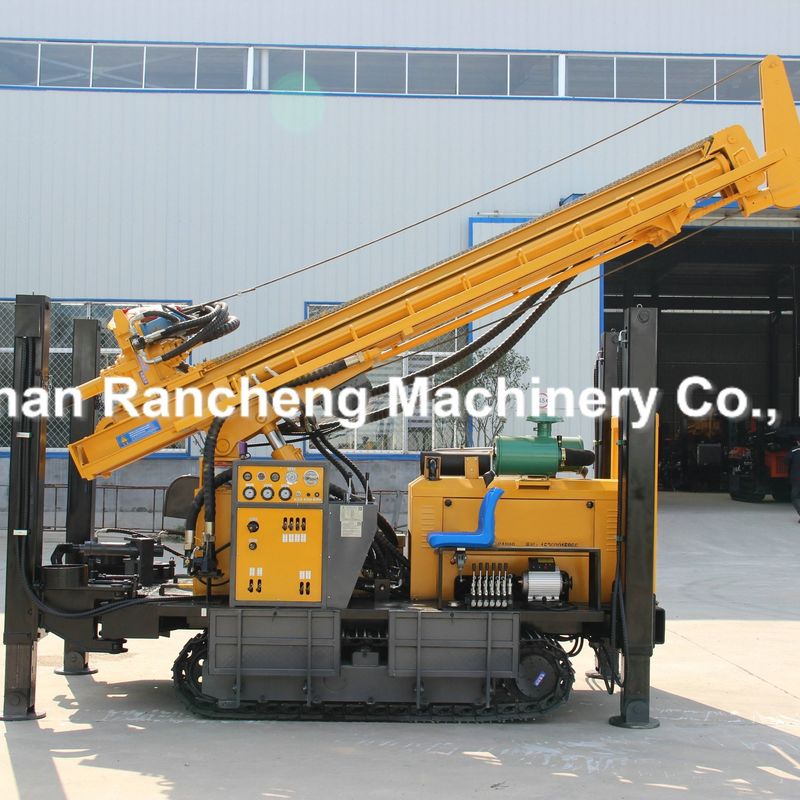

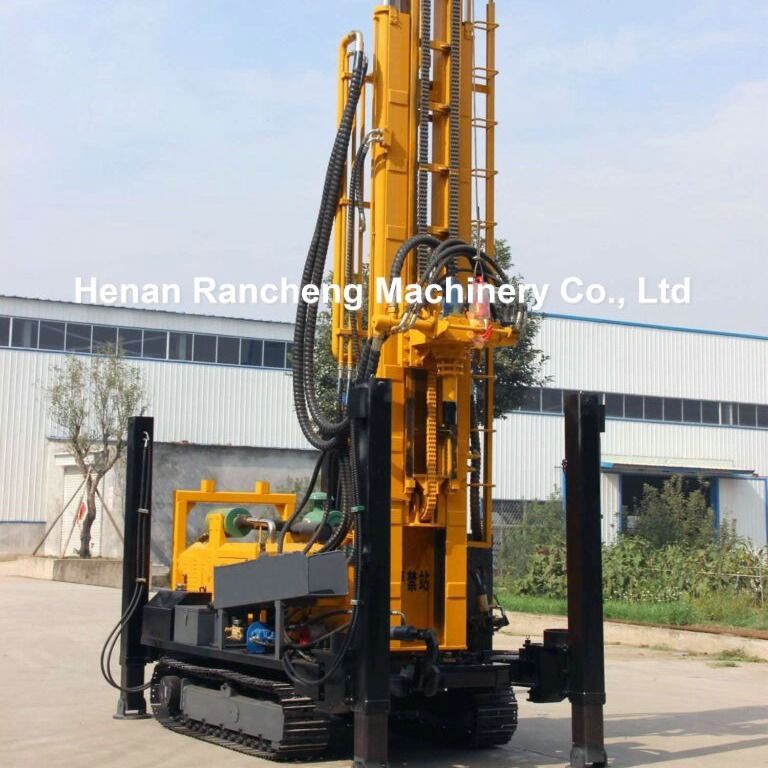

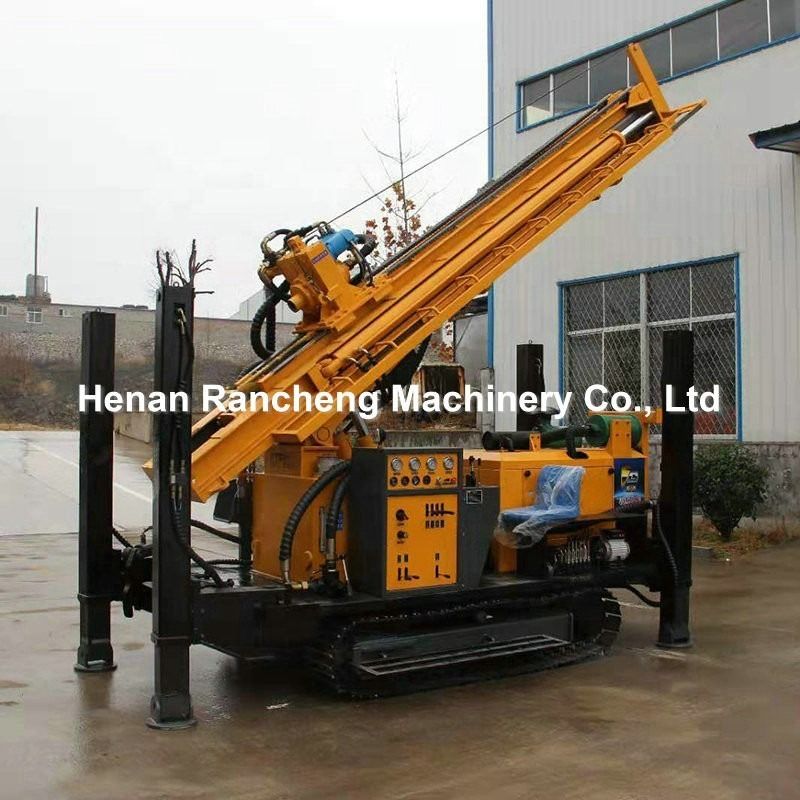

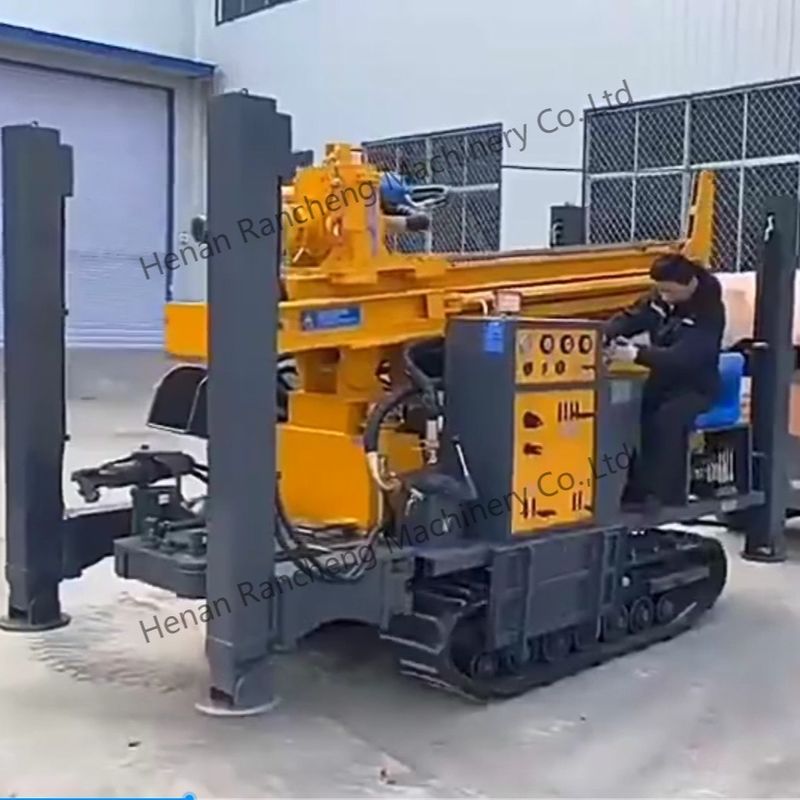

Machine picture display
