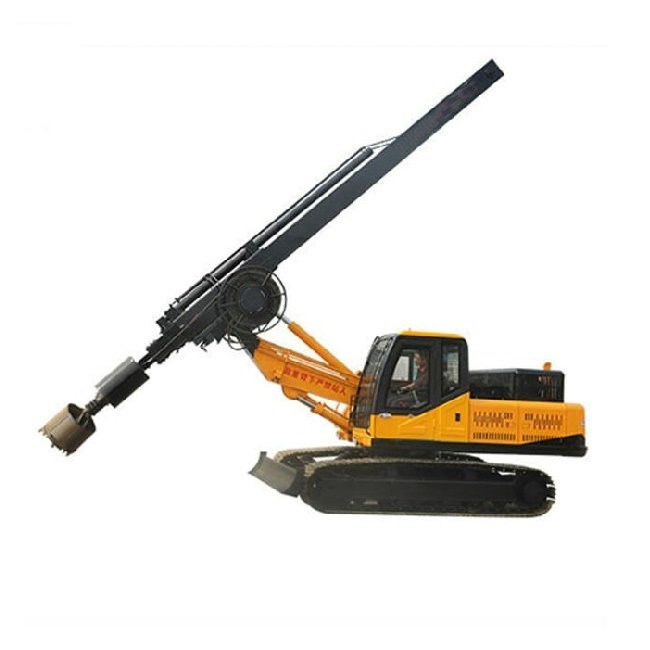

Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine

Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine

Rotary Drilling Rig 110KW

Rotary Drilling Rig 15m

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-15C/20C

Contact Us
Request A Quote
Product Details
Name:
Rotary Drilling Rig
Model:
RCQ-15C/20C
Drilling Depth:
15/20m
Working Mode:
Hydraulic Oil Cylinder Pressure
Max Stroke:
11-22m
Diesel Engine Powe:
110KW Cummins Engine
Highlight:

Rotary Drilling Rig 110KW

,

Rotary Drilling Rig 15m

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

15m / 20m Depth Hydraulic Oil Cylinder Rotary Drilling Rig 110KW Cummins Engine



Product Description



The RCQ series crawler rotary drilling rigs have become industry leaders with their unique characteristics. First of all, the pressurized drilling method is used to easily achieve rotary excavation depths between 15 and 20 meters. Drilling tools of various specifications can be equipped with a wide range of pile hole diameters to meet various engineering needs. Its efficient drilling capacity ensures that it can quickly move to the next construction site after construction is completed, showing flexibility, convenience and efficiency, so it is widely used in fields such as national high-speed rail construction.



In addition, this machine is not only involved in soft soil foundations, seaports, bridges, reservoir stations, national defense construction and other fields, but can also be widely used in rotary piles, pile foundation engineering, drilling engineering, geological exploration, construction, etc. Demonstrating versatility and versatility in engineering projects in various fields.



Product Specifications



Model RCQ-15C RCQ-20C
Working mode hydraulic oil cylinder pressure
Drilling diameter (mm) Φ500-Φ1500
drilling depth (m) 15 20
Dimension(mm) 7500X2300X2950 8200X2200X2950
The total weight(t) 13.5 16
Powerhead torque(N.m) 17000-22000
Rotary speed (r/min) 30-50
Max lifting capacity (KN) 150
Max stroke (m) 11-22
Wire-line diameter (mm) 16
Rotation angle ( °) 360
Travelling speed (km/h) 3-5
Max gradeability ( °) 25
Diesel engine power (KW) 110KW Cummins engine
Diesel engine rotary speed (r/min) 2200



Product Features



First of all, it has outstanding flexibility, the overall design is lightweight, easy to operate, easy to move and transition quickly, and can be flexibly used in various construction site environments. Secondly, the investment return is high, the input cost is low, the results are rapid, it brings obvious economic benefits, and it has irreplaceable advantages in the economy. Third, thanks to the support of technical patents, unique technology is used to achieve small torque and high power, making it easily applicable to various large - scale pile hole projects. In addition, it adopts a crawler walking design, which can move easily by itself. It has excellent climbing ability and walking height. It is easy and comfortable to operate. The hydraulic control is convenient and can be operated by only one person. The piling speed is fast and a pile hole with a depth of 6 meters can be drilled every 3 minutes, which greatly improves the construction efficiency. At the same time, low fuel consumption, durable drill bits and precise adjustment of the frame ensure the stability and accuracy of the operation.



Product Image



Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine 0Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine 1Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine 2Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine 3Hydraulic Oil Cylinder Rotary Drilling Rig 15m / 20m Depth 110KW Cummins Engine 4
