Crawler Type Rock DTH Drill Rig Machine 32m Drilling Depth 242KW Cummins Engine

32m Drilling Depth Crawler Type Rock DTH Drilling Rig 242KW Cummins Engine

Product Description

The RCKS - 11 crawler blasting rock drilling rig is an automated heavy - duty equipment specially designed for harsh environments and high - intensity operations. It is equipped with a Cummins China Stage III diesel engine that meets strict environmental protection standards. It optimizes power distribution through a dual-end output system, ensuring stability and reliability in complex formations.

This drilling rig can handle various hole diameters and directions from 100 - 140 mm, and is suitable for mining and construction pre - split hole operations. The automated system includes automatic drill pipe loading and unloading and lubrication, reducing manpower requirements and increasing efficiency. Easy to operate, one operator can complete drilling.

An anti - seize system and optional drilling angle and depth indicators enhance working precision. The efficient dust removal system and comfortable cab facilities, such as air conditioning and audio system, improve the working environment and efficiency.

Product Specifications

Product Features

It can advance up to 4.5 meters at a time, greatly reducing loading and unloading time and improving work efficiency; the automatic drill pipe connection and unloading system can achieve a maximum drilling depth of 32 meters; the unique lifting mechanism realizes a large swing angle adjustment of 130 ° for the frame. It is convenient to switch between horizontal holes and vertical holes without changing the pivot; CAT electronic fuel injection engine provides excellent power performance; double - end output power structure is compact and easy to maintain; high - pressure and large - displacement compression system ensures rapid drilling; The self - leveling traveling mechanism makes the drill more suitable for rough roads; the special drill rod positioning mechanism guides the drilling tool to avoid hole deviation and improve drilling quality; it is equipped with a 242KW Cummins engine with strong power.

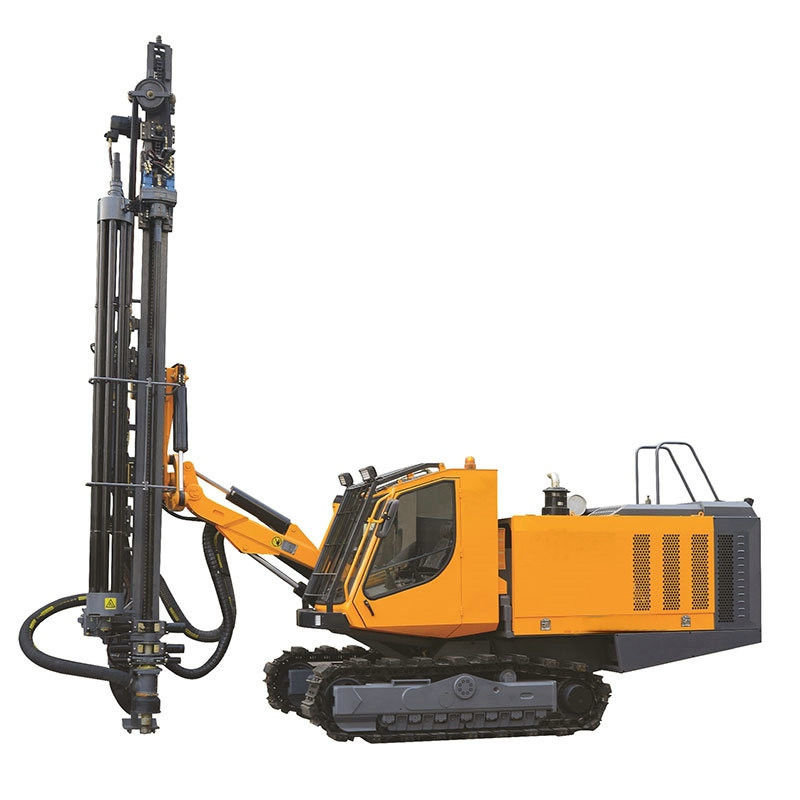

Product Image
