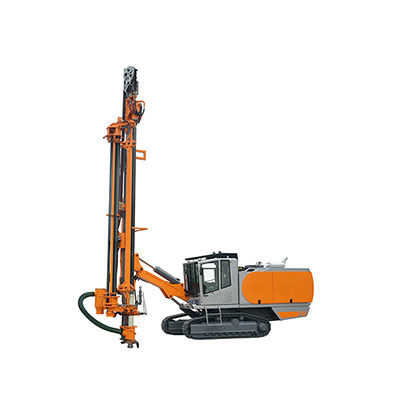

264HP Engine DTH Down The Hole Drilling Equipment 28m Depth 90 - 130mm Bore Dia

264HP Engine DTH Down The Hole Drilling Equipment 28m Depth 90 - 130mm Bore Dia

264HP Down The Hole Drilling Equipment

DTH Down The Hole Drilling Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ440

Contact Us
Request A Quote
Product Details
Name:
DTH Drilling Rig
Model:
RCZ440
Hole Depth:
28m
Engine Rated Power:
194kw
Size:
9980x2480x3200mm
Weight:
15000kg
Highlight:

264HP Down The Hole Drilling Equipment

,

DTH Down The Hole Drilling Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

28m Depth 90 - 130mm Bore Dia DTH Drilling Rig 264HP Cummins Diesel Engine



Product Description



The RCZ440 hydraulic automatic DTH drilling rig stands out for its compact size and powerful drilling capabilities. It is suitable for a variety of environments, such as surface quarries, mines and bench blasthole drilling of various types of medium - soft and medium - hard rocks. It can meet the needs of different production efficiency. One machine can complete a variety of tasks, improve the stripping speed and control the dilution rate.



Based on mature technology, Rancheng continuously optimizes the production capacity and adaptability of drilling rigs, so that it has higher production efficiency, better adaptability and higher quality drilling. The compact and lightweight design makes the RCZ440 more flexible and convenient to move on the construction site. Its powerful drilling capacity and excellent flexibility give it significant advantages in operation.



Product Specifications



Engine Manufacturer Cummins Engine Model QSC8.3
Engine Rated Power 194KW Engine Emission 3
F.A.D 16m³/min working Pressure 20 Bar
Rotation Speed 0-105rpm Rotary Torque 2800 Nm
Hole Diameter Range Ø90-130mm DTH Hammer 3.5 inch/4inhes
Hole Depth 28m Number of Pipes 7+1
Drill pipe type 60mm/76mm Pipe Length 3,500 mm
Feed Type Motor-Chain Length of Feed Beam 6865mm
Feed Extension 1200 mm Feed Travel Length 4100 mm
Feed Speed 0.85 m/s Pull Up Force ( Max.) 31 kN
Max. Climbing Ability 30° Feed Force ( Max.) 15 kN
Tramming Speed high 3.2 km/h Traction Force ( Max.) 115.4 kN
Ground Clearance 450 mm Fuel Tank Capacity 350 L
Length 9980 mm Width 2480 mm
Height 3200 mm Weight 15000kg





Product Features



The RCZ440 hydraulic DTH drilling rig increases the stripping speed and reduces resource waste through pre - split hole technology, while optimizing drilling accuracy and blasting control. The rig offers greater flexibility than traditional equipment, thanks to its heavy - duty motor, chain feed beam and square box feed beam design. The drilling rig is also equipped with an anti - rockfall guard, an anti - rollover roof, a panoramic air - conditioned cab and a fully enclosed structure, which reduces noise and vibration and makes maintenance services more convenient. The round table rod ( tube ) replacement system is suitable for deep hole drilling, and the 3.5 - inch / 4 - inch hammer rotary head can provide up to 2800 Newton meters of torque. The RCZ440 drilling rig has a high return on investment and is available in two diameter sizes. It is suitable for deep hole drilling and ensures fast and efficient drilling speed. Its energy - saving, environmentally friendly and safe design, as well as its combination of flexibility and mobility, make maintenance and service access more convenient, and the steeper the vertical slope design, the better the production economics.



Product Image



264HP Engine DTH Down The Hole Drilling Equipment 28m Depth 90 - 130mm Bore Dia 0264HP Engine DTH Down The Hole Drilling Equipment 28m Depth 90 - 130mm Bore Dia 1264HP Engine DTH Down The Hole Drilling Equipment 28m Depth 90 - 130mm Bore Dia 2
