Name: 200m Drilling Depth Water Well Drill Rig 118HP Cummins 115 - 350mm Bore Dia
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200T Truck Mounted Water Well Drilling Rig
Availability: InStock

Home > products > Water Well Drilling Rig >

200m Drilling Depth Water Well Drill Rig 118HP Cummins 115 - 350mm Bore Dia

water well drill rig 118hp

200m water well drill rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200T Truck Mounted Water Well Drilling Rig

Request A Quote

Product Details

Name:

Water Well Drilling Rig

Model:

RCF200T Truck Mounted Water Well Drilling Rig

Bore Diameter:

115-350mm

Bore Depth:

200m

Dimension:

8900*2100*3300mm

The Total Weight:

12T

Highlight:

water well drill rig 118hp

200m water well drill rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by ro-ro ship

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig

Get Best Price

Video

280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig

Get Best Price

Video

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

Get Best Price

Video

300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine

Get Best Price

Contact Now

Product Description

200m Drilling Depth 115 - 350mm Bore Dia Water Well Drill Rig 118HP Cummins

Product Description

The RCF200T truck - mounted water drilling rig is an efficient and stable truck-mounted drilling rig that can be adapted to different geological drillings and supports mud pump and air compressor drilling. The maximum drilling depth can reach 200 meters, and the operation console is centrally controlled, suitable for precise operation. The drilling rig can achieve rapid lifting and lowering, reducing auxiliary time and improving work efficiency. It adopts 4 * 2 special lifting chassis, Dongfeng brand, and all components are installed on the chassis. Our water drilling rigs are competitive in price and have low maintenance costs, and are widely used in agricultural water drilling, industrial well drilling projects, geothermal well drilling, etc.

Technical Parameters

Drilling type	Mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Drilling diameter (mm)	115～350
Drilling depth (m)	200
Work Pressure(Mpa)	1.05～3.5
Consumption (m³/min)	16～40
Drill pipe length (m)	3
Drill pipe diameter (mm)	89
Axle pressure (N)	57000
Lifting power (T)	12T
Rotary torque (Nm)	5600
Rotary speed	0～100
Truck Chassis	DONGFENG
Diesel engine Model	Cummins
Discharge standard	Euro III
Horsepower	180HP
Rated speed	2500r/min
Fuel type	diesel
Tire size	90.00-20R
Drive form	4*2
Dimension (mm)	890021003300
The total weight (T)	12

Machine Advantages

The RCF200T water drilling rig is a hydraulic rotary drilling rig with directional circulation function. The power of the drilling rig comes from a 180 - horsepower Cummins engine, which drives a large - displacement high-pressure plunger pump with strong power and stable performance. The lifting force can be adjusted and controlled to adapt to deep hole drilling. The water drilling rig can be equipped with a generator to facilitate welding or lighting at night.

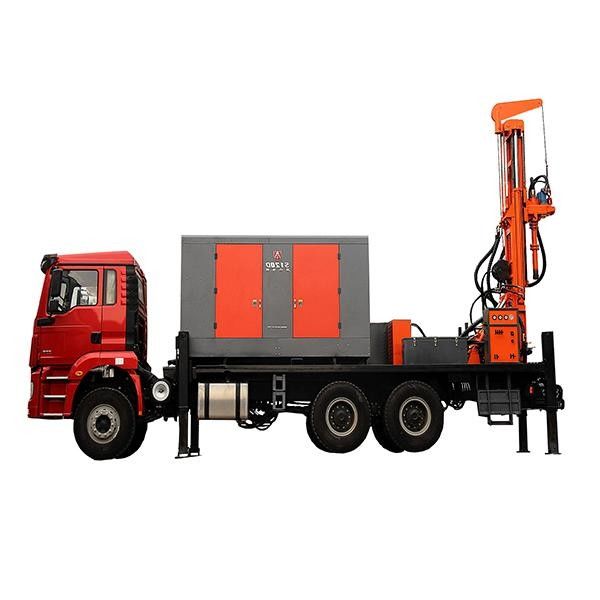

Machine picture display

200m Drilling Depth Water Well Drill Rig 118HP Cummins 115 - 350mm Bore Dia 0
