High Performance Portable Water Well Drilling Rig 150m Depth & 450mm Borehole Diameter
Product Description
When it comes to water well drilling, selecting the right equipment can make all the difference. That’s why we’re excited to introduce the RCS200P portable well driller. This versatile machine offers an impressive drilling depth of up to 150 meters and can handle hole diameters ranging from 100mm to 450mm, making it ideal for various water well projects.
What sets the RCS200P apart is its design for easy transport and adaptability. With its two wheels and trailer-type construction, you can move it effortlessly while ensuring stability and reliability during transport. Powered by a robust 22HP diesel engine, it delivers the power you need for efficient and speedy drilling.
Whether you’re working on farm irrigation, garden wells, or domestic drinking water wells, the RCS200P is a dependable choice for all your drilling needs.
Applications
This water well drilling machine is highly versatile, suitable for geothermal drilling, farm irrigation, residential yards, gardens, and various water well and boring projects. It can handle drilling diameters from 70mm to 450mm and reach depths of up to 150 meters.
Additionally, it's effective for small building piling, such as for farmhouses or factories, with a drilling diameter capability of up to 450mm. The machine is designed to work efficiently across different types of strata, including sand, soil, clay, and soft rock.
Product Specifications
| Model of drilling machine |
RCS200P |
| Drilling machine overall dimension(mm) |
1800*1000*2000 |
| Weight of Drilling machine (kg) |
1000 |
| Drill rod diameter (mm) |
Ø50 |
| Drill rod length(mm) |
1500 |
| Rod change method |
Full automatic screw thread |
| Drilling depth(m) |
150 |
| Diesel Motor Power (Hp/kw) |
22/16.2 |
| Drilling method |
Percussive and rotating type |
| Drilling hole diameter(mm) |
Within Ø 450mm |
| Stroke distance (mm) |
2000 |
| Hosting capacity (kg) |
1500 |
Product Features
1. Lightweight and energy-saving: The equipment is lightweight and can effectively save energy.
2. Patented product, unique design: It has a patented unique design and a simple drilling structure.
3. Easy to transport and operate: It is easy to transport, simple to operate, and can be learned how to use it in a short time.
4. Powerful drilling ability: It can penetrate hard formations unless it encounters thick layers of rock.
5. Single-person operation: Only one person is required to operate, reducing labor intensity.
6. Efficient and fast: High work efficiency and fast drilling speed.
7. Easy to operate and long service life: Easy to operate and long service life.

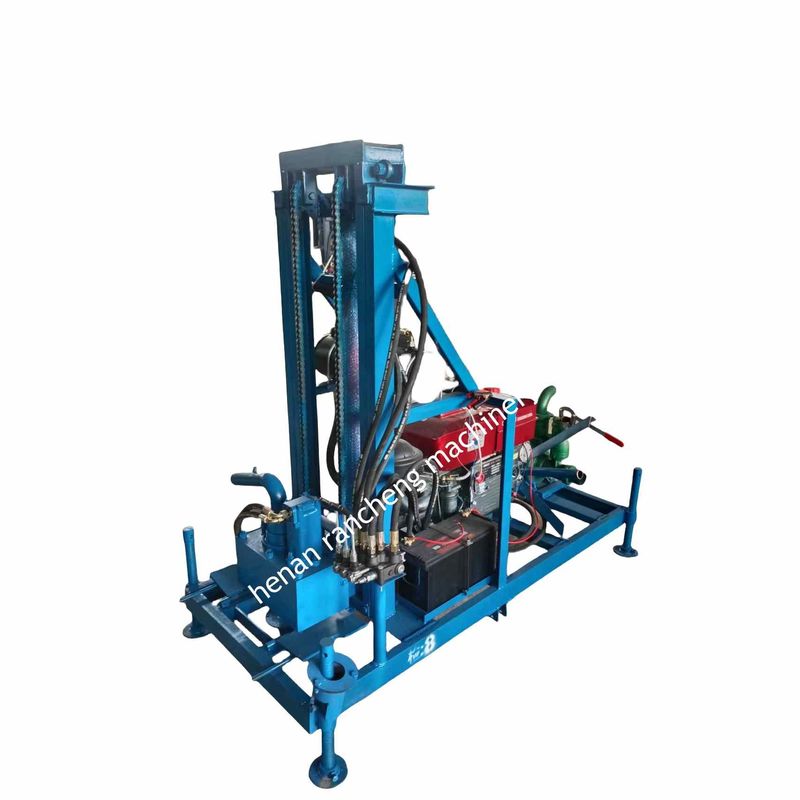

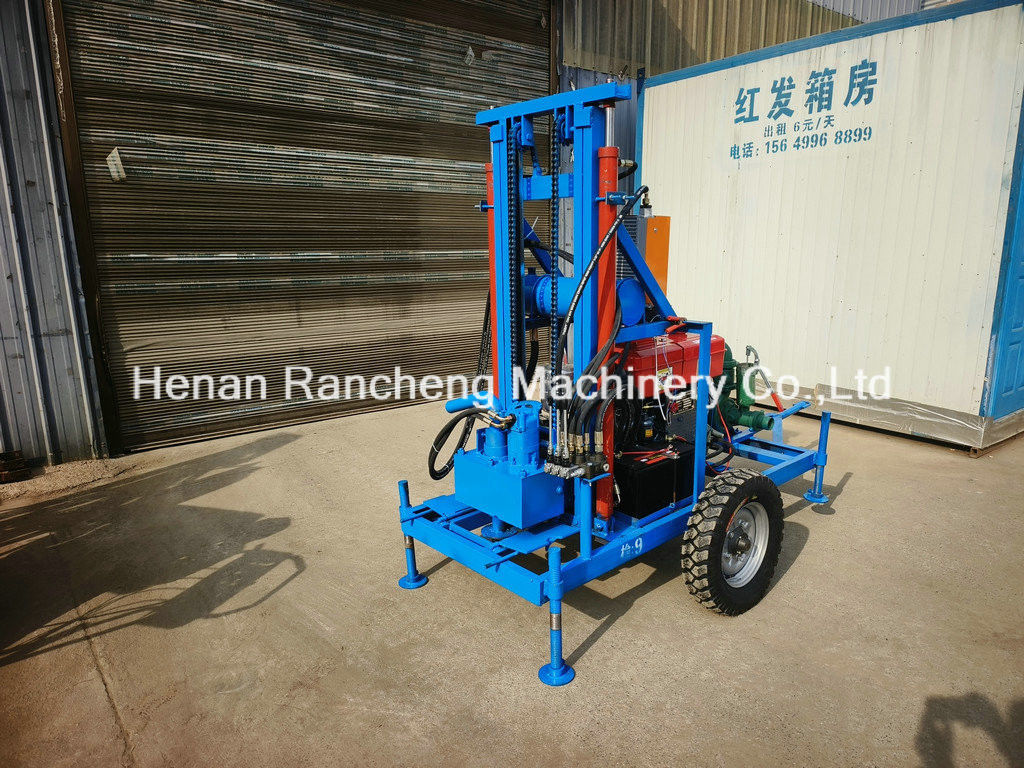

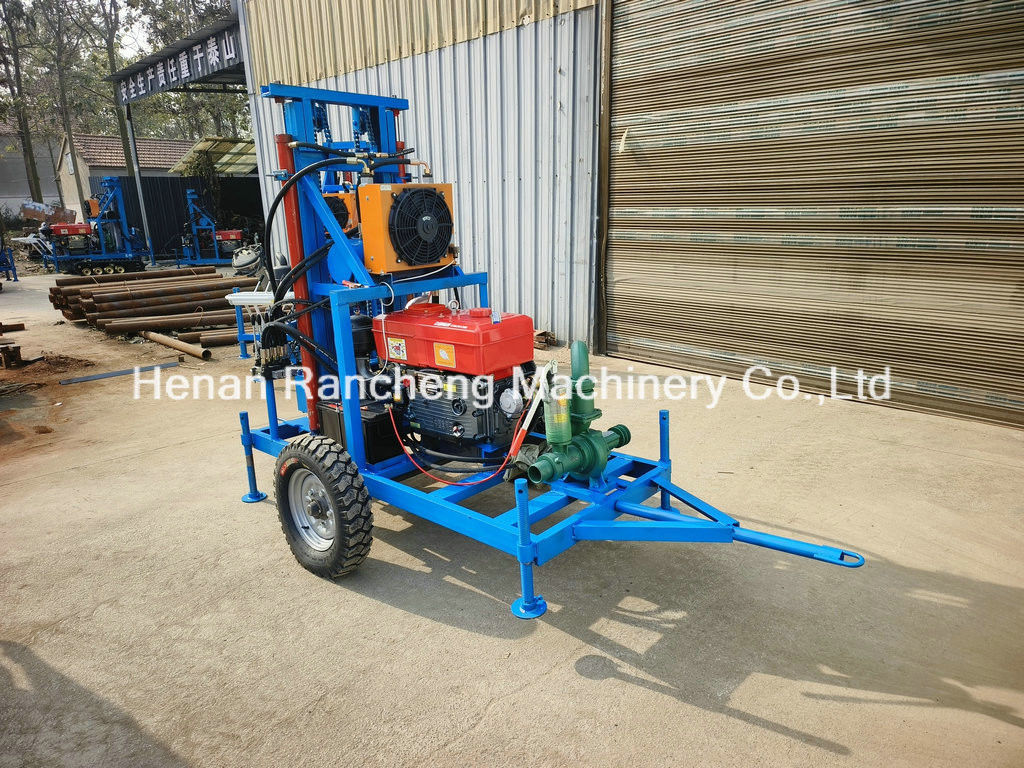

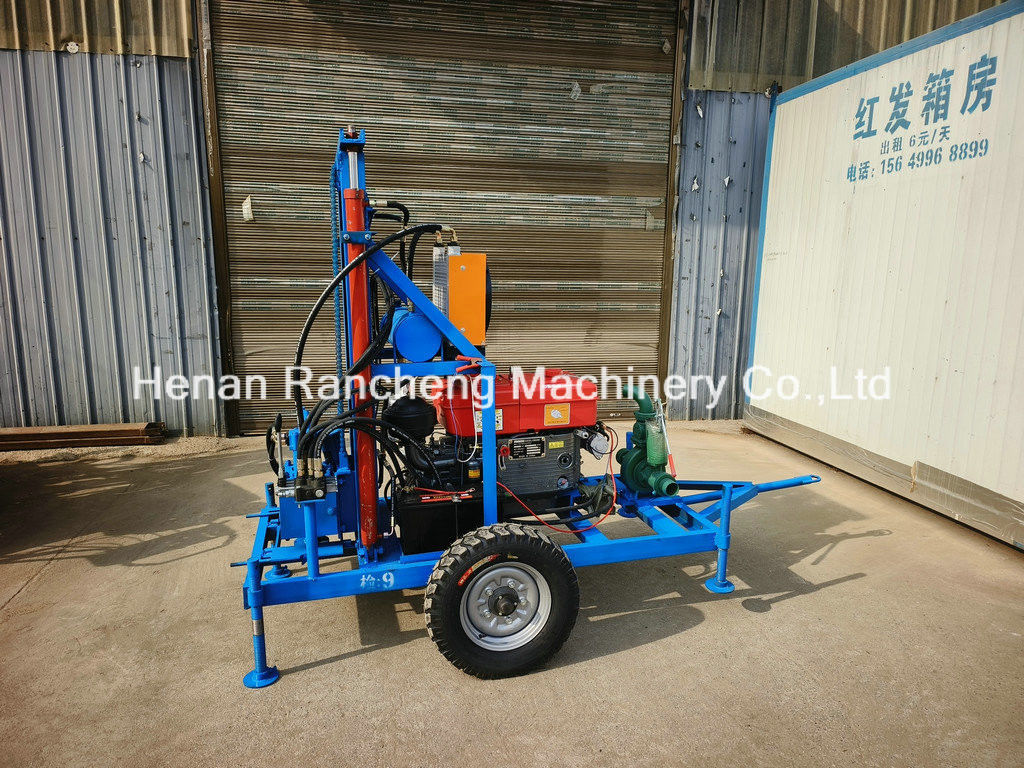

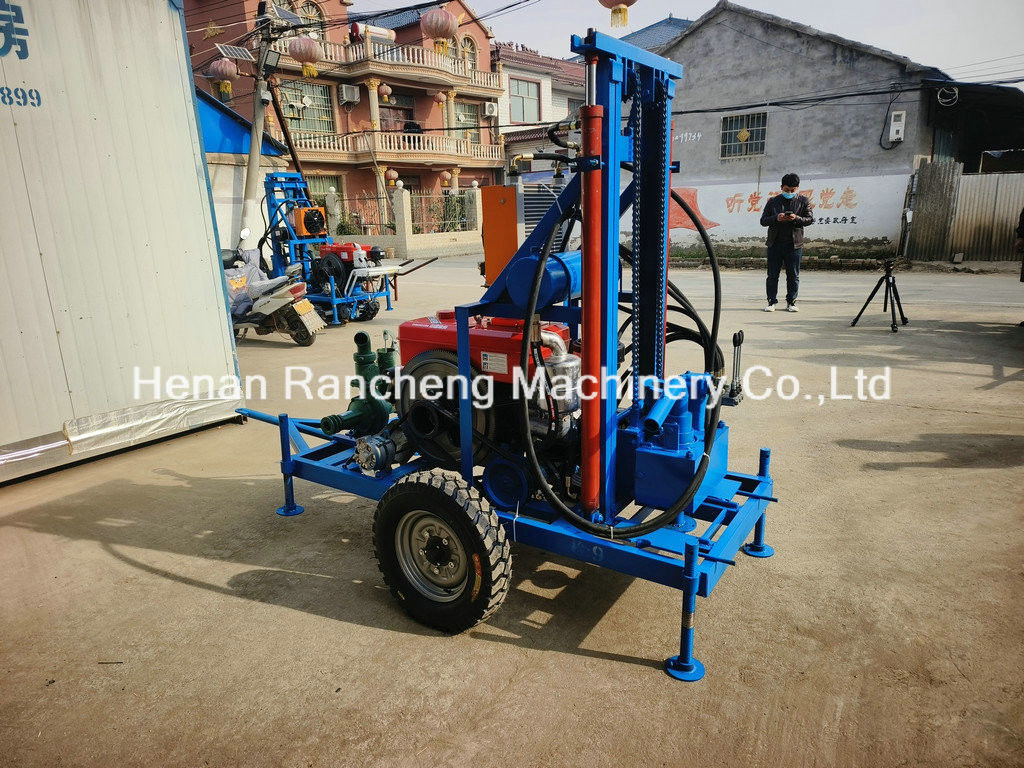

Product Image
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
