200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

350mm Water Well Drill Rig

118HP Water Well Drill Rig

200m Water Well Drill Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200T Truck Mounted Water Well Drilling Rig

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Rig
Model:
RCF200T Truck Mounted Water Well Drilling Rig
Bore Diameter:
115-350mm
Bore Depth:
200m
Dimension:
8900*2100*3300mm
The Total Weight:
12T
Highlight:

350mm Water Well Drill Rig

,

118HP Water Well Drill Rig

,

200m Water Well Drill Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

Product Description



Introducing the RCF200T Truck-Mounted Water Drilling Rig – the ultimate solution for efficient and versatile drilling operations. Designed to meet the demands of various geological conditions, this state-of-the-art rig combines stability, power, and precision, making it an indispensable tool for water well drilling, geological exploration, and construction projects.

The RCF200T is engineered with a robust 4x2 special lifting chassis from the renowned Dongfeng brand, ensuring exceptional mobility and stability on diverse terrains. All components are seamlessly integrated onto the chassis, providing a compact and user-friendly design that enhances operational efficiency. With a maximum drilling depth of 200 meters, this rig is capable of tackling even the most challenging drilling tasks with ease.

One of the standout features of the RCF200T is its adaptability to different drilling methods. Whether you require mud pump drilling for softer soils or air compressor drilling for harder rock formations, this rig has you covered. The advanced operation console is centrally controlled, allowing for precise maneuvering and real-time adjustments, which significantly improves the accuracy and effectiveness of your drilling operations.

Safety and reliability are paramount in the design of the RCF200T. Built with high-quality materials and components, this rig is engineered to withstand the rigors of demanding work environments while ensuring the safety of the operator and crew.

In summary, the RCF200T Truck-Mounted Water Drilling Rig is a powerful, efficient, and versatile solution for all your drilling needs. With its impressive depth capability, adaptable drilling methods, and user-friendly design, it stands out as a leader in the industry. Invest in the RCF200T and elevate your drilling operations to new heights!


Technical Parameters



Drilling type Mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Drilling diameter (mm) 115~350
Drilling depth (m) 200
Work Pressure(Mpa) 1.05~3.5
Consumption (m³/min) 16~40
Drill pipe length (m) 3
Drill pipe diameter (mm) 89
Axle pressure (N) 57000
Lifting power (T) 12T
Rotary torque (Nm) 5600
Rotary speed 0~100
Truck Chassis DONGFENG
Diesel engine Model Cummins
Discharge standard Euro III
Horsepower 180HP
Rated speed 2500r/min
Fuel type diesel
Tire size 90.00-20R
Drive form 4*2
Dimension (mm) 8900*2100*3300
The total weight (T) 12


Machine Advantages



The RCF200T water drilling rig is a hydraulic rotary drilling rig with directional circulation function. The power of the drilling rig comes from a 180 - horsepower Cummins engine, which drives a large - displacement high-pressure plunger pump with strong power and stable performance. The lifting force can be adjusted and controlled to adapt to deep hole drilling. The water drilling rig can be equipped with a generator to facilitate welding or lighting at night.



Machine picture display

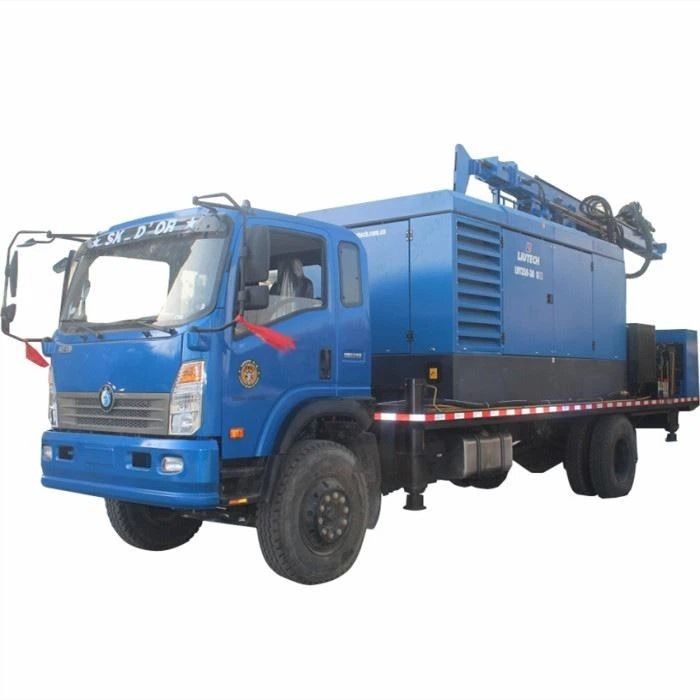

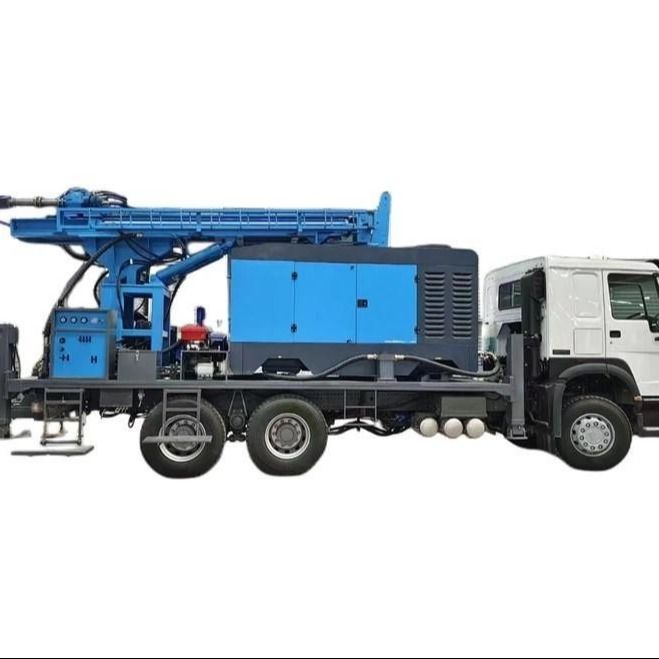

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore 0200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore 1

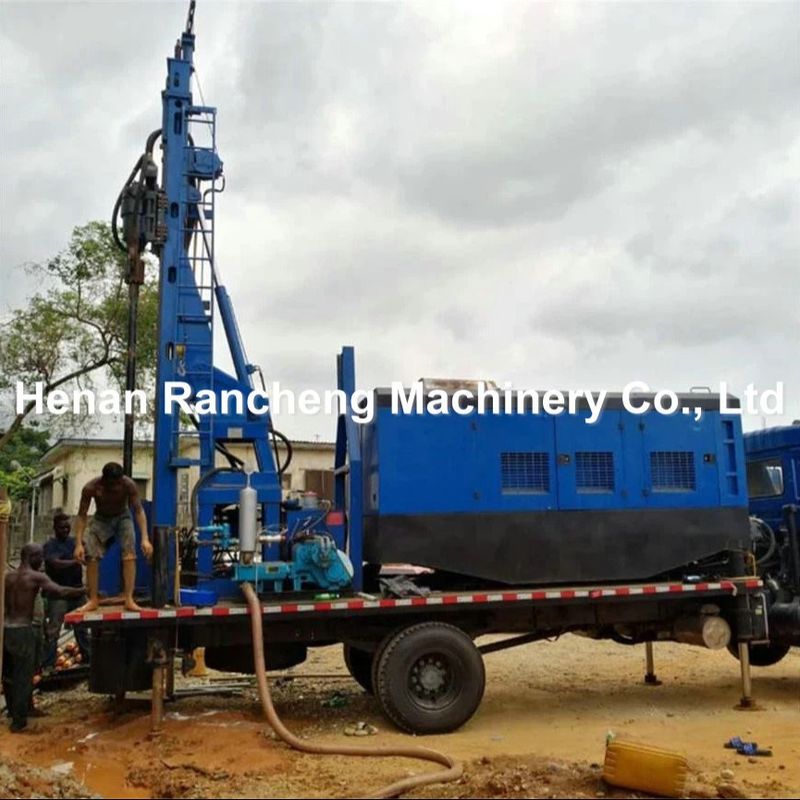

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore 2
