150-Meter Deep Hydraulic Water Drilling Equipment With A 1500 Kg Lifting Capacity
Product Description
The RCS200P is a versatile, lightweight, and high-efficiency hydraulic drilling rig designed for water well excavation in diverse environments. Combining advanced engineering with user-friendly operation, this machine is ideal for geothermal drilling, agricultural irrigation, residential water supply, and small-scale construction projects.
Features & Advantages
1.Multi-Purpose Applications:
Drills holes with diameters ranging from 70–450 mm and depths up to 150 meters.
Suitable for various geological formations, including sand, soil, clay, and soft rock.
Adaptable for small building foundation piling (e.g., farmhouses, factories).
2.Robust Performance:
22 HP (16.2 kW) diesel engine ensures powerful operation.
Dual drilling method: Percussive and rotating for enhanced efficiency in hard strata.
1,500 kg hoisting capacity and 2,000 mm stroke distance for heavy-duty tasks.
3.Portability & Ease of Use:
Compact dimensions (1,800 × 1,000 × 2,000 mm) and lightweight design (1,000 kg).
Wheel-mounted trailer for easy transportation and quick setup.
Automated rod-changing system (Ø50 mm drill rods, 1.5 m length) simplifies operation.
4.Durability & Innovation:
Patented structural design ensures long service life and reduced maintenance.
Energy-saving hydraulic system optimizes fuel consumption.
Operable by a single person, minimizing labor costs.
Product Specifications
| Model of drilling machine |
RCS200P |
| Drilling machine overall dimension(mm) |
1800*1000*2000 |
| Weight of Drilling machine (kg) |
1000 |
| Drill rod diameter (mm) |
Ø50 |
| Drill rod length(mm) |
1500 |
| Rod change method |
Full automatic screw thread |
| Drilling depth(m) |
150 |
| Diesel Motor Power (Hp/kw) |
22/16.2 |
| Drilling method |
Percussive and rotating type |
| Drilling hole diameter(mm) |
Within Ø 450mm |
| Stroke distance (mm) |
2000 |
| Hosting capacity (kg) |
1500 |

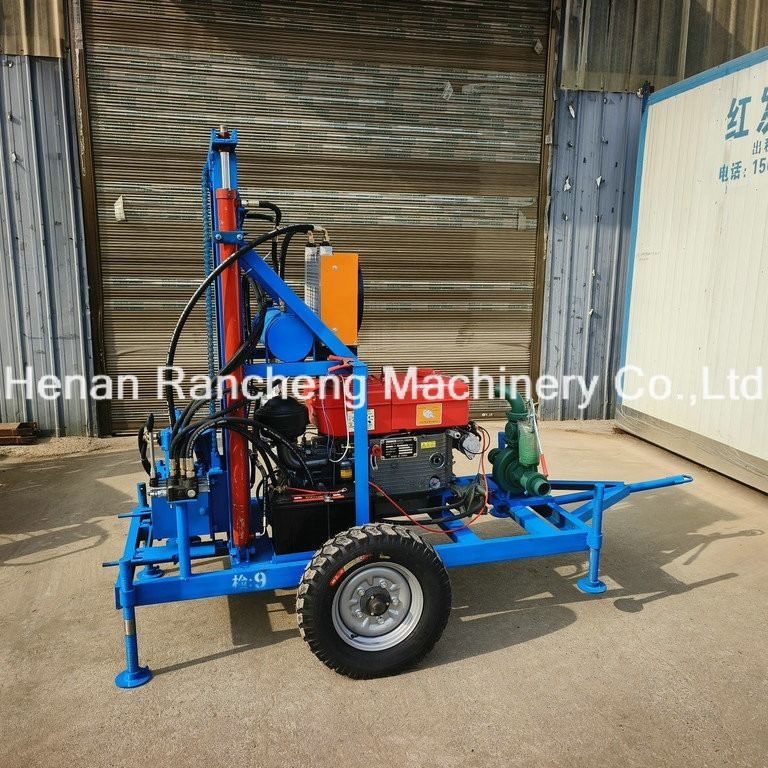

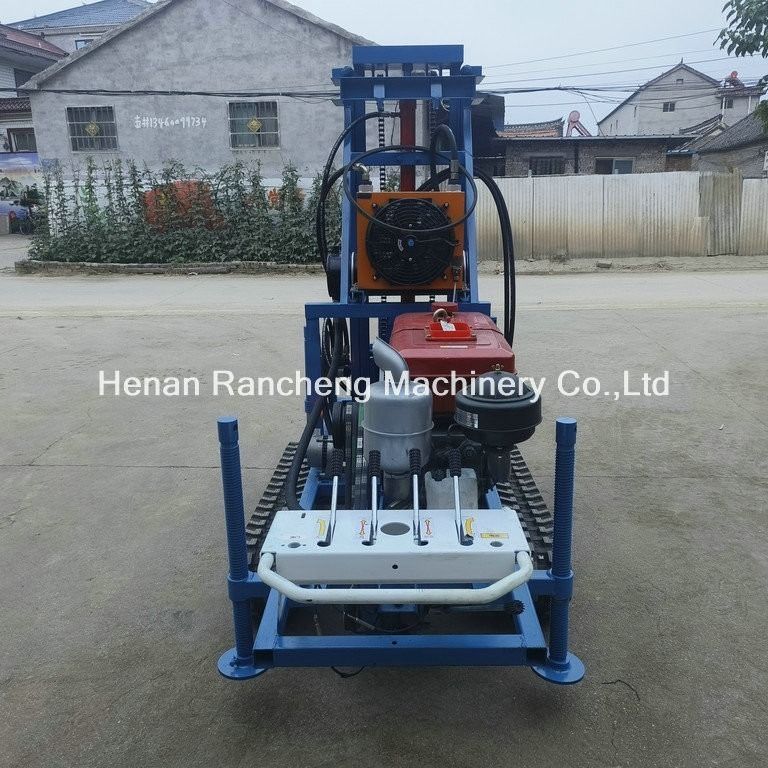

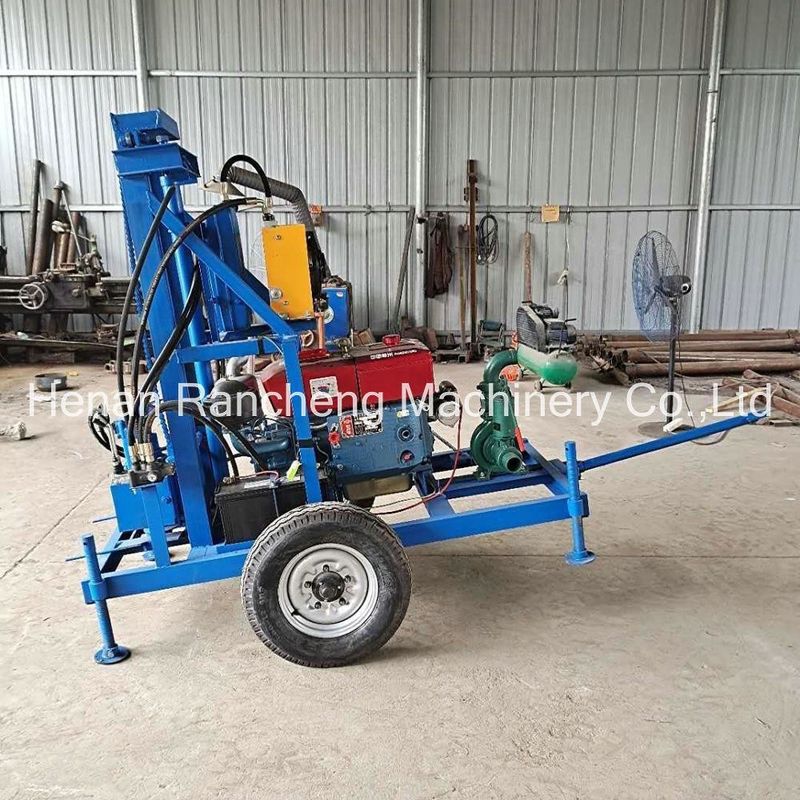

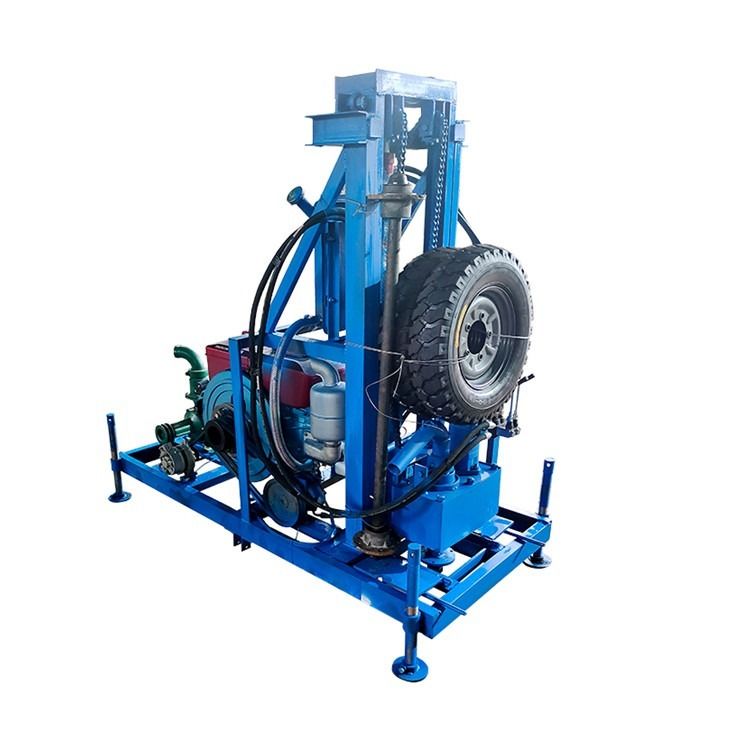

Product Image
