200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle

200m Small Borehole Drilling Rig

Hydraulic Small Borehole Drilling Rig

Multi-functional Small Borehole Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ130W / RCJ150W / RCJ200W

Contact Us
Request A Quote
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle
Product Details
Name:
Mutil Functional Drilling Machine
Model:
RCJ200W
Drilling Depth:
200m
Drilling Angle:
90°～75°
Drilling Weight（no Include Power）:
910kg
Highlight:

200m Small Borehole Drilling Rig

,

Hydraulic Small Borehole Drilling Rig

,

Multi-functional Small Borehole Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig online Video

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig

Get Best Price
Good price Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine online Video

Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig online Video

Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig

Get Best Price
Contact Us
Contact Now
Product Description

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle



Machine Introduction



RCJ130W, RCJ150W, RCJ200W small well hydraulic drilling rig is a multifunctional drilling rig, Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.This bore drilling machine adopts national patent technology taper clutch, with characteristics of strong transmission torque, easy to operation, free to maintenance.53x59 driving lever is adopted, high rigidity, strong delivery torque.



Machine Parameters



Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

 64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38





Machine Pictures

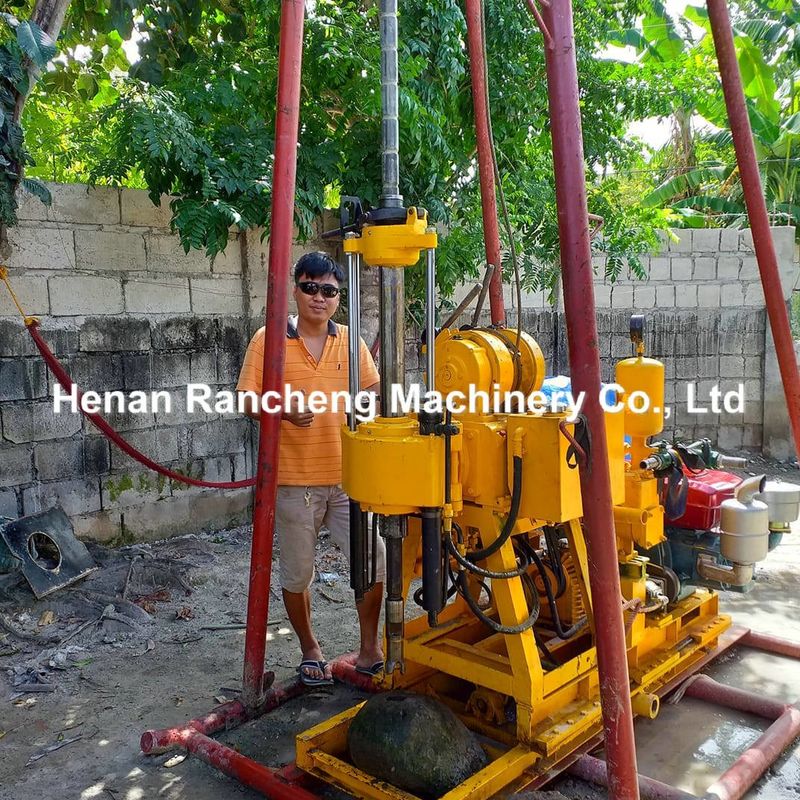

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 0

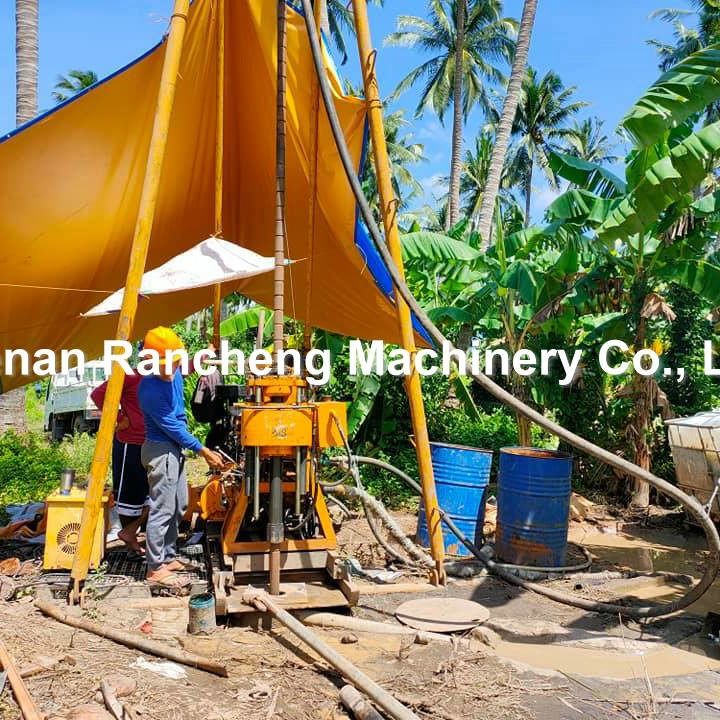

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 1

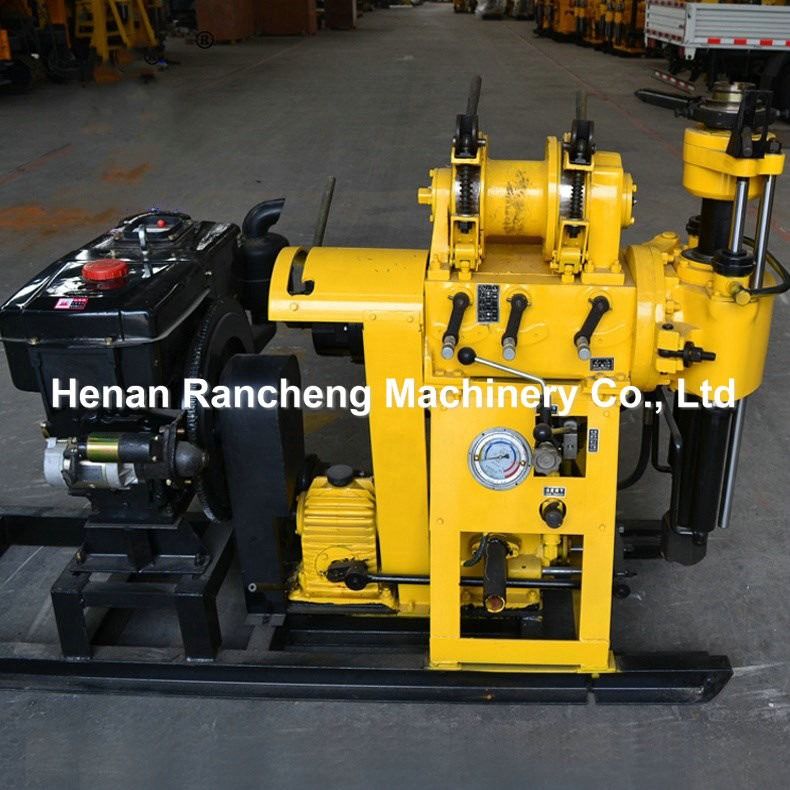

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 2

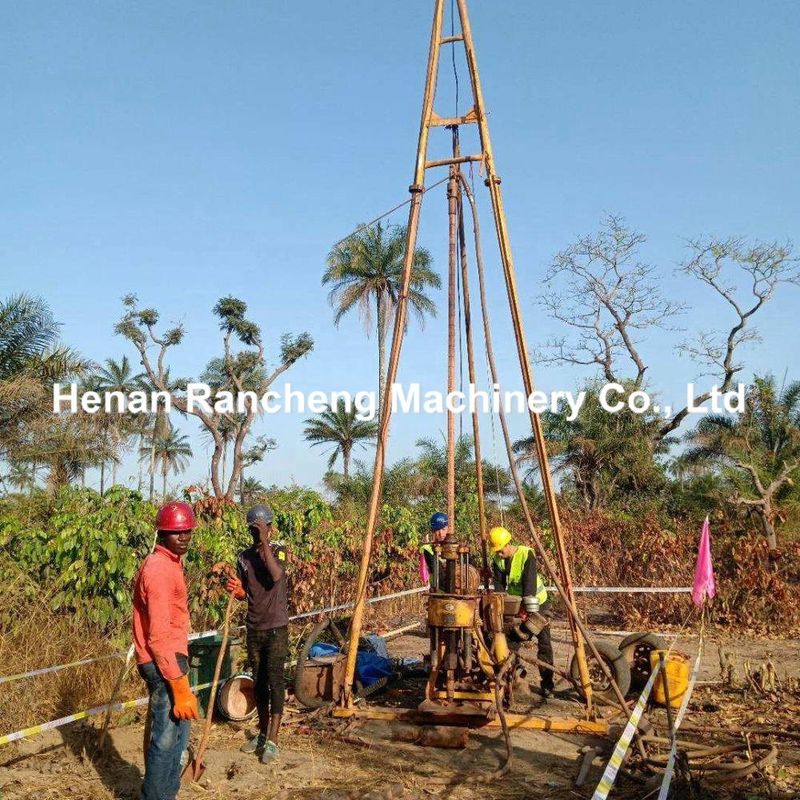

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle 3
