200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

20HP Borehole Drilling Rig

Hydraulic Borehole Drilling Rig

Borehole Drilling Rig Mutil Functional

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ130W / RCJ150W / RCJ200W

Contact Us
Request A Quote
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
Product Details
Name:
Mutil Functional Drilling Machine
Model:
RCJ200W
Drilling Depth:
200m
Drilling Angle:
90°～75°
Drilling Weight（no Include Power）:
910kg
Highlight:

20HP Borehole Drilling Rig

,

Hydraulic Borehole Drilling Rig

,

Borehole Drilling Rig Mutil Functional

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig online Video

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig

Get Best Price
Good price Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine online Video

Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig online Video

Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig

Get Best Price
Contact Us
Contact Now
Product Description

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine



Machine Introduction



RCJ130W, RCJ150W, RCJ200W small water well hydraulic drilling rigs are multifunctional drilling equipment, mainly used for water well drilling operations. According to different geological conditions, they are usually equipped with diamond drill bits to deal with hard rock layers, and alloy drill bits to deal with clay layers. They are both economical and practical drilling solutions.



Machine Parameters



Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

 64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38



Application:



This drilling machine is mainly used for geological survey and exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river bank and roadbed grouting holes, direct grouting operations, civil water wells, and geothermal central air conditioning related drilling work. From the preliminary geological survey of engineering construction, to the quality inspection of infrastructure, to the water source development of civil facilities and the drilling needs of new energy systems, it can play a key role in different scenarios and is a drilling equipment with a wide range of applications.





Machine Pictures

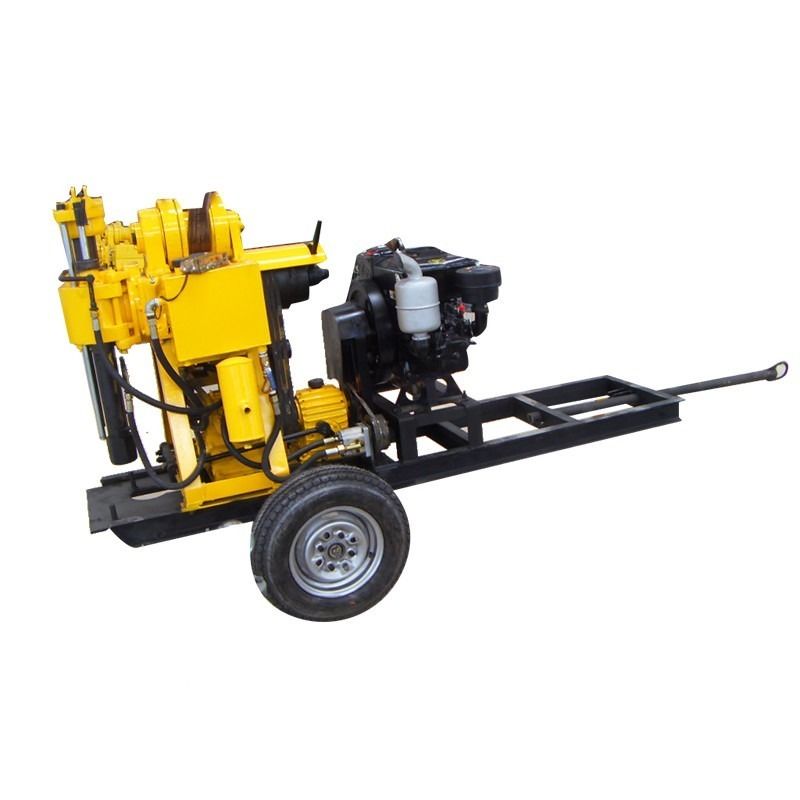

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 0

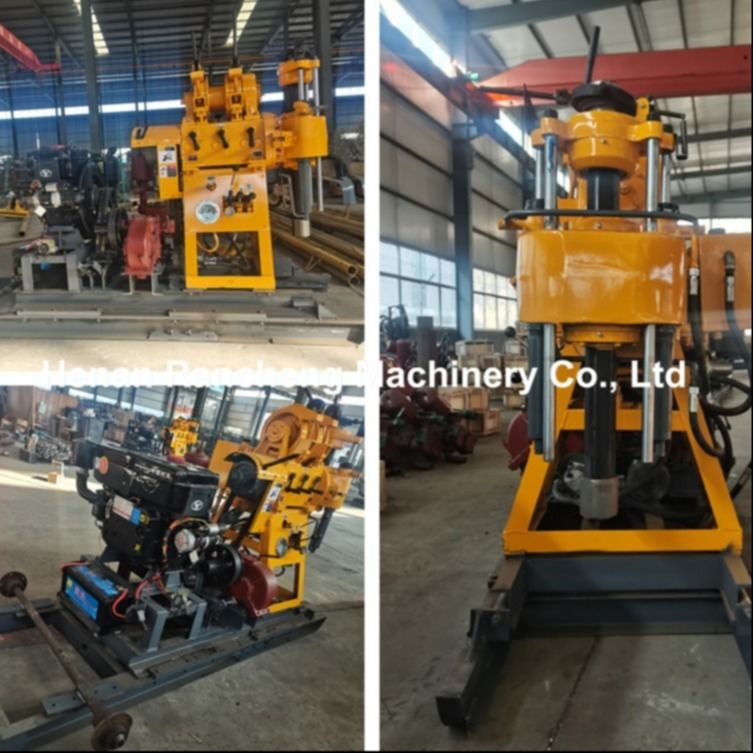

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 1

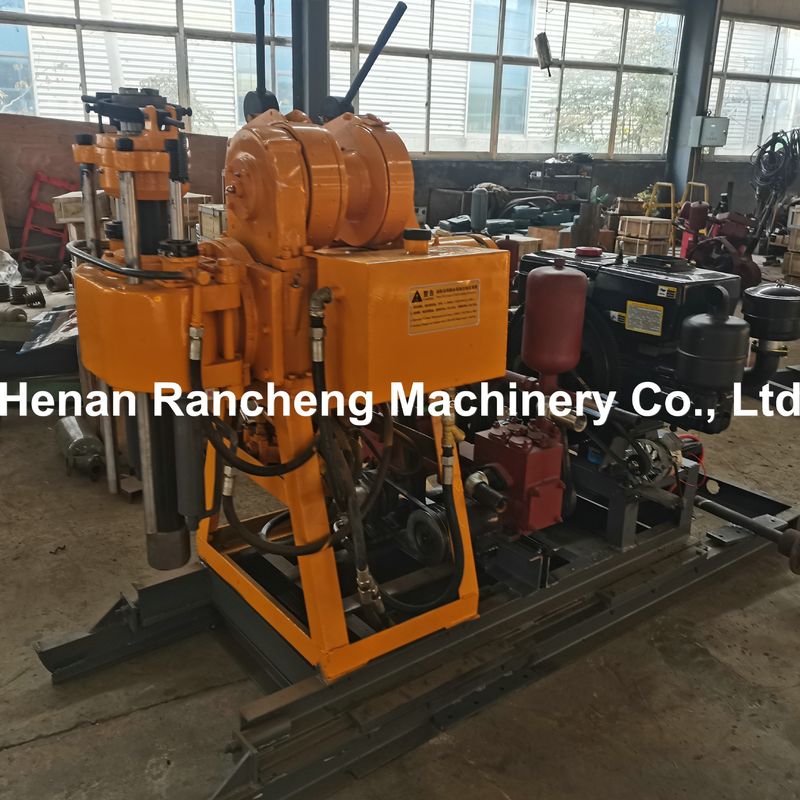

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 2

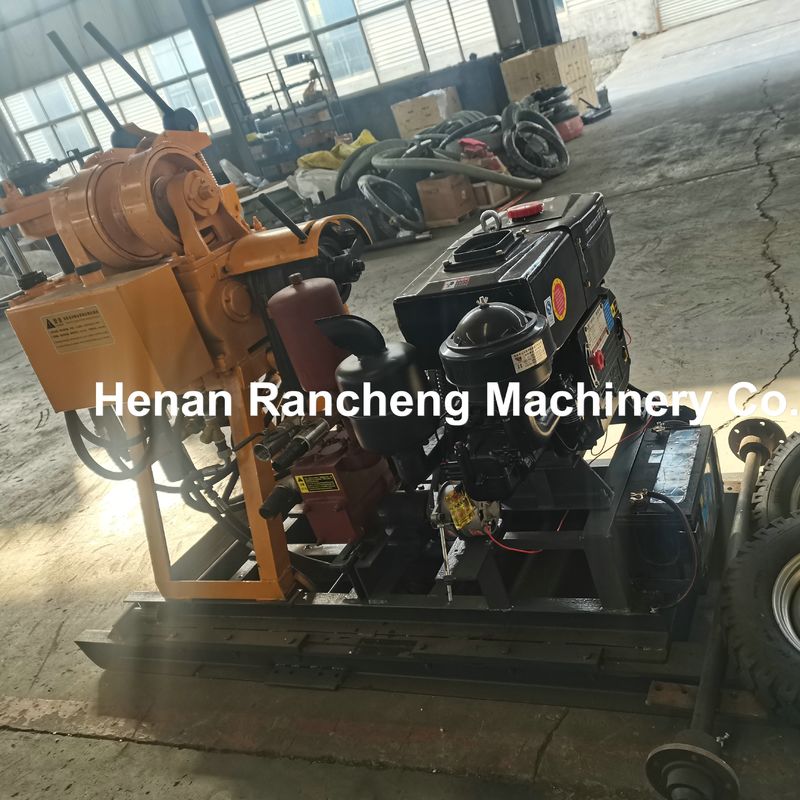

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 3
