Name: Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF260W
Availability: InStock

Home > products > Borehole Drilling Machine >

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig

Drilling Machine Four Wheel Trailer

260mDTH Water Well Drilling Rig

Four Wheel Trailer Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260W

Request A Quote

Product Details

Name:

Hydraulic Wheel Mounted Water Well Drilling Rig

Model:

RCF260W

Air Consumption:

17-35m³/min

Air Pressure:

1.7-3.0Mpa

Pipe Diameter:

76mm/89mm

Pipe Length:

1m,2m,3m

Highlight:

Drilling Machine Four Wheel Trailer

260mDTH Water Well Drilling Rig

Four Wheel Trailer Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig

Get Best Price

Video

Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine

Get Best Price

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig

Get Best Price

Contact Now

Product Description

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig Factory Direct Sales

Machine Introduction

The RCF260W wheeled water well drilling rig is a lightweight, efficient and versatile equipment. It is mainly used in industrial, civil and geothermal drilling. It has a compact structure, rapid progress, flexible maneuverability and a wide range of applications. This pneumatic drill is particularly suitable for pumping water in mountainous areas and rock formations.

This drilling rig is versatile and can be used with air compressors, mud pumps and even dry hydraulic drilling. It is not only suitable for drilling, but can also be used in any conditions, even for hole-forming purposes.

Technical Parameters

Bore diameter(hammer)	90-350mm
Bore depth	260m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Push force	4T
Lifting force	15T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	4000-5300Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.5T
Mud Pump flow	20L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.85×2.3M
Weight	6500Kg
Diesel engine	70KW engine

Application

This Water drilling machine is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

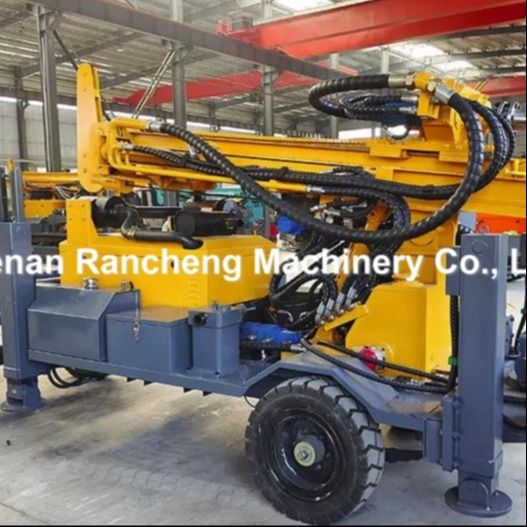

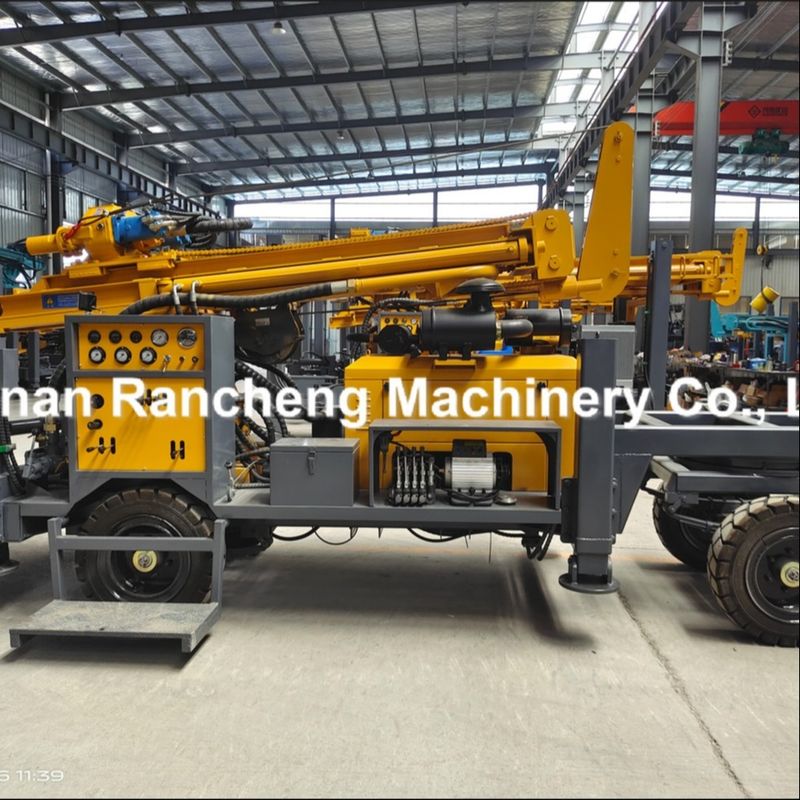

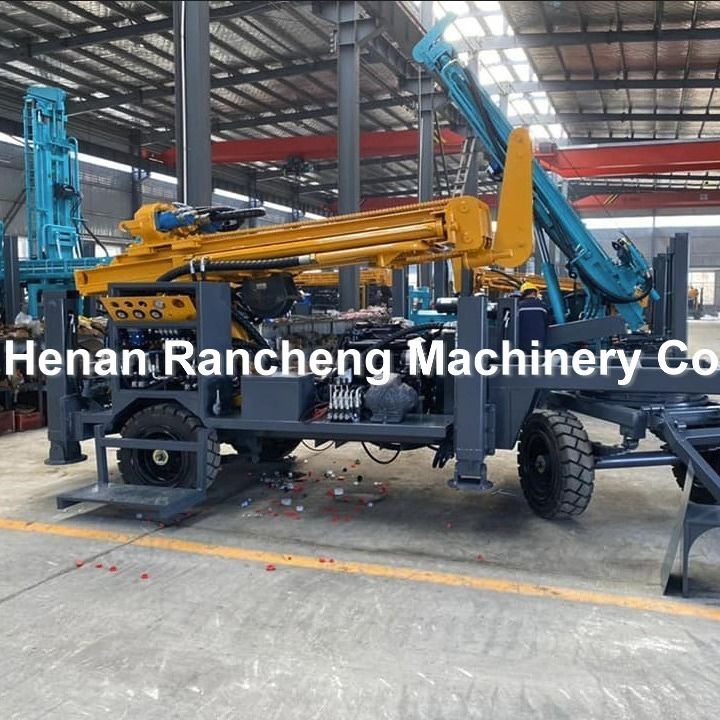

Machine Pictures

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig 0
