Name: Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF260WT
Price: 22,980.00 USD
Availability: InStock

Home > products > Borehole Drilling Machine >

Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig

Water Well Drilling Machine

Full Hydraulic Drilling Machine

Tractor Mounted Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260WT

Request A Quote

Product Details

Name:

RCF260WT Borehole Drilling Machine

Bore Depth:

260m

Hole Diameter (mm):

140 - 254

Feed Stroke (mm):

2000

Travelling Speed (km/h):

Climbing Angle:

25 Degree

Highlight:

Water Well Drilling Machine

Full Hydraulic Drilling Machine

Tractor Mounted Borehole Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$18980-$26980

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drilling Machine Four-Wheel Trailer Drilling Rig 260mDTH Water Well Drilling Rig

Get Best Price

Video

Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine

Get Best Price

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig

Get Best Price

Contact Now

Product Description

Tractor Mounted Water Well Drilling Machine 260m Full Hydraulic Borehole Rig

Machine Introduction

RCF260WT tractor mounted deep water well drilling rig is a product independently developed by our company.
It adopts the latest model and advanced hydraulic technology, with low energy consumption, large rotary torque, convenient hole making,drilling diameter 70-350 mm, drilling depth 100-200 meters. It can also be used for piers of small buildings such as farmhouses or factories, with a hole diameter of up to 500 mm and a depth of more than 60 meters.

Technical Parameters

Model	RCF260WT
Weight (t)	4.5T
Hole Diameter (mm)	140 - 254
Depth (m)	260
Feed Stroke (mm)	2000
Travelling Speed (km/h)	30
Climbing Angle	25 Degree
Tractor Horse Power (hp)	50
Air Pressure (Mpa)	1.7 - 2.5
Air Consumption (m^3/min)	17 - 31
Rod Diameter (mm)	76 & 89
Rod Length (mm)	2000
Lifting Force (t)	12
Rotation Speed (rpm)	45 -65
Output Torque (n.m)	5000 -5500
Dimension (mm)	400017002700

Application

These new generation down-the-hole drills are equipped with enhanced pneumatic power, which plays an important role in increasing the drilling speed. This water well drill rig is mainly used for geothermal drilling, farm irrigation, yard drilling, garden drilling and water well drilling.

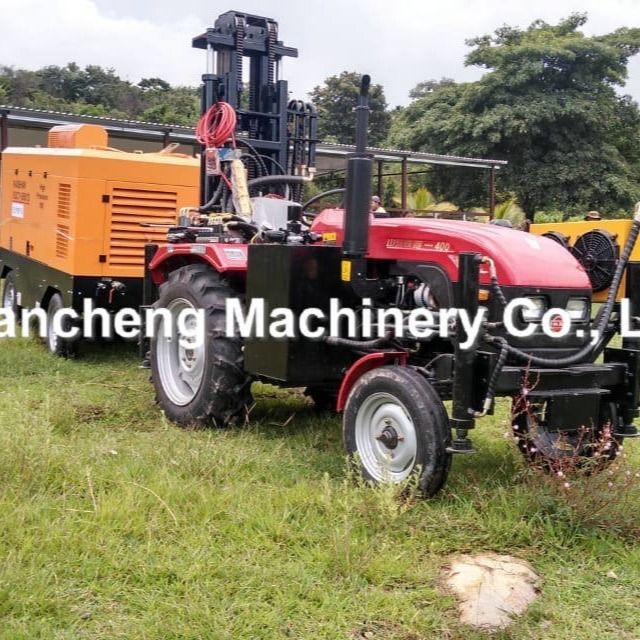

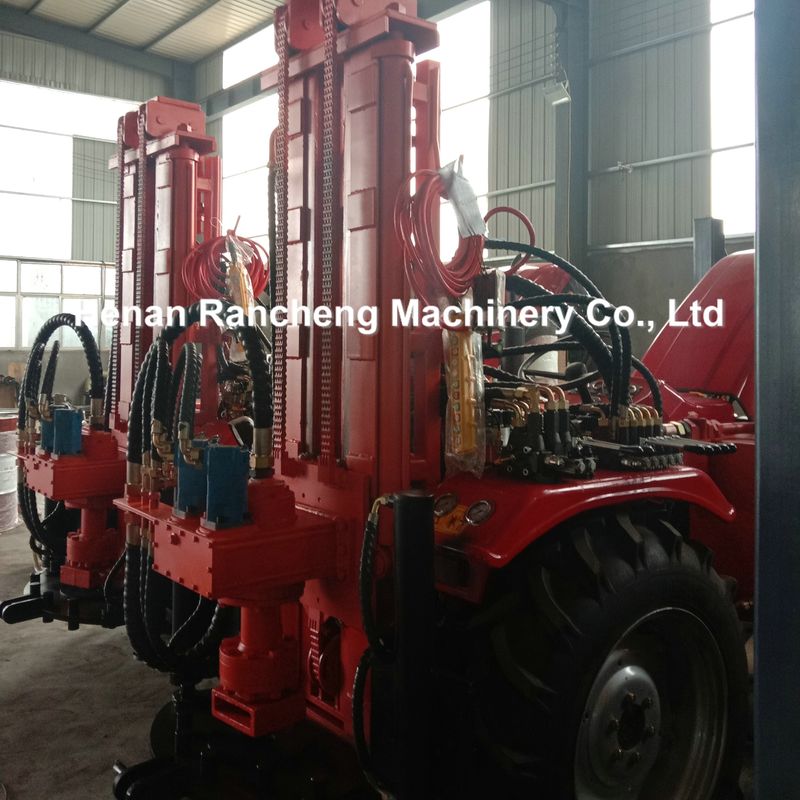

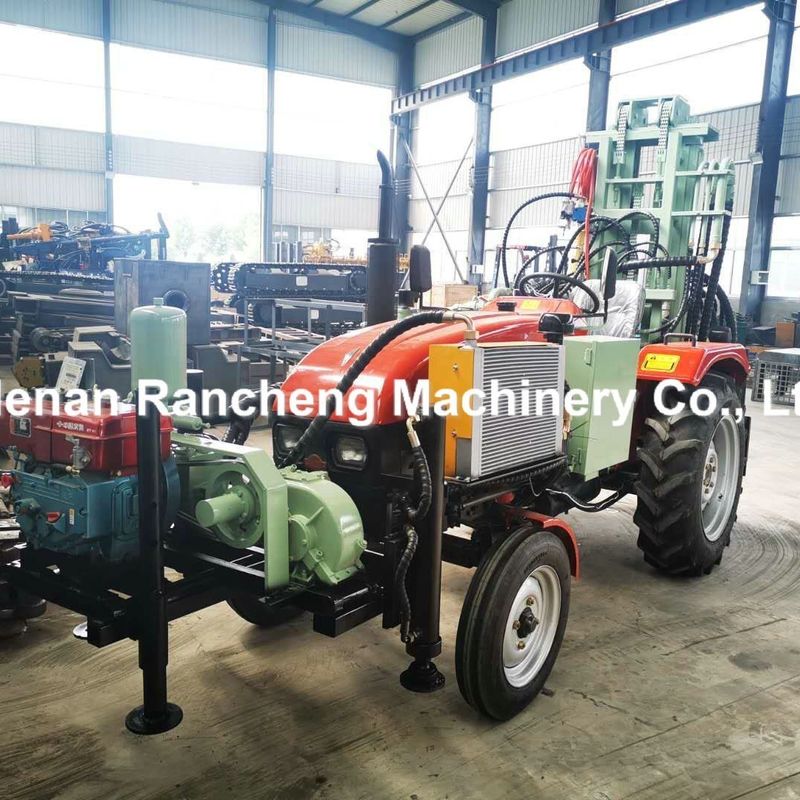

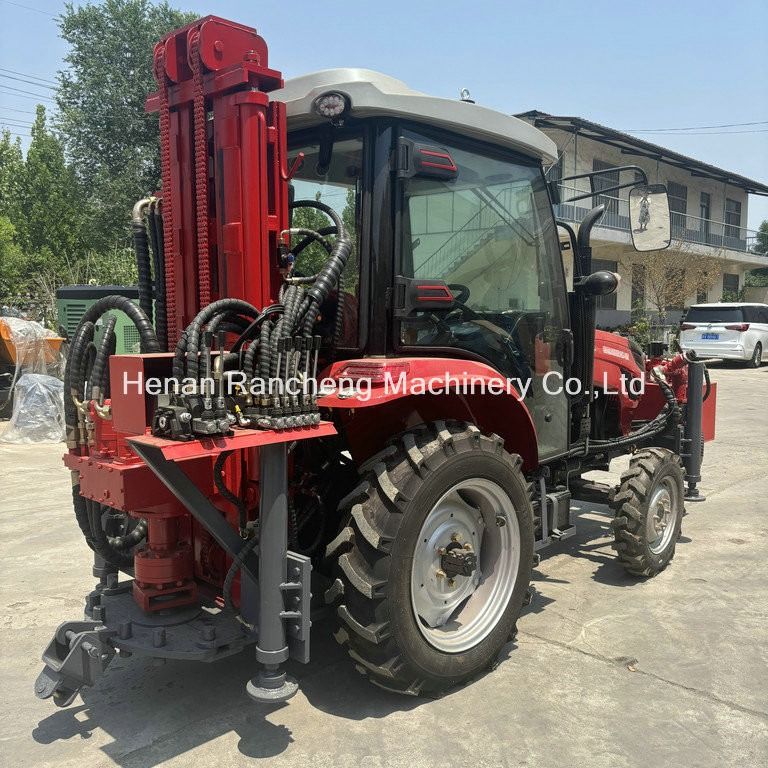

Machine Pictures
