200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine

200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine

pneumatic water well drilling machine

water well drilling machine 58kw

crawler mounted pneumatic water well drilling

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE,ISO 9001:2000

Model Number:

RCF200C

Contact Us
Request A Quote
200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine
200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine 200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine 200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine
Product Details
Name:
Water Well Drilling Machine
Model:
RCF200C
Bore Diameter:
90-350mm
Bore Depth:
200m
Air Consumption:
17-35m³/min
Air Pressure:
1.7-3.0Mpa
Pipe Diameter:
76mm/89mm
Pipe Length:
3m
Push Force:
4T
Lifting Force:
12T
High Hydraulic Leg:
1.4m
Dimension（L*W*H):
4000X1800X2300mm
Weight:
58KW Yuchai
Condition:
New
Warranty:
1 Year
HS Code:
8430412900
Highlight:

pneumatic water well drilling machine

,

water well drilling machine 58kw

,

crawler mounted pneumatic water well drilling

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

200m Crawler Mounted Water Well Drilling Machine 76KW Quanchai Diesel Engine



Product Description


This is an efficient and versatile down-the-hole pneumatic water well drilling rig. It is equipped with two motors that can be driven by top rotation and can be used with mud pumps and air compressors. The maximum drilling depth is 200 meters, the diameter range is 100-300 mm, and it is equipped with a 58KW diesel engine. It can drill different strata such as hard rock, clay, soil, and sand. The drilling rig is installed on hydraulic rubber crawlers and is easy to move. In addition, it is equipped with four 1.7-meter-high hydraulic outriggers to facilitate truck transportation.



Application



This water pump is mainly used for drilling wells for irrigation, household drinking water, geothermal wells, hydrological wells, civil water wells, industrial wells, etc.

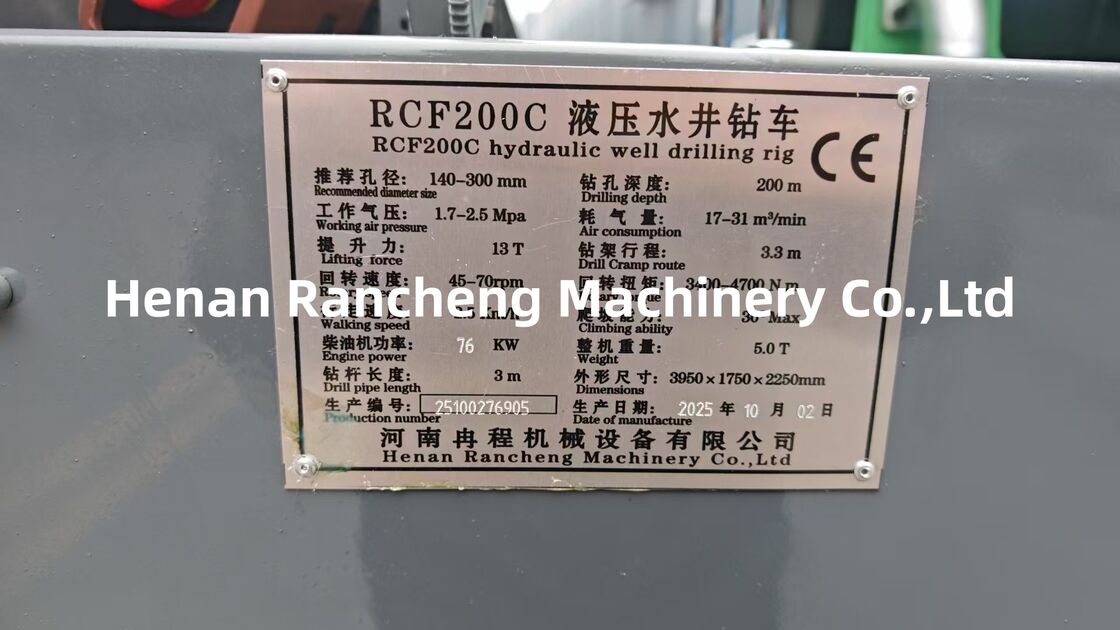

Technical Parameters



Model RCF200C
Bore diameter(Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4000X1800X2300mm
Weight 5000Kg
Diesel engine

58KW Yuchai



Product advantages



It has strong drilling ability and can quickly penetrate rocks and soil layers; high manufacturing quality and long-term durability; efficient power system and low fuel consumption; flexible and compact design, easy to move; advanced safety performance and compliance with environmental standards. Overall, an ideal choice for drilling professionals.

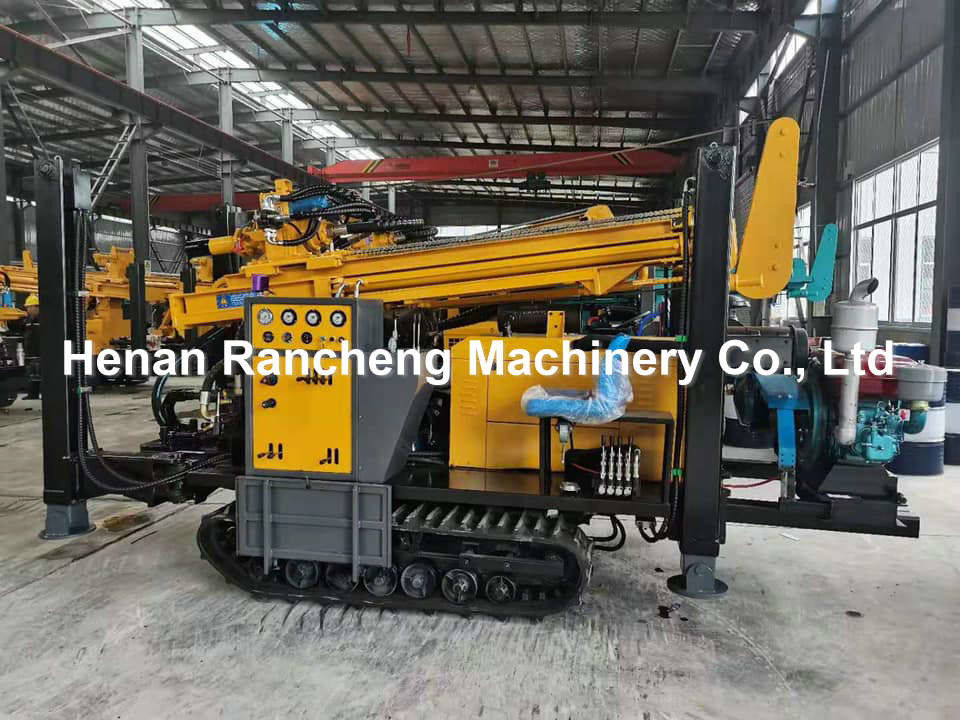

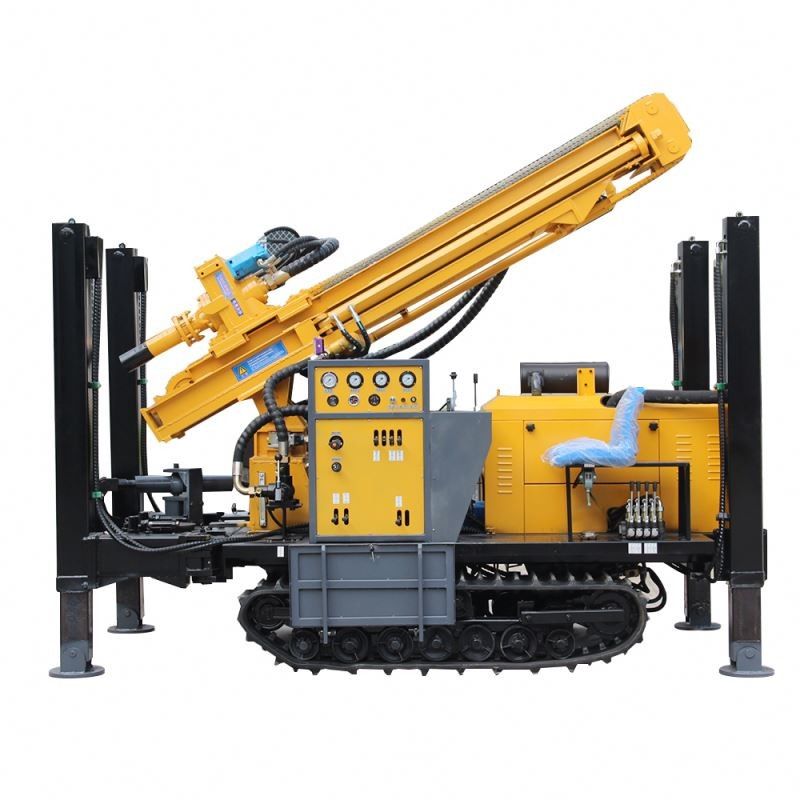

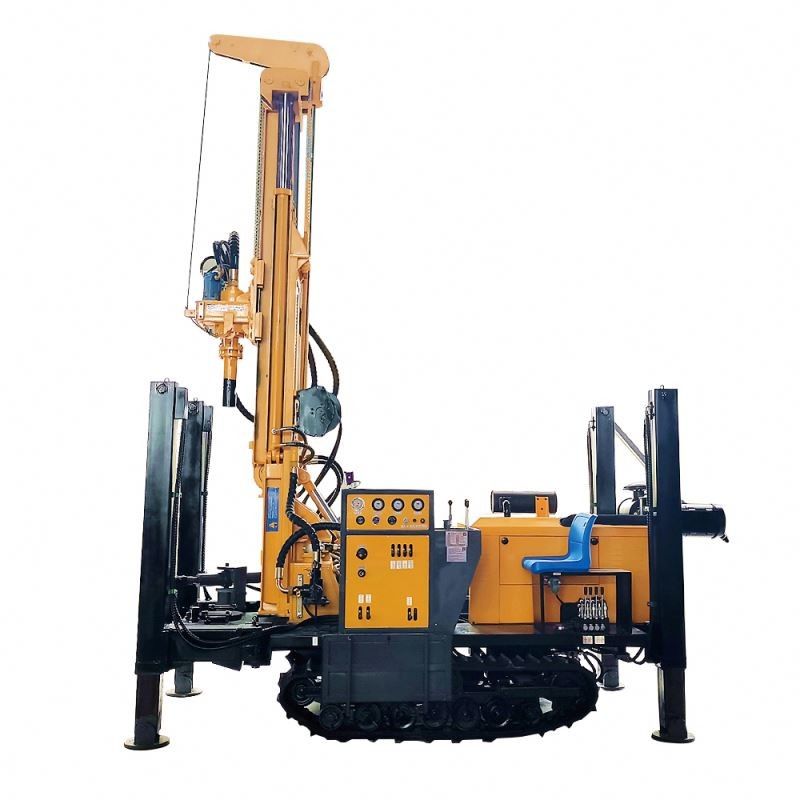

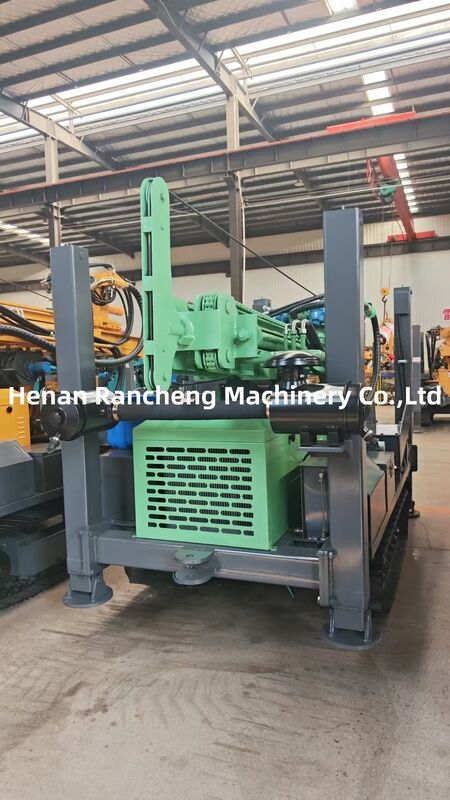

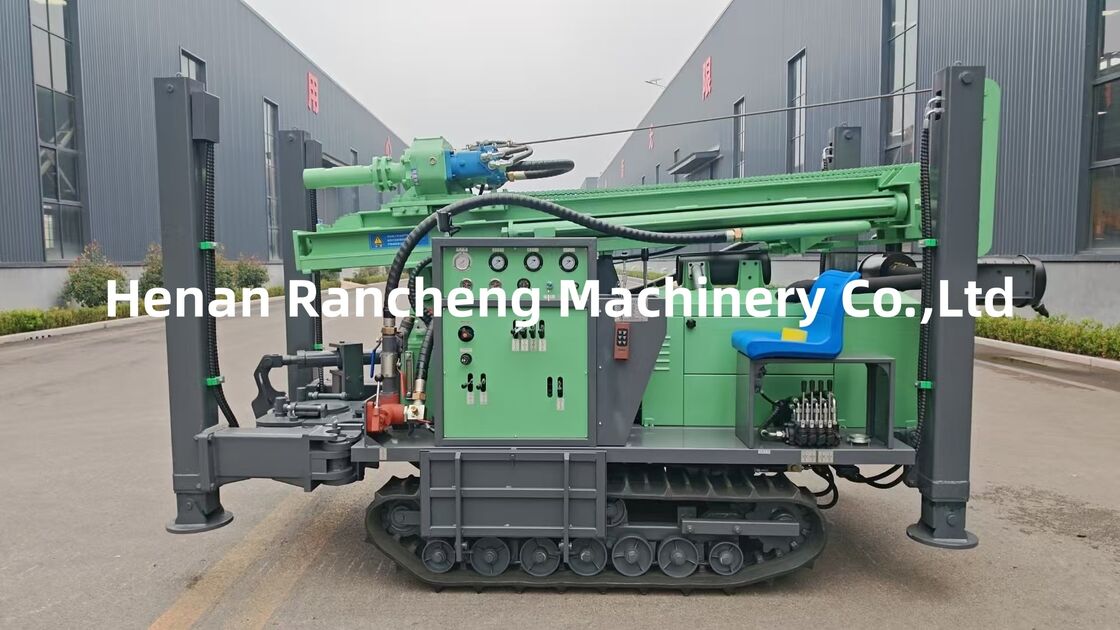

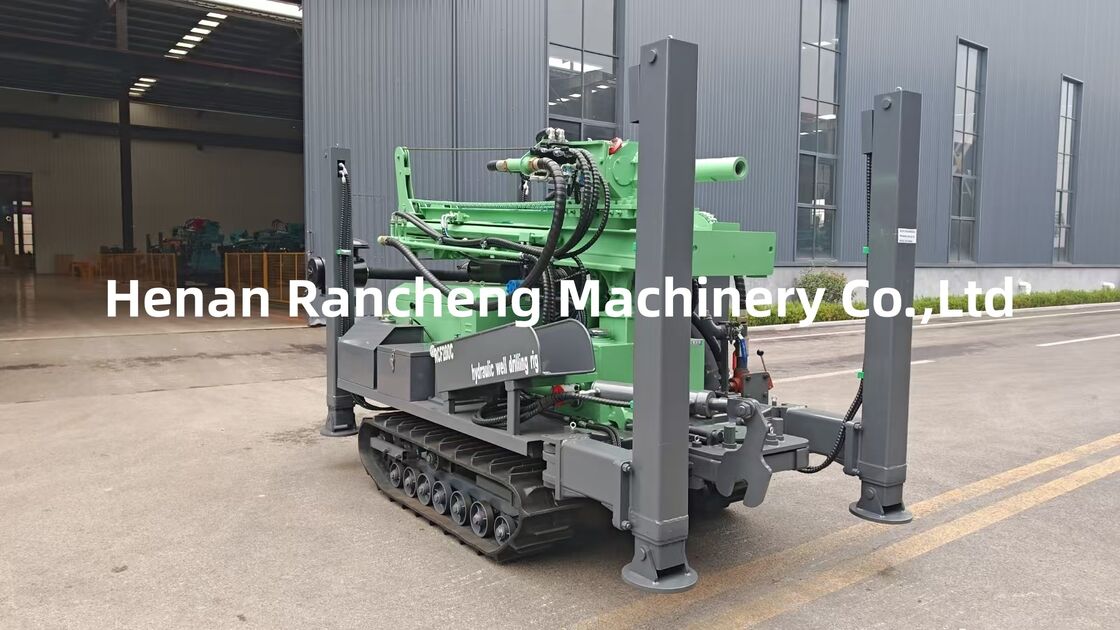

Machine picture display



200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine 0200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine 1

200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine 2

200m Crawler Mounted Pneumatic Water Well Drilling Machine 58KW Diesel Engine 3
