90mm - 140mm Dia DTH Drilling Equipment 45kw Diesel Engine Down The Hole Drill Rig

30m Depth 90 - 140mm Diameter DTH Drilling Rig 45kw Yuchai Diesel Engine Power

Machine Introduction

The RC100YA2 hydraulic down- the - hole drilling rig stands out for its advanced hydraulic technology. It not only performs well in terms of air consumption, but also has strong rotational torque. Its compact structural design allows the sled to be firmly supported on the ground during the drilling process, ensuring the stability and accuracy of drilling. This drill is also equipped with an innovative dual - motor turret slewing mechanism, making it easy to perform open - pit blasting drilling operations and capable of handling large - diameter drilling needs. The efficient air compressor system provides strong rotational torque output, further improving the working efficiency and performance of the drilling rig, making it a powerful assistant in engineering construction.

Hydraulic blast hole drilling rigs specially designed for open pit mining, power station construction, road construction and other fields are mainly used to drill holes in various types of rocks to meet blasting operations or other engineering needs. It has strong drilling capacity and stable performance, can adapt to rocks of different hardness and thickness, and provides reliable support and services for engineering construction.

Machine Specifications

Machine Advantages

First of all, its hydraulic motor has the characteristics of low speed but high torque, ensuring stable working performance. Secondly, the cylinder propulsion method is used to ensure the stability of performance. Equipped with a two - stage air filter, it not only ensures air quality, but also extends the service life of the diesel engine. The multi - valve control system makes operation more convenient, while automatic monitoring of hydraulic and propulsion pressure further improves operational reliability. In addition, it is equipped with a track tensioning device to ensure the reliability of operations, and it also has a spotlight to facilitate night operations and maintenance. It has a compact structure and safe operation, and is suitable for operations in rugged sites with flexible movement, strong climbing ability and convenient perforation displacement.

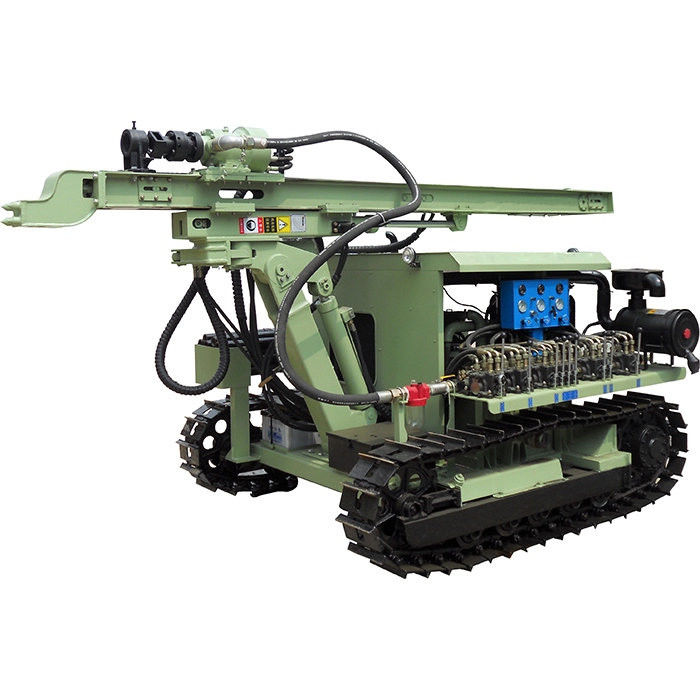

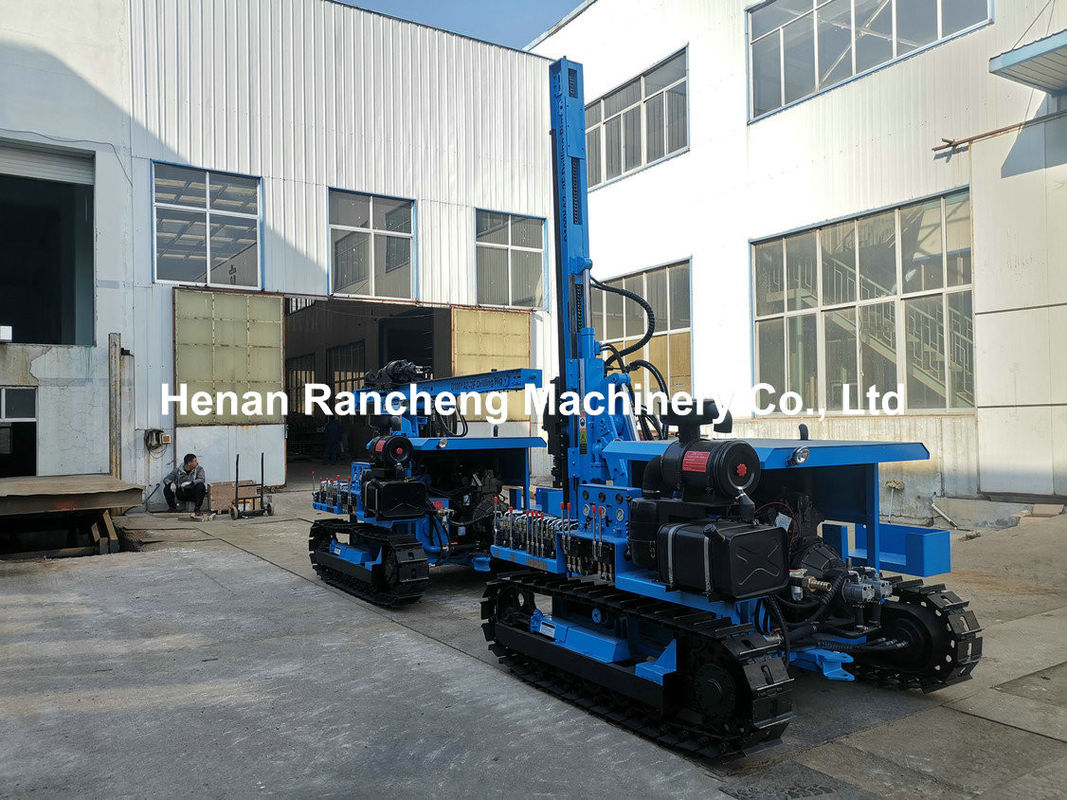

Machine Pictures
