Small HDD Drilling Rig 62kw Thunder Power Remote Control Water Injection System

Small HDD Drilling Rig 62kw Thunder Power Remote Control Water Injection System

Small HDD Drilling Rig

HDD Drilling Rig Remote Control

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCHD-160

Contact Us
Request A Quote
Product Details
Name:
HDD Drilling Rig
Model:
RCHD-160
Engine Power:
62kw Thunder Power
Max. Push & Pull Force:
160KN/16T
Walking Speed:
2km/h
Torque:
3200N.m
Dimensions (L×W×H):
3700*1800*1200mm
Rig Weight:
2.2t
Traveling Form:
Remote Control
Water Injection System:
160 Type Three-cylinder Mud Pump
Highlight:

Small HDD Drilling Rig

,

HDD Drilling Rig Remote Control

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Remote Control Water Injection System HDD Drilling Rig 62kw Thunder Power



Product Description



A small directional drill is a special construction equipment that can be used to lay underground pipes, cables and other public facilities without damaging the surface. It is suitable for working environment temperatures between -15°C and +45°C.



Horizontal directional drilling technology is a new technology that combines the directional drilling technology of the petroleum industry and traditional pipeline construction methods. This technology has the advantages of fast construction speed, high construction accuracy and low cost. Horizontal directional drilling equipment continues to develop, and ultra-depth guidance and monitoring technology is also widely used. This equipment is usually suitable for laying steel pipes and PE pipes with a length of about 300 meters, and the maximum pipe laying length can reach 200m. It is suitable for various soil conditions, can be constructed from soft soil to hard rock, and has broad application prospects.



Technical Parameters



Model RCHD-160
Rig weight 2.2t
Dimensions (L×W×H) 3700*1800*1200mm
Engine power 62kw Thunder Power
Max. push & pull force 160KN/16T
Traveling form remote control
Walking speed 2km/h
Water injection system 160 type three-cylinder mud pump
Max. pressure of mud pump 2.8MPa
Max. flow of mud pump 160L/min
Entry angle 28°
Departure angle 20°
Climbing ability 35°
Torque 3200N.m



Application



It is widely used in the laying of pipelines for water supply, electricity, telecommunications, natural gas, coal gas, oil, etc. It is suitable for various geological conditions and is especially good at processing sand, clay, pebbles and other strata. Traditional excavation methods can encounter difficulties in these conditions, but directional drills can complete construction tasks more efficiently and safely.



In sandy soil strata, directional drilling rigs reduce the impact of excavation on the environment, avoid ground settlement and damage, and can drill passages underground without the need to excavate the entire route, saving time and costs.



In clay strata, directional drilling rigs can easily pass through sticky soil, reducing construction difficulties caused by soil adhesion. By rotating the drill bit and spraying mud to soften and remove the soil, the pipe can be laid smoothly.



In strata such as pebbles, directional drilling rigs use strong thrust and torque to penetrate hard strata to lay pipes. Its traversing capabilities make it ideal for handling these types of geological conditions.

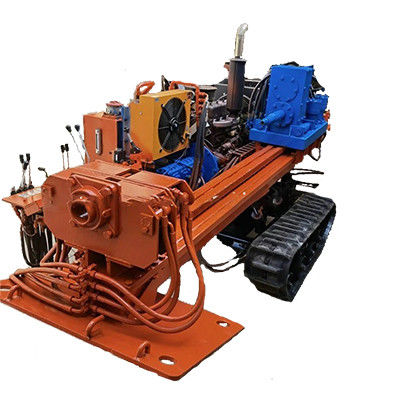

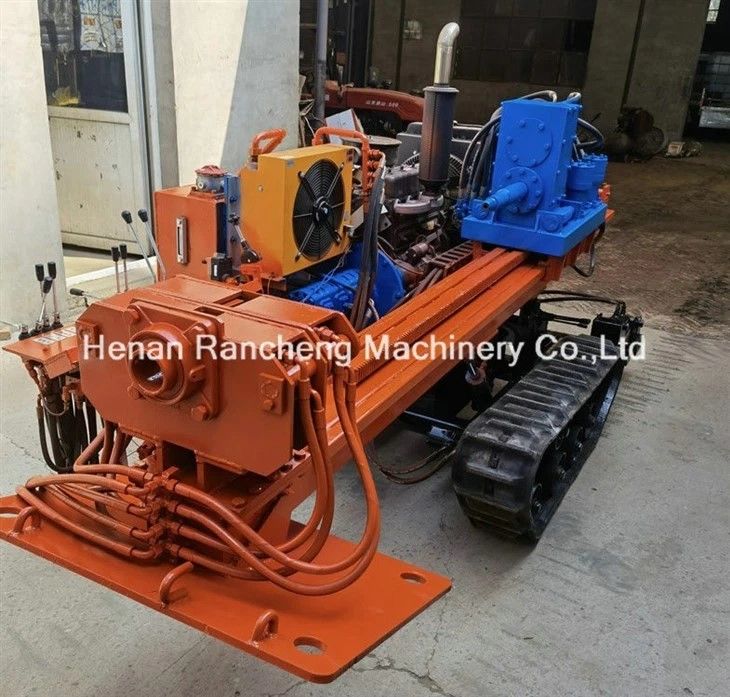

Machine picture display



Small HDD Drilling Rig 62kw Thunder Power Remote Control Water Injection System 0Small HDD Drilling Rig 62kw Thunder Power Remote Control Water Injection System 1Small HDD Drilling Rig 62kw Thunder Power Remote Control Water Injection System 2
