600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute

600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute

600 L/min Drilling Mud Pump

Drilling Mud Pump 55kw

small mud pump 55kw

Place of Origin:

China

Certification:

CE, ISO 9001:2000

Model Number:

BW600 / 10

Contact Us
Request A Quote
Product Details
Name:
Drilling Mud Pump
Model:
BW600 / 10
Cylinder Diameter:
100mm
Piston Stroke:
110mm
Flow Rate:
600/415/280/195 L/min
Power Input:
55kw
Over Dimensions:
1500X890X1230mm
Weight:
1400kg
Highlight:

600 L/min Drilling Mud Pump

,

Drilling Mud Pump 55kw

,

small mud pump 55kw

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by LCL
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

600 L / min Flow Rate 110mm Piston Stroke Drilling Mud Pump 55 kw Power Inpute



Machine Description



The mud pump plays a vital role in core drilling or drilling. By supplying flushing fluid to the drilling well, it can not only discharge clean water, but also effectively discharge thick mud to ensure the smooth progress of drilling operations. The design of its horizontal three - cylinder double - acting loft Detroit piston pump gives it the advantages of small size and light weight, making it particularly suitable for transportation and use in areas with inconvenient transportation such as mountainous areas.



The BW600 / 10 mud pump is designed with mobility and operability in mind. It is compact and lightweight, making it easy to move and maneuver. According to user needs, electric motor, diesel engine or hydraulic motor can be selected to drive to meet the power supply needs of different construction sites. In addition, it can be equipped with wheels as needed, making it easier to move and arrange between construction sites, improving work efficiency and flexibility.



Technical Parameters



Model BW600/10
Cylinder diameter 100mm
Piston Stroke 110 mm
frequency of stroke  232/162/109/76times/min
Flow rate  600/415/280/195L/min
Pressure  3.5/5/7.5/10Mpa
Power input 55KW
Diameter of suction pipe 127mm (5”)
Diameter of discharge pipe 63.5 mm (2-1/2”)
Overall dimensions (LxWxH)  1500X890X1230mm
Weight  1400kg



Machine Application



The BW600 / 100 mud pump has the characteristics of three cylinder diameters and four speeds. Its displacement and hole depth can be adjusted according to needs, and it can also be used for cement pouring work. The pump is widely used in the engineering field, covering construction drilling(such as survey, geotechnical survey, railways, highways, ports, bridges, water conservancy and hydropower, tunnels, well engineering, industrial and civil construction), exploration (such as coal mine exploration, ore exploration ), water well drilling (especially small-diameter water well drilling), pipeline installation (such as heat pump geothermal pipeline installation) and foundation piling (such as small-diameter hole foundation piling drilling ) and many other fields.

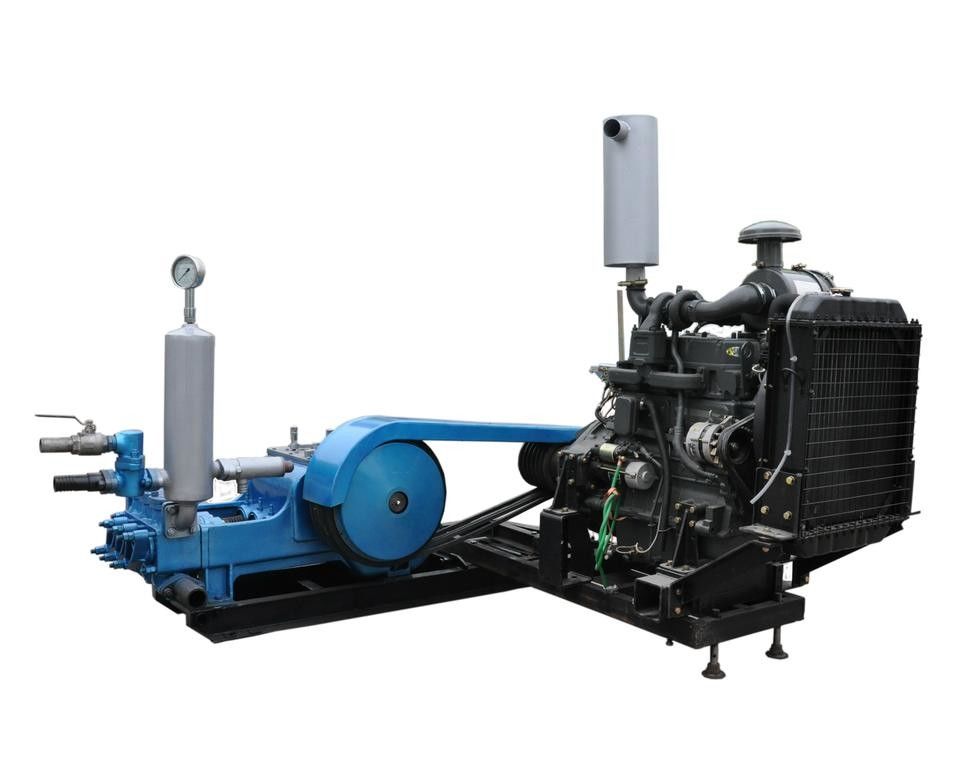

Machine Pictures



600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute 0600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute 1600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute 2

600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute 3

600 L/Min Flow Rate Small Drilling Mud Pump 110mm Piston Stroke 55kw Power Inpute 4
