Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed

Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed

water well drill rig 91kw

crawler mounted water well drill rig

91kw water well drill machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed
Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed
Product Details
Name:
Water Well Drilling Machine
Model:
RCF350C
Bore Diameter:
140-350mm
Bore Depth:
350m
Max Torque Of The Rotary:
6200-8500N.m
Rotary Speed:
55-115r/min
Weight:
8600kg
Diesel Engine:
91KW Yuchai Engine
Drilling Way:
Air Compressor Drilling Or Mud Pump Drilling
Operating System:
Full Hydraulic Operation
Highlight:

water well drill rig 91kw

,

crawler mounted water well drill rig

,

91kw water well drill machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

350m Bore Depth Crawler Mounted Water Well Drilling Machine 91KW Yuchai Engine

Product Description

The RCF350C hydraulic crawler water well drilling machine uses advanced technology and high - quality materials in the manufacturing process to ensure its high quality and reliability. This drilling rig is easy to operate, has excellent drilling capabilities and stability, and is suitable for water well drilling under various geological conditions. Its price is favorable and cost - effective, and it has been favored and praised by customers. In European and American markets, sales are very hot due to its high efficiency and reliability. There is a wide range of drilling diameters to meet the needs of different projects. At the same time, it adopts the design of top rotary drive and can be used in conjunction with mud pumps and air compressors, which improves the efficiency and flexibility of drilling operations.

Technical Parameters


ModelRCF350C
Bore diameter(Hammer)140-350mm
Bore depth350m
Air consumption17-35m³/min
Air pressure1.7-3.5Mpa
Pipe diameter89mm/102mm
Pipe length1m/2m/3m/6m
Lifting force22T
Lifting speed3m/min
feeding speed0.5-5m/min
Fast lifting speed30m/min
Fast feeding speed50m/min
Max torque of the rotary6200-8500Nm
Rotary speed55-115r/min
Hoist lifting capacity2T
Mud Pump flow450L/min (option)
High hydraulic leg1.5m
Feeding efficiency10-35m/h
Travel speed2.5Km/h
Climb ability30°
Dimension(L*W*H)6000×2000×2550mm
Weight8600Kg
Diesel engine91KW Yuchai engine
Drilling wayAir compressor drilling or mud pump drilling
Operating systemFull hydraulic operation


After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

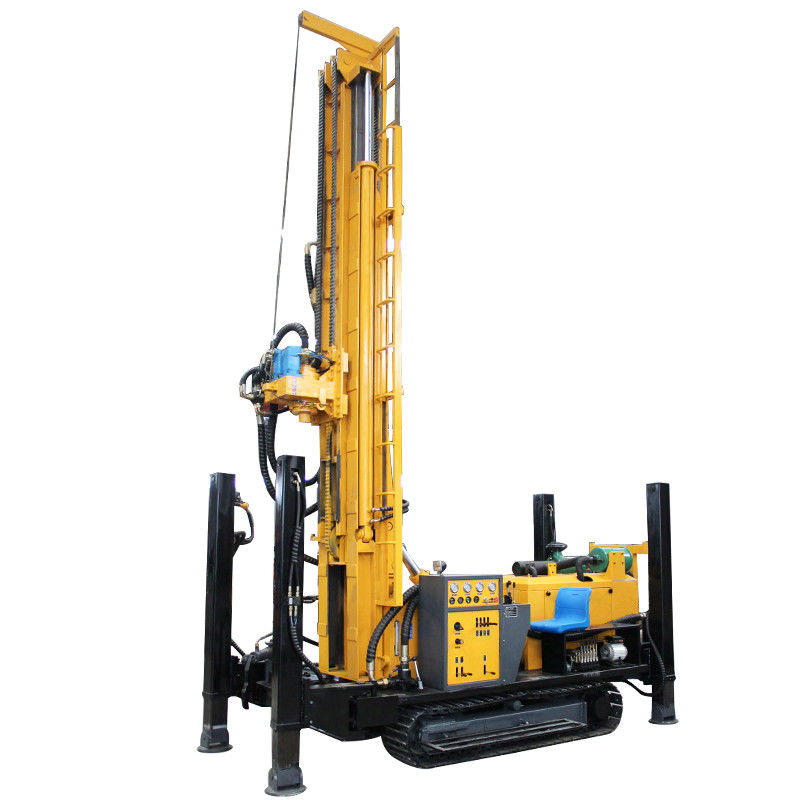

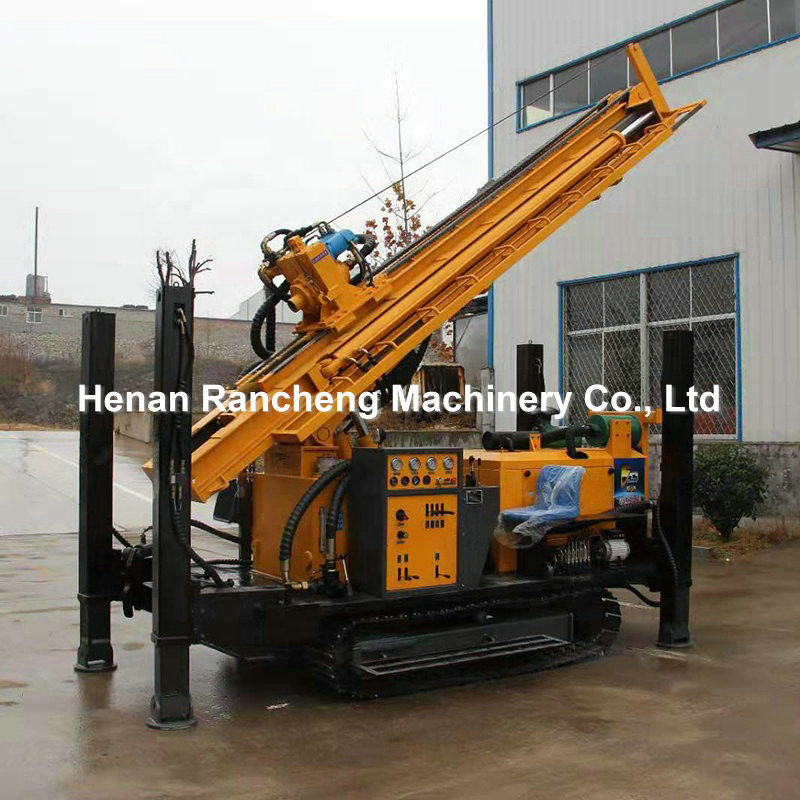

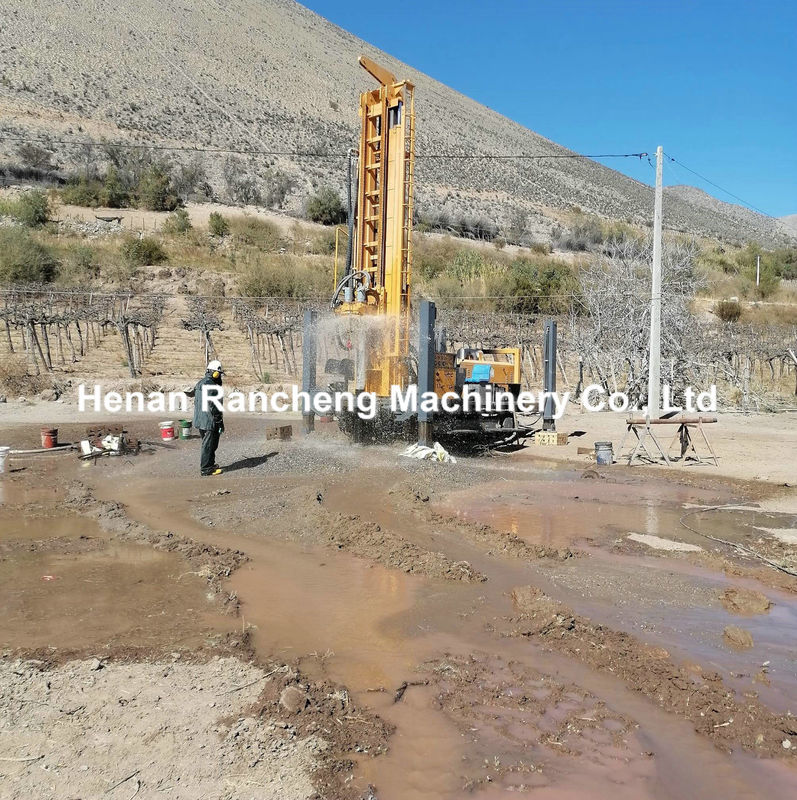

Machine picture display

Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed 0Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed 1
Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed 2
Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed 3
Crawler Mounted Water Well Drill Rig 91KW Engine 55r/min - 115r/min Rotary Speed 4
