65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig

65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig

65kw water well drilling machine

water well drilling machine 75mm

65kw hydraulic well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ350D

Contact Us
Request A Quote
65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig
65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig 65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig
Product Details
Name:
Water Well Drilling Machine
Model:
RCJ350D
Drilling Depth:
350m
Borehole Diameter:
75-350mm
Drilling Angle:
90°
Rated Power:
65KW
Transport Dimension:
6000*1650*2000mm
Weight:
6500kg
Highlight:

65kw water well drilling machine

,

water well drilling machine 75mm

,

65kw hydraulic well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

350m Depth 75 - 350mm Diameter Water Well Drilling Machine 65KW Rated Power



Product Description



RCJ350D hydraulic water well drilling machine is top equipment designed for the fields of construction, geological exploration and mining engineering. It has many advantages: universal and efficient, adaptable to various formations, and excellent performance; strong drilling capacity, advanced hydraulic system and hydraulic chuck; convenient operation and maintenance, humanized design to reduce maintenance costs; high safety and stability, and multiple safety functions to protect operators Safe; environmentally friendly, low noise and low emissions comply with environmental requirements; cost-effective, comprehensive design improves efficiency and saves costs. Overall, the RCJ350D is a high-performance, multi-functional, safe, environmentally friendly, cost-effective drilling equipment that is suitable for a variety of operating scenarios.



Technical Parameters



Working stratum Loose soil layer and bed rock(hardness:F6~20)
Drilling method

Mechanical top head rotation, hydraulic feeding,

work with mud pump or DTH.
Drilling capacity Drilling depth for water well 350m (152mm-203mm)
  NQ wireline coring 600m
  Borehole diameter Φ75-Φ350mm
Drilling angle degree 90°
Power Diesel engine model YN33GBZ
  Rated power 65kw
  Rated speed 2400rpm
Drive head Rotary speed

Forward 27,51,93,129,156,193,247,437,737,901 r/min

Reversal 48,219 r/min
  Max. torque 10500N.m
Feeding system Lifting capacity 120KN
  Thrusting capacity 85KN
Winch capacity Hydraulic tool winch (optional) 1.5T
  Mechanical winch 5.5T
Drill pipe Drill pipe dia. Φ60/Φ76/Φ89 NQ/BQ/HQ
  Drill pipe length 3000mm
Crawler chassis Walking speed 0~2km/h
  Climbing angle 25°-30°
Dimension Transport 6000*1650*2000mm
  Working 3600*1650*6000mm
Weight 6500kg
Air compressor (optional ) Air pressure 16~35m³/min
  Air consumption 10.5~24.6bar
Mud pump Optional items BW160/BW200/BW250



Product Features



The RCJ350D hydraulic water well drilling rig has many unique designs, such as hydraulic steel tracks, four hydraulic square tube high legs, user - friendly design, auxiliary rod unloading cylinder, efficient hydraulic system, AMT automated manual transmission, dual oil pump oil supply and foldable Auxiliary tower etc. These designs enable the drilling rig to have strong off - road capabilities and stability, make operation more convenient, and shift gears more easily. At the same time, it can quickly adjust power, improving operating efficiency and productivity.

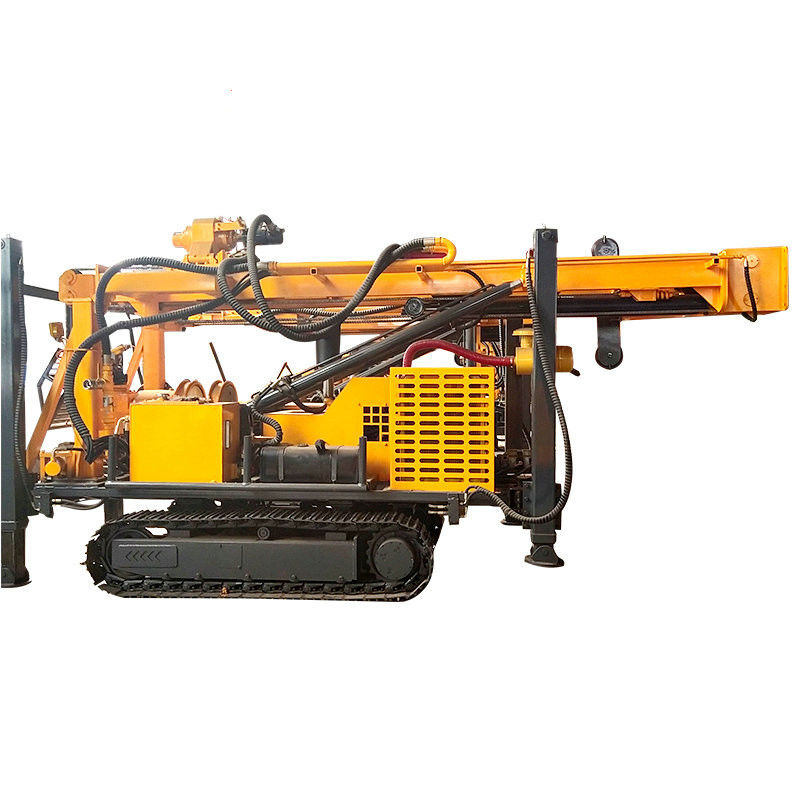

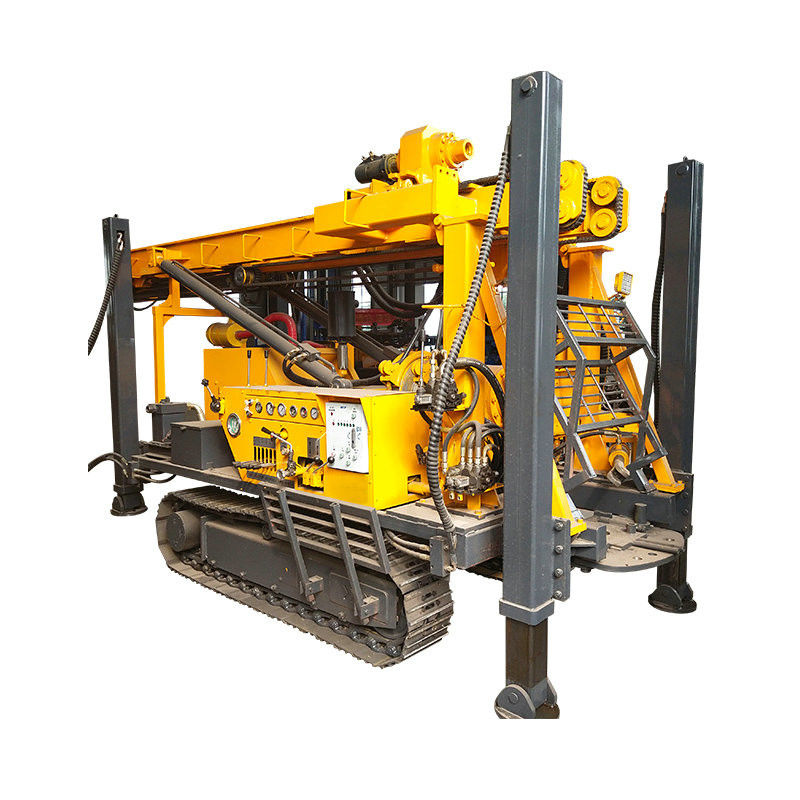

Product Image



65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig 065KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig 165KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig 265KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig 3

65KW Water Well Drilling Machine 75mm - 350mm Diameter Hydraulic Well Drilling Rig 4
