Small Crawler Water Well Drilling Machine 42KW Engine 150m Drilling Depth

150m Drilling Depth Small Crawler Water Well Drilling Machine 42KW Yuchai Engine

Machine Description

The RCF150S small rubber-tracked walking water well drilling rig stands out in the market. Its differences from other similar products are mainly reflected in three aspects. First of all, its compact size and lightweight design give it obvious advantages in transportation and portability, while the design of the rubber tracks facilitates its movement on rugged terrain, making it ideal for drilling in rural or hard - to - reach areas. conditions were created. Secondly, the RCF150S uses a powerful engine and high-pressure hydraulic system, which makes it highly efficient and reliable during the drilling process, and can easily cope with various geological conditions, while the 150m drilling depth makes it suitable for various geological conditions. Ideal for all drilling needs. Finally, its simple and easy - to - use design, clear operating panel and equipped with safety features provide operators with convenience and security, making the drilling process safer and more efficient. Taken together, the RCF150S small rubber track walking water well drilling rig provides reliable solutions for various application scenarios with its excellent portability, high efficiency and ease of use, thus having a clear competitive advantage in the market.

Machine Specifications

Machine Advantages

The RCF150S small rubber track walking water well drilling rig has many outstanding features. First of all, it is small in size, light in weight, compact in structure, and flexible in operation. It weighs only 2300KGS and measures 2300X1200X1900mm, making it easy to carry and quickly deploy. Secondly, it adopts the design of down - the - hole pneumatic water drilling rig, equipped with dual motor rotating head, top drive, equipped with mud pump and air compressor, and the dual rotating motors enhance the rotation torque and speed. Third, it has strong power and large capacity. It is equipped with a 42KW Yunnei engine and has a maximum drilling depth of 150m, which can meet the drilling needs in the diameter range of 90 - 300mm. Secondly, the rubber track - mounted design makes movement more convenient, and the fully hydraulic legs and operating system ensure the stability and convenience of drilling operations. In addition, the drilling rig also has a fully hydraulic operating system, and the hydraulic system, supporting configuration and appearance have been optimized to improve performance and work efficiency. Finally, due to its compact and flexible nature, it is suitable for operations in courtyards and narrow spaces.

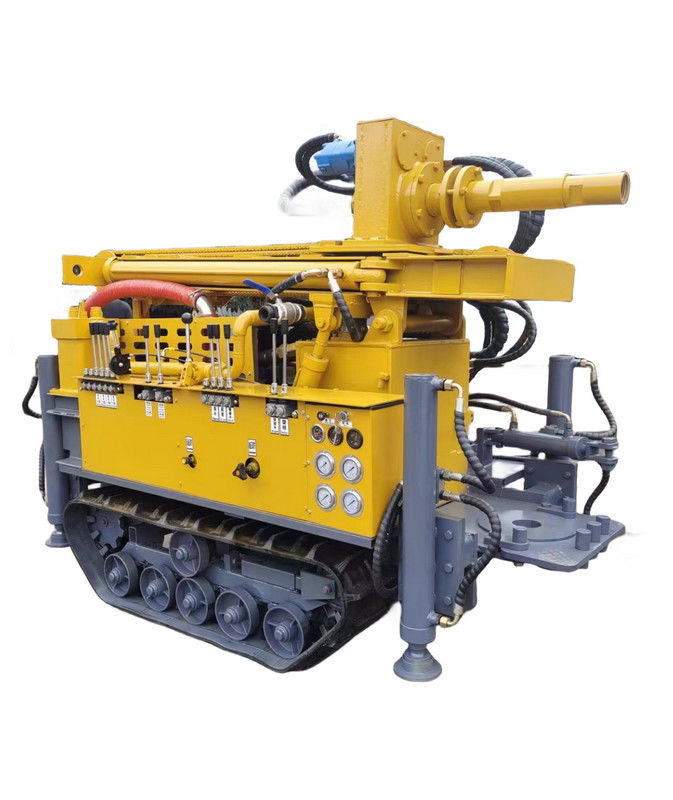

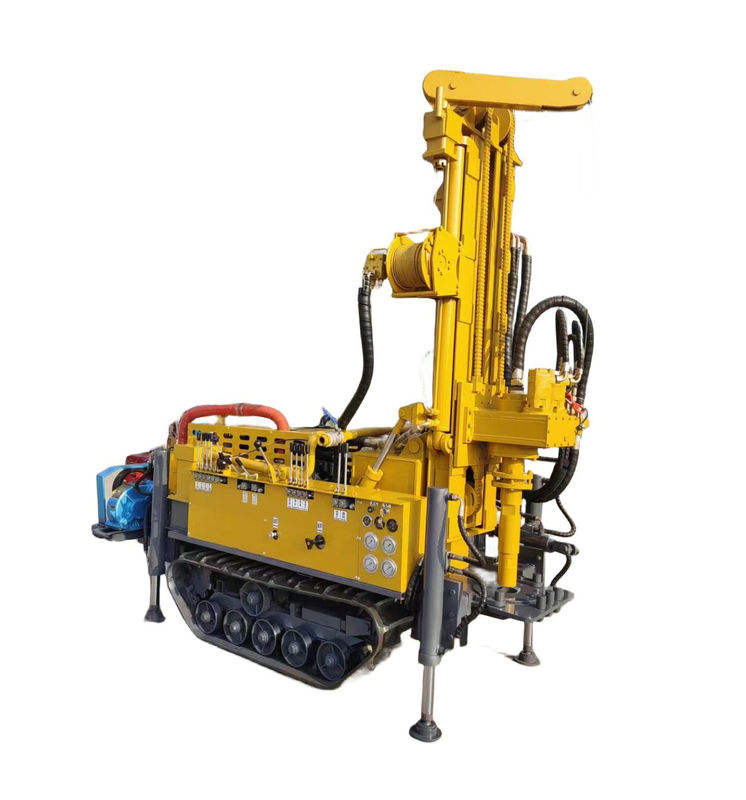

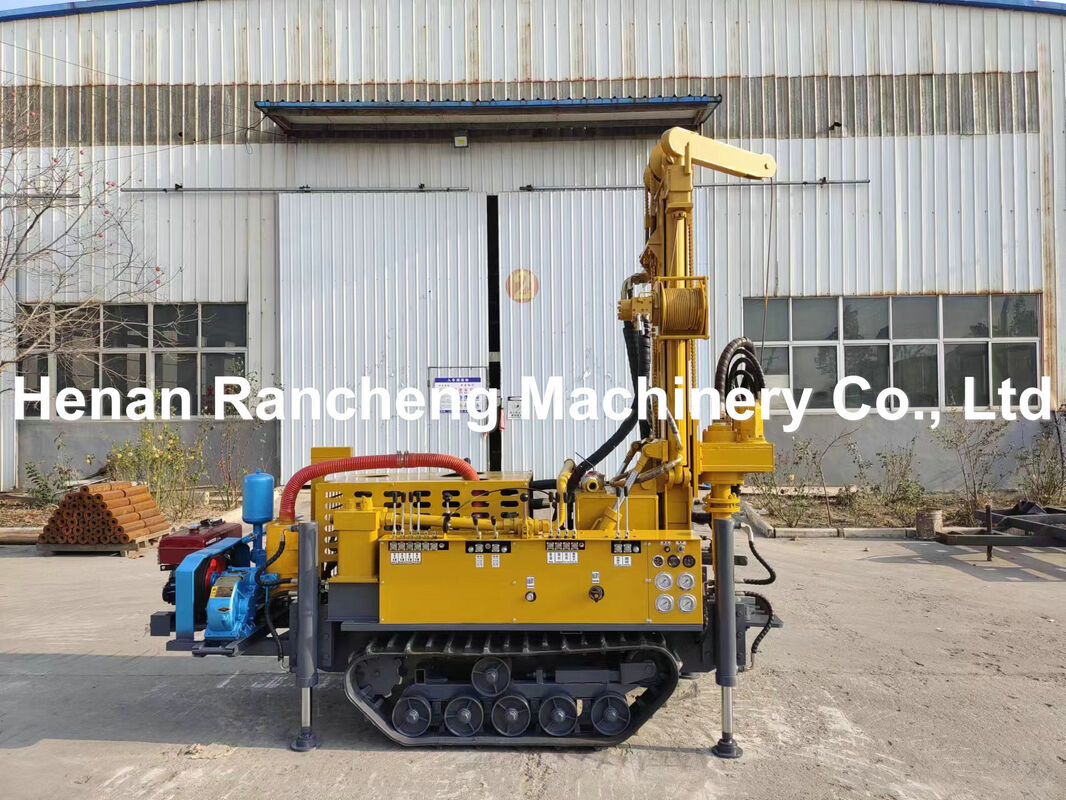

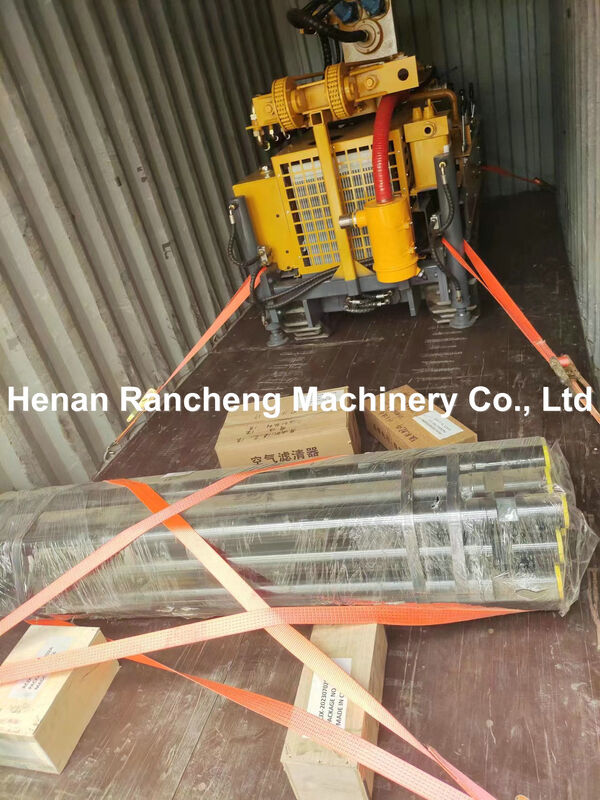

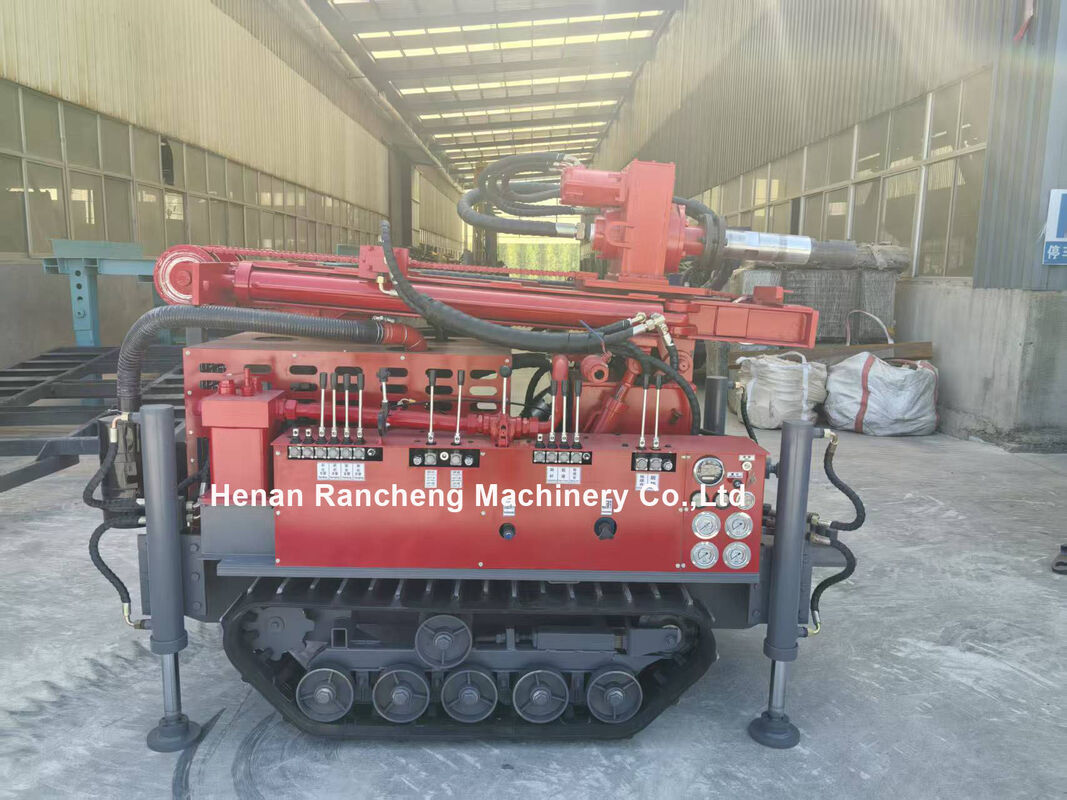

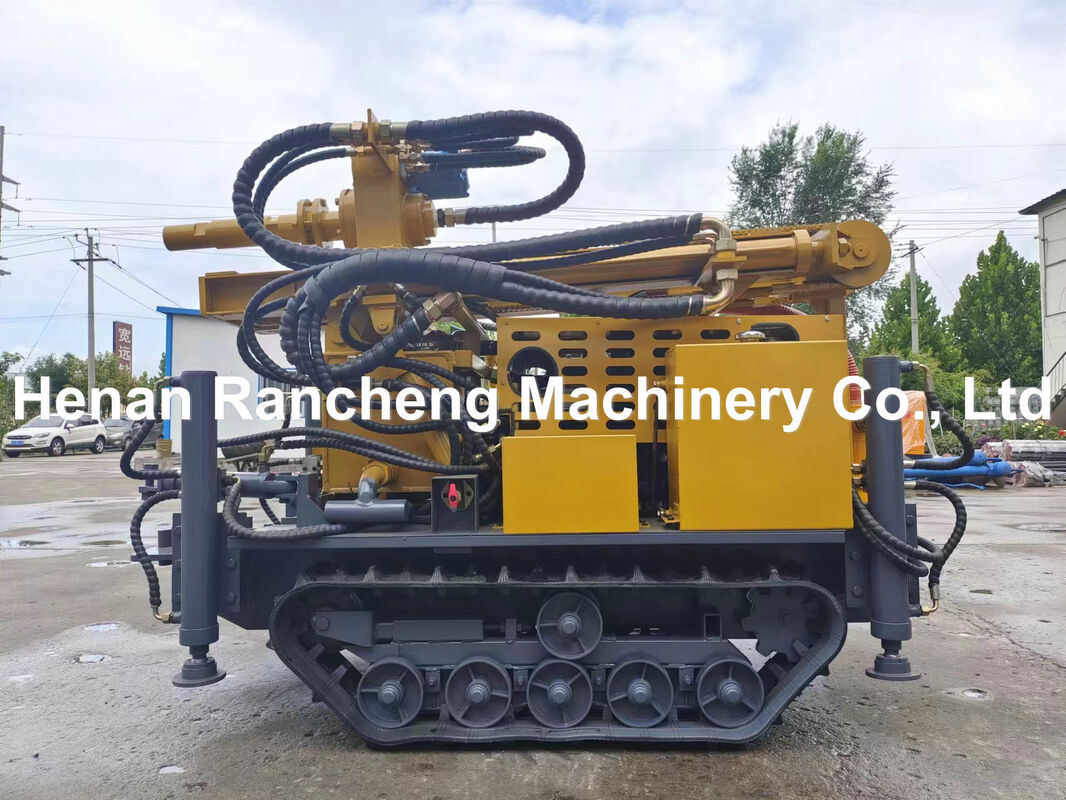

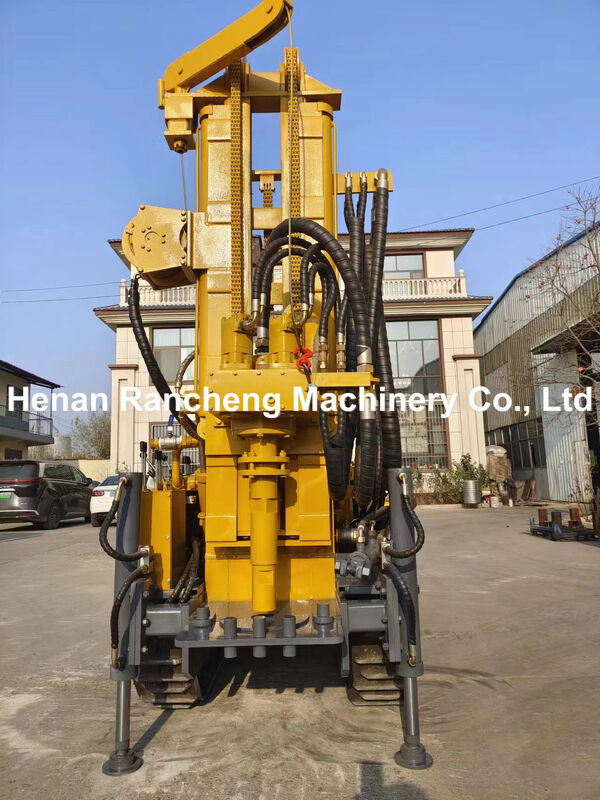

Machine Pictures
