400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine

400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine

water well drilling machine 92kw

crawler mounted water well drilling machine

400m water well drilling rig machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF400C
Drilling Depth:
Max 400m
Drilling Dia:
140 - 350mm
Diesel Engine:
92KW Yuchai Engine
Weight:
9200Kg
Highlight:

water well drilling machine 92kw

,

crawler mounted water well drilling machine

,

400m water well drilling rig machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine



Machine Introduction



Featuring its powerful 92KW Yuchai diesel engine and durable steel crawler travel system, the RCF400C water well drilling machine is able to adapt to a variety of terrains, including hard rock and sandstone, ensuring stability and operability even at the most remote drilling sites. Also capable. Widely used in agriculture, industrial water well drilling, and geothermal energy and mining projects, it not only saves significant time and costs by eliminating the need for excavation, but is also environmentally friendly with no harmful emissions. It is simple and safe to operate and has a variety of safety functions, making it easy for even inexperienced people to get started.



Overall, the RCF400C water well drilling machine is a reliable and efficient drilling machine and is the first choice for all types of drilling projects.



Technical Parameters



Bore diameter(Hammer) 140-350mm
Bore depth 400m
Air consumption 17-36m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1.5m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
Max torque of rotary 6200-9000Nm
Rotary speed 66-135r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2100×2550mm
Weight 9200Kg
Diesel engine 92KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling

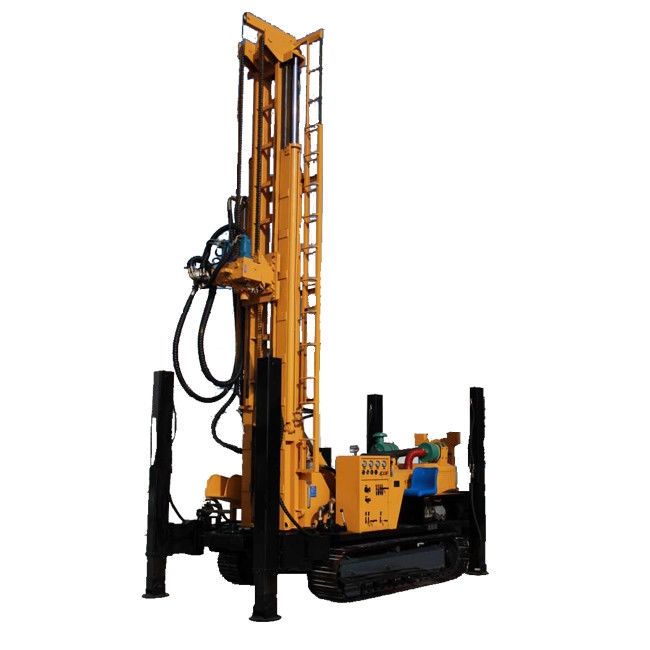

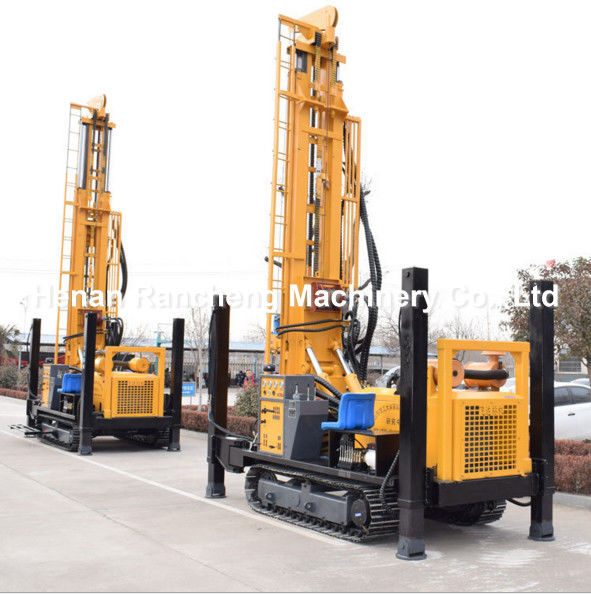

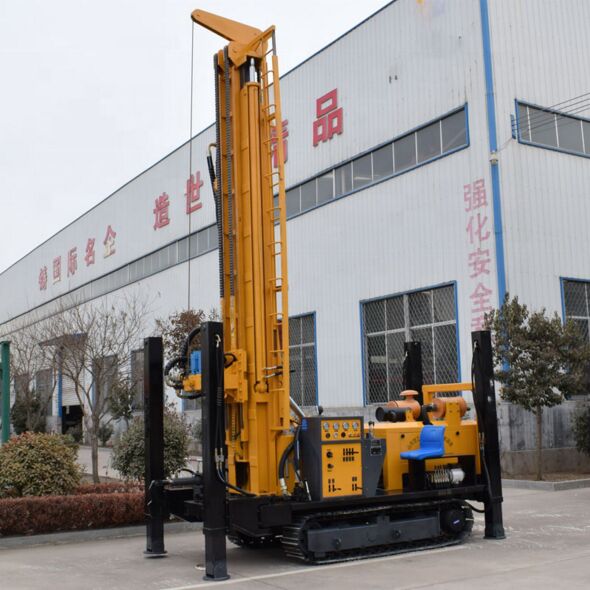

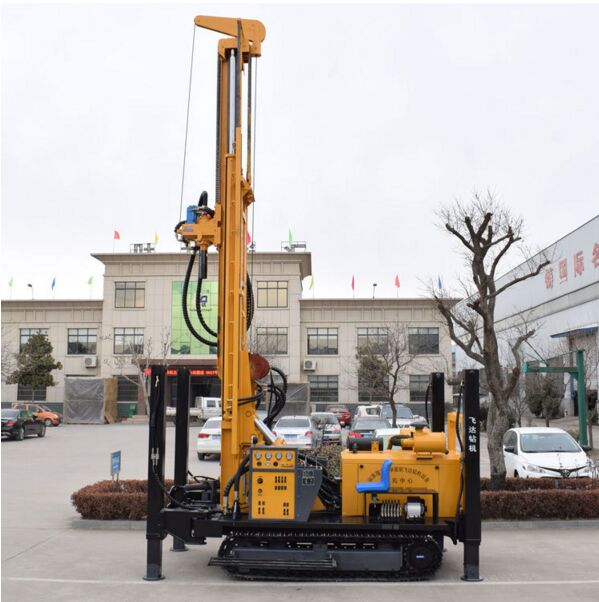

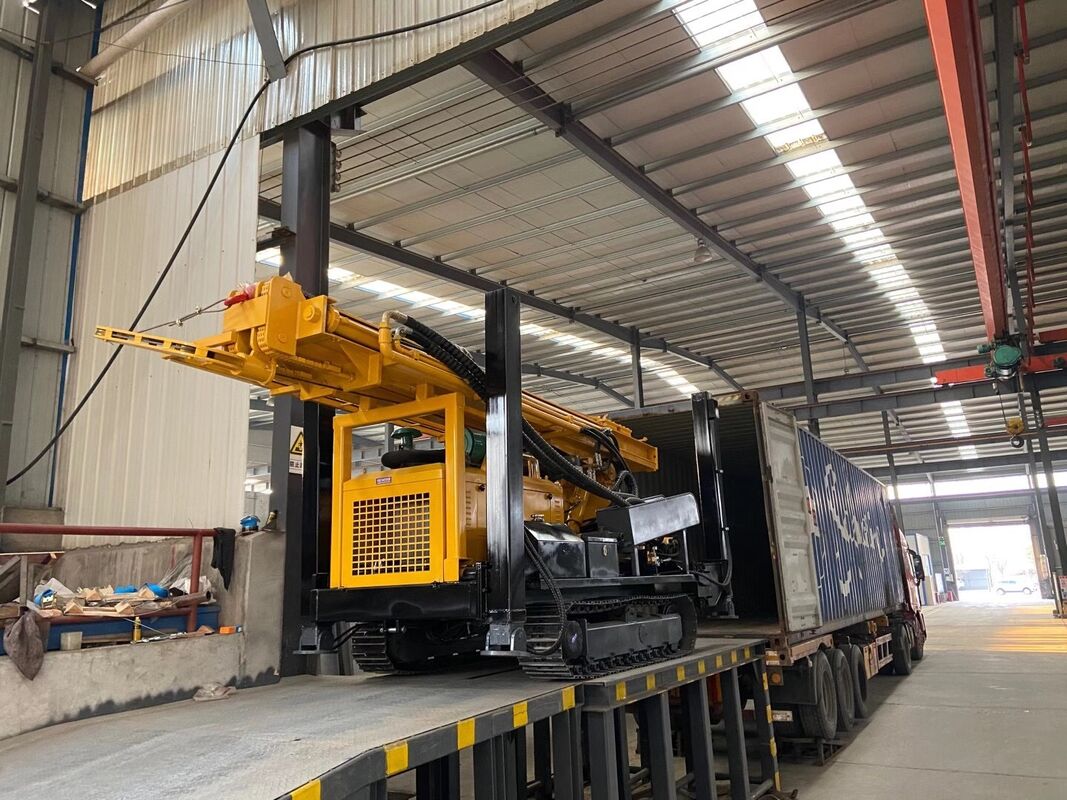

Machine Pictures



400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine 0400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine 1400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine 2
