800m Depth Water Well Drilling Equipment 153KW Engine 140mm - 500mm Diameter

800m Depth Water Well Drilling Equipment 153KW Engine 140mm - 500mm Diameter

water well drilling equipment 153kw

153kw water well drilling rig equipment

140mm water well drilling equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF800C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF800C
Bore Dia:
140-500mm
Bore Depth:
800m
Weight:
13000kg
Diesel Engine:
153KW Cummins Engine
Highlight:

water well drilling equipment 153kw

,

153kw water well drilling rig equipment

,

140mm water well drilling equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

800m Depth 140 - 500mm Diameter Water Well Drilling Machine 153KW Cummins Engine



Machine Introduction



Our water well drilling rigs feature several advanced technologies and features. First, a dual - motor rotating mechanism is adopted to achieve a more stable and efficient rotating operation. Secondly, it is equipped with a centralized operating system, which simplifies the operating process and improves operating efficiency. In addition, the application of the dual - cylinder propulsion system makes the propulsion more uniform and stable. In addition, the drilling rig also adopts the latest hydraulic technology, equipped with a high - torque rotary hydraulic motor and a large - diameter hydraulic cylinder, which has stronger propulsion force, reduced labor intensity, and shortened auxiliary time, thereby improving construction efficiency and project quality.



For the driving system, we have designed a safe and stable system to ensure that the drilling rig drives smoothly, safely and reliably during work. In addition, we use triple pump assembly to ensure the stability and reliability of the hydraulic system and provide guarantee for the long - term operation of the equipment. The comprehensive application of these advanced technologies and functions enables our water well drilling rigs to perform outstandingly during the construction process and win the trust and praise of our customers.



Technical Parameters



Bore diameter(hammer) 140-500mm
Bore depth 800m
Air consumption 17-42m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 102/108/114mm
Pipe length 1m/2m/3m/6m
Lifting force 30T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
One-time advance length 6.6m
Max torque of rotary 8850-13150Nm
Rotary speed 45-140r/min
Hoist lifting capacity 2T
Mud Pump flow 850L/min (option)
High hydraulic leg 1.7m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6300×2300×2650mm
Weight 13000Kg
Diesel engine 153KW Cummins engine
Drilling way Air compressor drilling or mud pump drilling



Application



In addition to water wells and geothermal fields, the RCF800C demonstrates a wide range of applicability. In terms of geological exploration, it is a powerful assistant for mining companies to discover mineral resources and can accurately survey underground mineral deposits and deposits. In addition, RCF800C also plays an important role in underground construction projects, such as pipeline laying, foundation drilling and underground facility construction. Its high efficiency and reliability make it the equipment of choice for a variety of underground engineering projects. To sum up, the RCF800C water well drilling rig is a powerful and widely used multi-functional equipment that enjoys a high reputation in all walks of life.

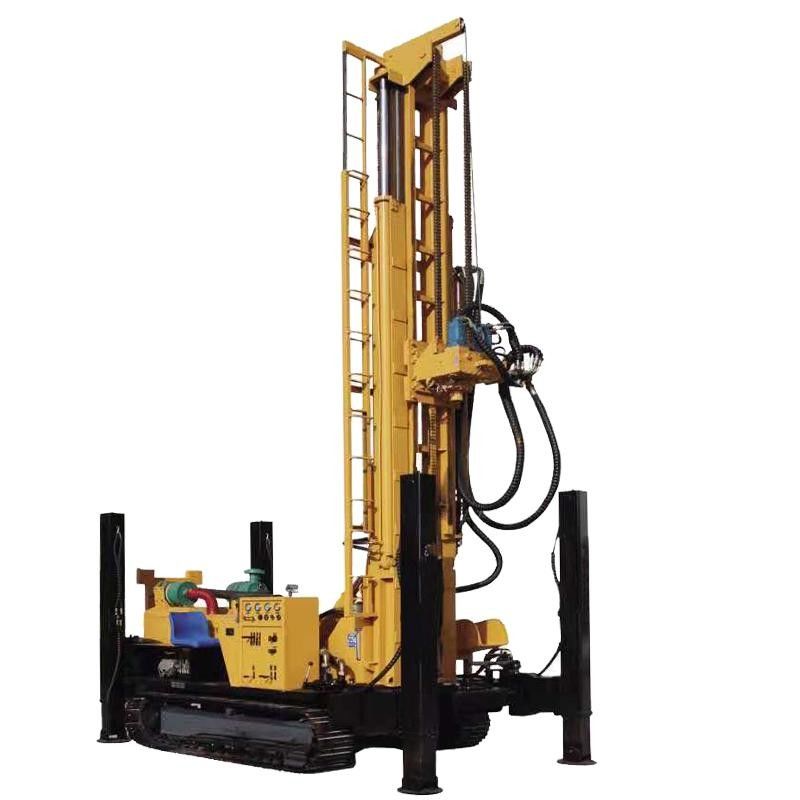

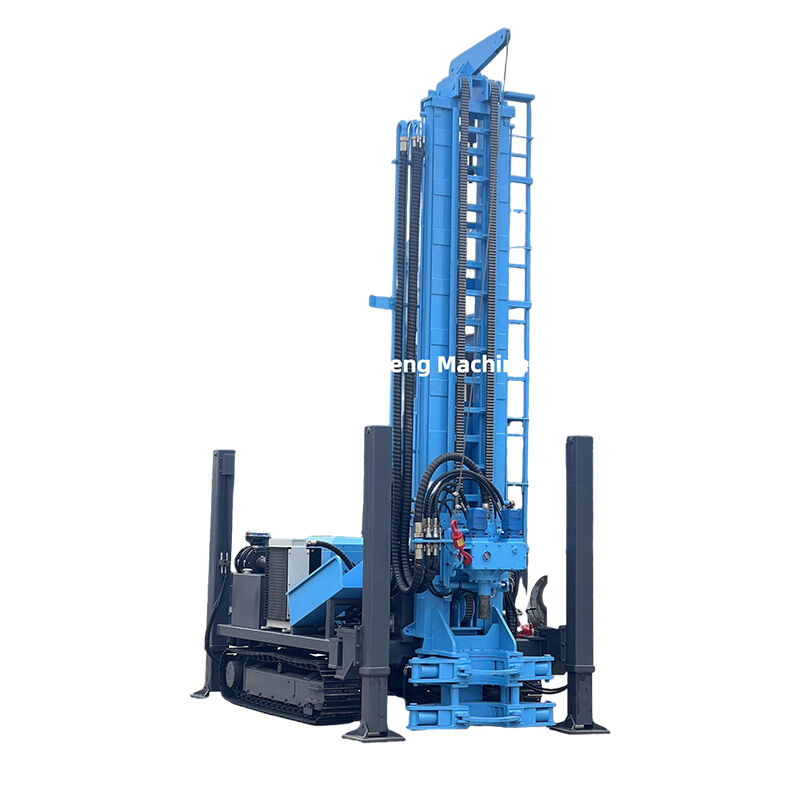

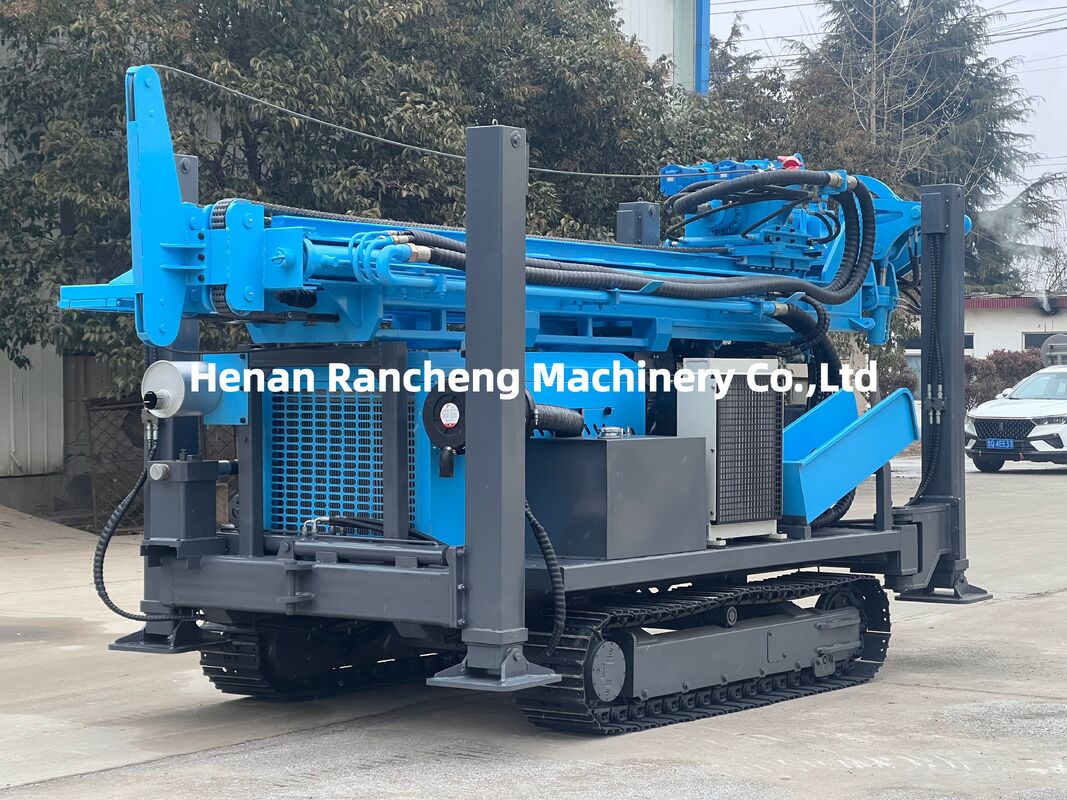

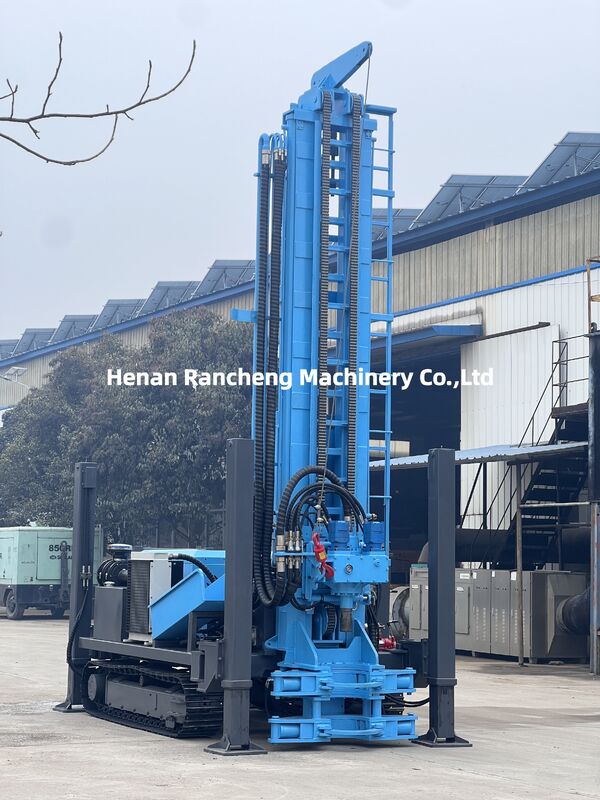

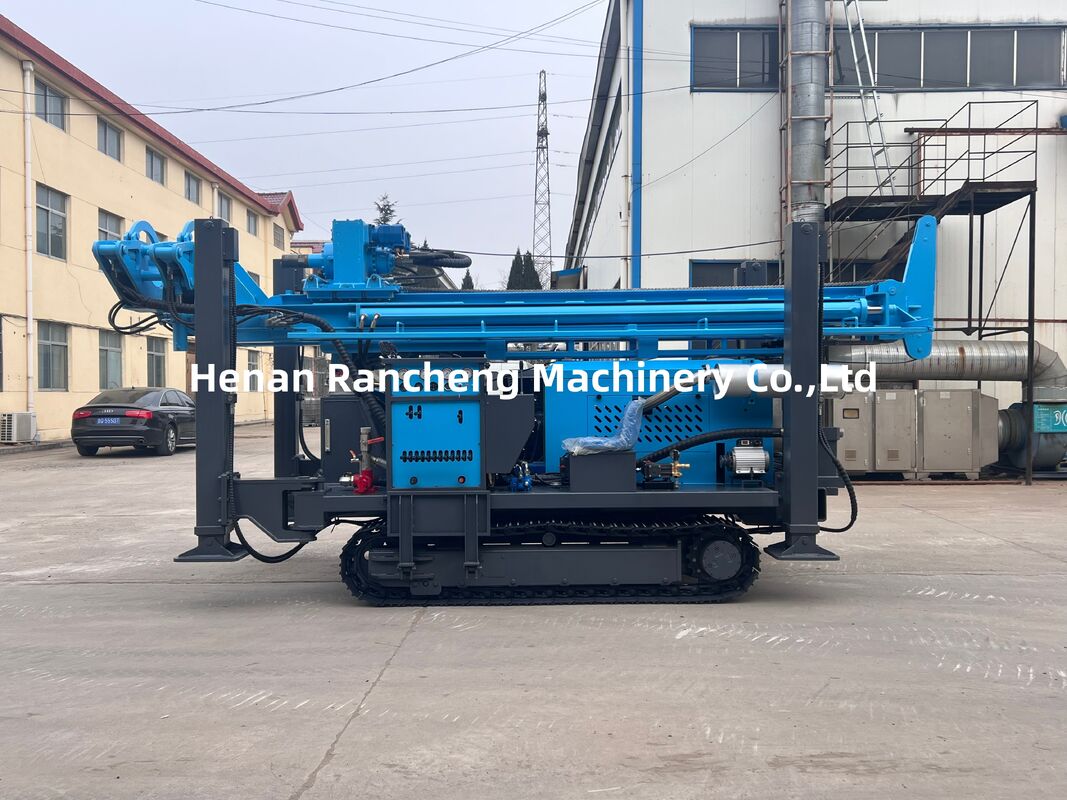

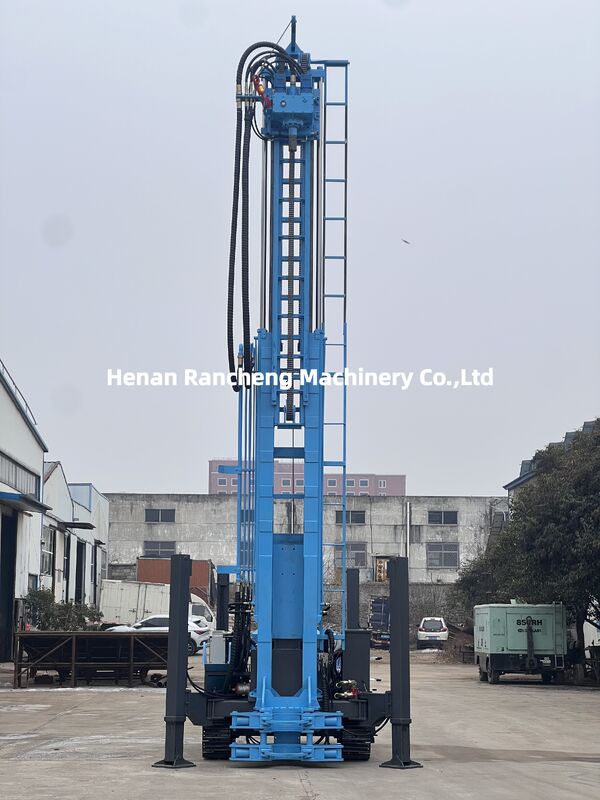

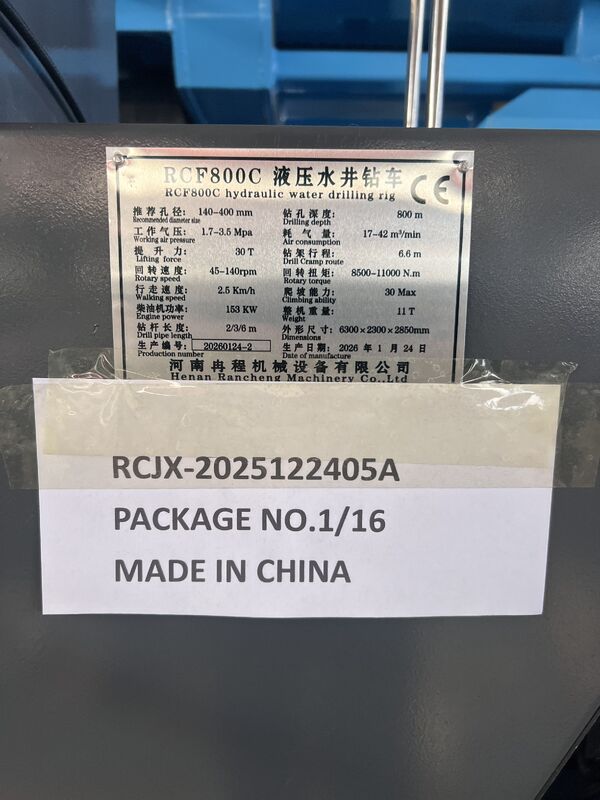

Machine Pictures



800m Depth Water Well Drilling Equipment 153KW Engine 140mm - 500mm Diameter 0800m Depth Water Well Drilling Equipment 153KW Engine 140mm - 500mm Diameter 1

800m Depth Water Well Drilling Equipment 153KW Engine 140mm - 500mm Diameter 2

800m Depth Water Well Drilling Equipment 153KW Engine 140mm - 500mm Diameter 3
