DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth

DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth

water well drill rig 95kw

truck mounted water well drill rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350T

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Rig
Model:
RCF350T
Drilling Type:
Mud Pump Drilling And Air DTH Drilling
Drilling Deep:
350m
Truck Engine Power:
Cummins Brand Engine 125
Weight:
15T
Highlight:

water well drill rig 95kw

,

truck mounted water well drill rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

350m Depth DongFeng Truck Water Well Drilling Rig 95KW Rig Engine Power



Machine Introduction



The RCF350T truck - mounted well drilling rig is a high-profile, efficient and multi - functional fully hydraulic water well drilling rig. Its excellent performance and flexible application make it stand out and is favored by industrial and agricultural water wells, national defense building foundations, geological exploration and geothermal wells and other fields.



The machine ’ s powerful turntable torque makes it an outstanding performer in a variety of foundation jobs. In soft formations, it uses mud drilling; in rock drilling operations, it uses air down - the - hole hammer drilling, which has strong adaptability. It is particularly worth mentioning that the use of down - the - hole hammer drilling method and the discharge of slag through air pressure have greatly improved the drilling efficiency, reaching ten times the level of rotary drilling with traditional drilling rigs.



Technical Parameters



Drilling type Mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Weight (T) 15
Drilling Dia(mm) 140-350
Drilling deep(m) 350
Mast lifting length(m) 6.6
Truck drive speed(km/h) 80
Rig engine power(KW) 95
Working Air pressure(Mpa) 1.7-3.5
Air consumption(m³/min) 18-35
Drilling rod size(mm) 89 102
Drilling rod length(m) 3 6
Lifting force (T) 24
Rotary speed(rpm) 55-120
Rotary torque(N.m) 6200-8500
Tuck information DongFeng brand
Truck engine power(KW) Cummins brand engine 125
Drive type 4×2
Truck loading capacity Front 3.5T, behind 9Ton
Tire size 9.00R20
Steering wheel position Left
Mud pump model BW450-5
pump Size(mm) 8050×2400×3300



Application



Truck - mounted deep well drilling rigs play an indispensable role in the field of industrial and agricultural water conservancy projects. It is used for a wide range of tasks including drilling wells, test wells and other exploratory drilling work. Especially in the field of geothermal heating well drilling, its application is more significant, providing reliable technical support for the development of geothermal resources. In addition, the truck - mounted deep well drilling rig can also meet the needs of engineering foundation reinforcement and play a role in various engineering requirements such as loose gravel drilling and rock formation connection. With its versatility and applicability, truck - mounted deep well drilling rigs have become one of the indispensable and important equipment in the field of industrial and agricultural water conservancy projects, providing reliable technical support and solutions for various projects.

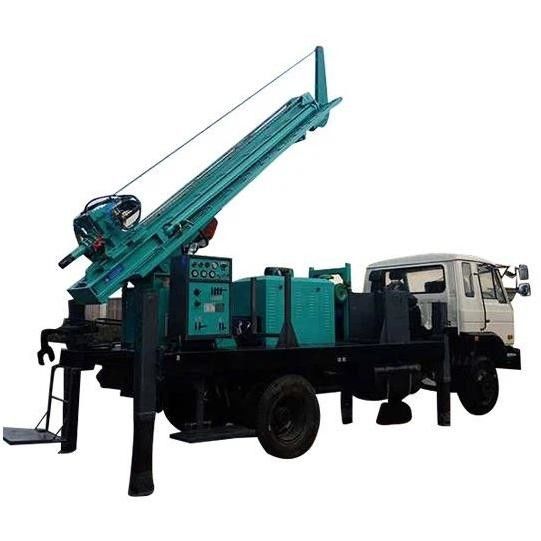

Machine Pictures



DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth 0DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth 1DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth 2

DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth 3DongFeng Truck Mounted Water Well Drill Rig 95KW Rig Engine Power 350m Depth 4
