280m Depth Truck Mounted Water Well Drilling Machine 210HP Load Vehicle Engine

280m Depth Truck Mounted Water Well Drilling Rig 210HP Load Vehicle Engine

Product Description

Unique in the field of groundwater resource exploration, the RCF280T truck mounted water well drilling rig is designed to provide exceptional performance and flexibility. Its superior power allows it to easily reach drilling depths of 280m and can handle a variety of drilling tasks with diameters between 140 and 350 mm. The most striking thing is that the machine not only has mud pump and air compressor drilling functions, but also provides personalized solutions for different types of rock formations. The mud pump drilling method is suitable for softer rock formations, while the air compressor drilling method is more suitable for harder rock formations. This unique design allows the truck mounted water well drilling rig to better cope with various rock formation challenges and ensure the successful completion of drilling tasks. .

product Specifications

Product Features

The RCF280T is a truck - mounted drilling machine designed for drilling tasks in the diameter range of 140 - 350 mm. It can drill to a maximum depth of 280m, has a feed stroke of up to 6,600 mm, and has good 30° slope climbing capabilities. The driving speed can reach 80 km / h, the wind pressure range is 1.7 - 3.0 MPa, and the air consumption is between 17 - 35 cubic m / min. The diameter of the drill pipe is 89 / 102 mm, the length is optional 3 or 6m, it has a lifting force of 18 tons, a rotation speed of 40 - 70 rpm, and a rotation torque of 4500 - 6000 Newton meters. BW250 mud pump is optional. Equipped with a Dongfeng truck, the engine power is 210 horsepower, the drive mode is 6X4, and the right - hand steering wheel is optional. Equipped with 30 / 24, 30 cubic m / min, 24 bar air compressor and 295 kW Yuchai engine to ensure efficient operation.

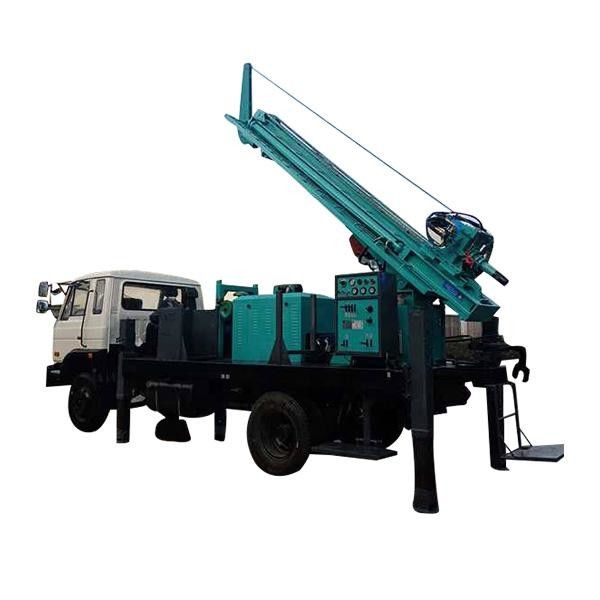

Product Image
