Truck Water Well Drilling Rig 260m Depth 155KW Load Vehicle Engine 20T Weight

Truck Water Well Drilling Rig 260m Depth 155KW Load Vehicle Engine 20T Weight

water well drilling rig 260m

260m water drilling rig

155kw water drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260T

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Rig
Model:
RCF260T
Aperture:
140-350mm
Drilling Depth:
26m
Dimension:
10500×2500×3300mm
Weight:
20T
Highlight:

water well drilling rig 260m

,

260m water drilling rig

,

155kw water drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

260m Depth Dongfeng Truck Water Well Drilling Rig 155KW Load Vehicle Engine



Product Description



Truck - mounted water well drilling rigs stand out because of their overall equipment characteristics. The drilling rig, water pump or compressor, drilling tower, etc. are all assembled on the truck. This unique design allows equipment such as drilling rigs and water pumps ( or compressors ) to be installed directly on the chassis of a car or tractor, using the power of the vehicle itself to drive equipment such as drilling rigs, water pumps ( or compressors ), etc., greatly simplifying the construction process.



The truck - mounted water well drilling rig also has the ability to place the drilling tower upside down on the vehicle for overall relocation, thereby significantly shortening the installation and dismantling time and improving construction efficiency. It has a wide range of applications. It can be used not only in plains and low hilly areas, but also in drilling operations in various terrain environments such as deserts, jungles, swamps and river network areas, demonstrating its excellence in various complex terrain conditions.



Product Specifications



Model RCF260T
Dimension mm 10500×2500×3300
Weight T 20
Aperture mm 140-350
Drilling depth m 260
Feed stroke mm 3400
Travel speed km/h 80
Grade ability Max. 30°
Wind pressure Mpa 1.7-3.0
Air consumption m³/min 17-31
Drill pipe diameter mm Φ76/89
Drill pipe length m 3
Lifting force T 15
Drilling rig Engine power kw 70
Rotary speed rpm 45-70
Rotation torque N.m 4000-5300
Mud pump 250L/min BW250 (optional item )
Carrying vehicle   Dongfeng truck 6X4
Load vehicle engine   155KW
Driving form   6X4
Steering wheel   left position
Air compressor   24/22,24m3/min ,22bar ,228KW Yuchai engine



Product Features



The RCF260T truck - mounted water well drilling rig is a high - quality, multi - functional drilling rig with a drilling depth of 260m and a drilling diameter range of 140 - 350 mm, which can effectively carry out operations in different geological environments. It adopts a carefully designed structure to operate stably in harsh drilling environments, and is equipped with advanced masts and high - quality drill strings to cope with challenging drilling conditions. The powerful drilling motor provides the necessary torque and power to effectively drill and clear rock formations. The RCF260T has the advantage of being easy to transport and install. Its user-friendly interface makes operation simple and suitable for drillers of all experience levels.



Product Image

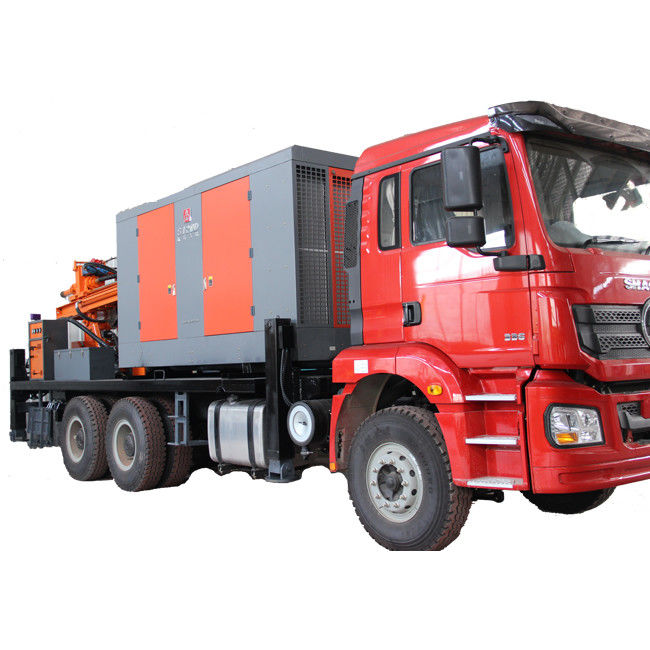

Truck Water Well Drilling Rig 260m Depth 155KW Load Vehicle Engine 20T Weight 0Truck Water Well Drilling Rig 260m Depth 155KW Load Vehicle Engine 20T Weight 1

Truck Water Well Drilling Rig 260m Depth 155KW Load Vehicle Engine 20T Weight 2Truck Water Well Drilling Rig 260m Depth 155KW Load Vehicle Engine 20T Weight 3
