Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth

Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth

portable water well drilling machine 22hp

rubber crawler portable water well drilling machine

22hp portable well drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200C

Contact Us
Request A Quote
Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth
Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth
Product Details
Name:
Portable Water Well Drilling Machine
Model:
RCS200C
Walking Way:
Rubber Crawler Mounted
Drilling Depth:
1500mm
Dimension:
2300*1080*2000mm
Weight:
800kg
Highlight:

portable water well drilling machine 22hp

,

rubber crawler portable water well drilling machine

,

22hp portable well drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by LCL
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine online Video

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price
Good price 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig online Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price
Good price Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale online Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price
Good price 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load online Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price
Contact Us
Contact Now
Product Description

150m Depth Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor



Machine Introduction



The RCS200C crawler - type portable water well drilling rig has the characteristics of convenient movement and simple operation with its rubber track design, which can be easily handled by only one person. It is widely used in drilling farm irrigation wells and domestic drinking water wells. This single - person water well drilling rig has excellent drilling performance, with a maximum drilling depth of 150 meters and a drilling diameter range of 100 - 450 mm. It is equipped with a 22HP diesel engine to ensure efficient work performance. Whether it is facing various formations such as clay, sand or soft rock, it can be competent. It sells well all over the country and is highly praised by users, proving its excellent quality and performance.



Technical Parameters



Model of drilling machine RCS200C
Walking way Rubber crawler mounted
Drilling machine overall dimension 2300*1080*2000mm
Weight of Drilling machine  800kg
Drill rod diameter  Ø50mm
Drill rod length 1500mm
Rod change method Full automatic screw thread
Drilling depth 150m
Diesel Motor Power  22HP/16.2kw
Drilling method Percussive and rotating type
Drilling hole diameter Within Ø 450mm
Stroke distance  2000mm



Machine Advantages



Our small water well drilling rigs stand out for their exceptional portability. With no hassle to carry, you can easily move it around your farm or property and into any location where you need a well. This feature is especially important for farmers who need to irrigate crops in different land areas. Whether it ' s a vast farmland, yard, garden or home drinking water well, our water well drills can get the job done. Its portability brings great convenience to users, making well drilling work more flexible and efficient.

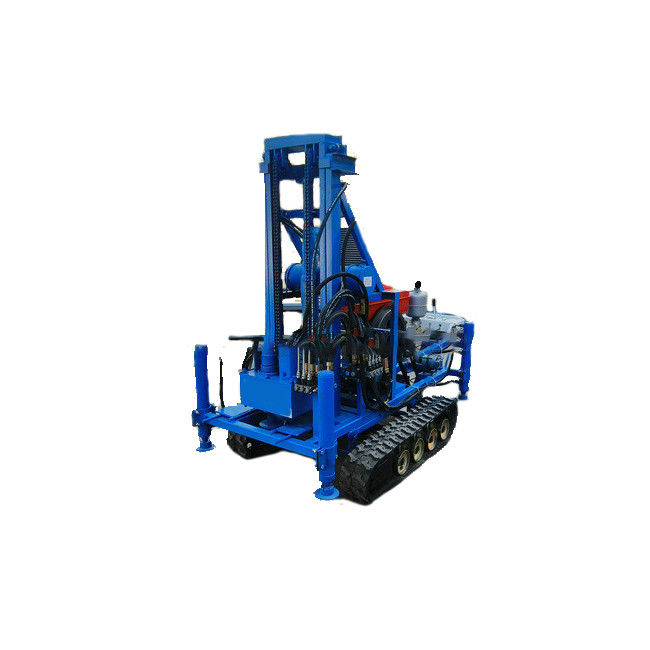

Machine Pictures



Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth 0

Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth 1

Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth 2

Rubber Crawler Portable Water Well Drilling Machine 22HP Diesel Motor 150m Depth 3
