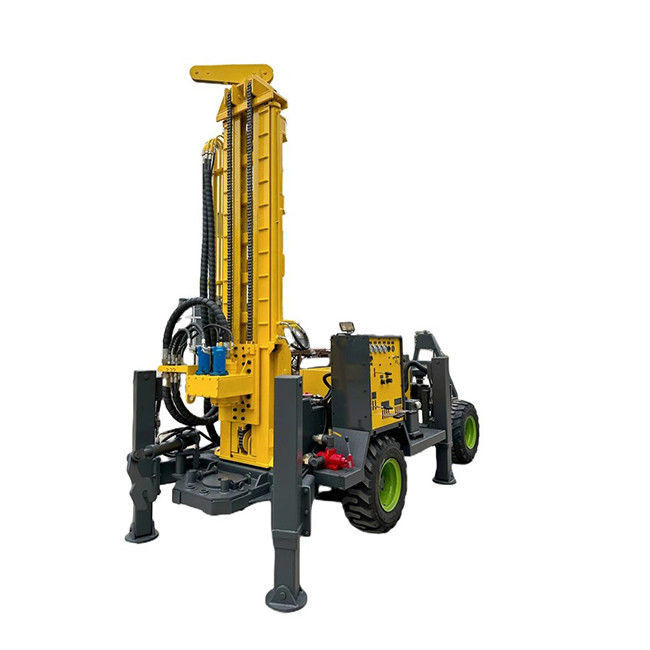

Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth 65KW Engine

Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth 65KW Engine

borehole drilling machine 220m

trailer mounted borehole drilling machine

220m borehole drilling equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF220W
Bore Depth:
220m
Lifting Force:
13T
Weight:
5500kg
Diesel Engine:
65KW Quanchai Engine
Highlight:

borehole drilling machine 220m

,

trailer mounted borehole drilling machine

,

220m borehole drilling equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

220m Depth Four - Wheel Trailer Borehole Drilling Machine 65KW Quanchai Engine



Machine Introduction



The RCF220W tractor drilling machine has excellent flexibility and can be flexibly matched with different accessories, such as air compressors, mud pumps, and even dry hydraulic drilling methods alone to meet the needs of different tasks. In addition to conventional water drilling, it has demonstrated suitability for a variety of hole - forming tasks.



RCF220W is widely used in industrial and agricultural water conservancy projects, test wells, exploration drilling and other fields. Especially in complex tasks such as geothermal heating, engineering foundation reinforcement and loose gravel rock drilling, it has demonstrated excellent capabilities and efficiency.



RCF220W is made of high - quality materials and has a compact and stylish design, which not only improves work efficiency, but also reduces the failure rate and ensures long - term stable operation. Its economical practicality and cost - effectiveness are widely recognized by users and have a good reputation in the market.



Technical Parameters



Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine



Machine Advantages



The RCF220W tractor drill has demonstrated significant advantages in deepwater wells and other deep applications with its excellent drilling depth capabilities. It is equipped with advanced drilling tools such as diamond drill bits and tri - cone drill bits to improve the efficiency and accuracy of drilling operations.



In terms of operation, the machine is designed with an easy - to - understand control panel and user-friendly interface, allowing operators to easily control and monitor the drilling process, thereby reducing the risk of accidents and increasing overall productivity.



The four - wheel trailer design not only facilitates transportation in on - road and off - road environments, but is also more suitable for use in remote areas or rugged terrains. Its compact size allows it to withstand harsh weather conditions, while its sturdy structure ensures stability and durability during drilling operations, providing users with reliable service guarantees.

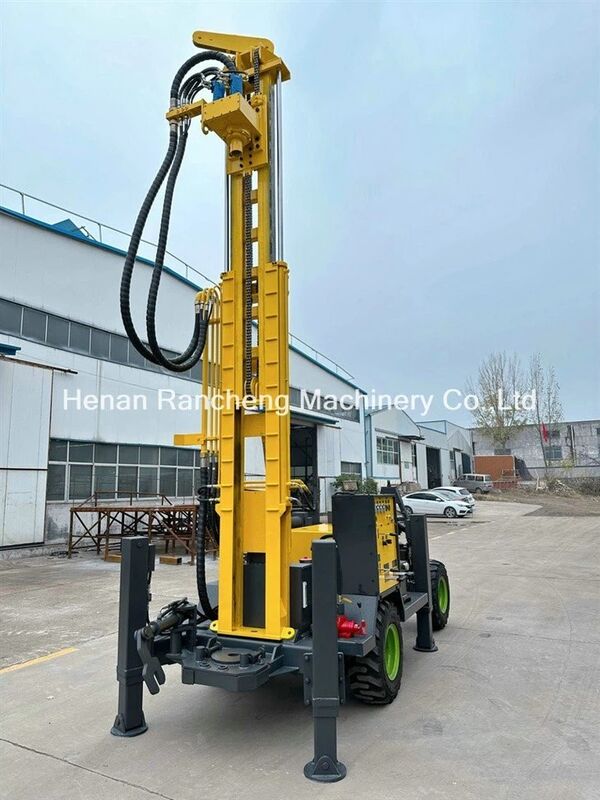

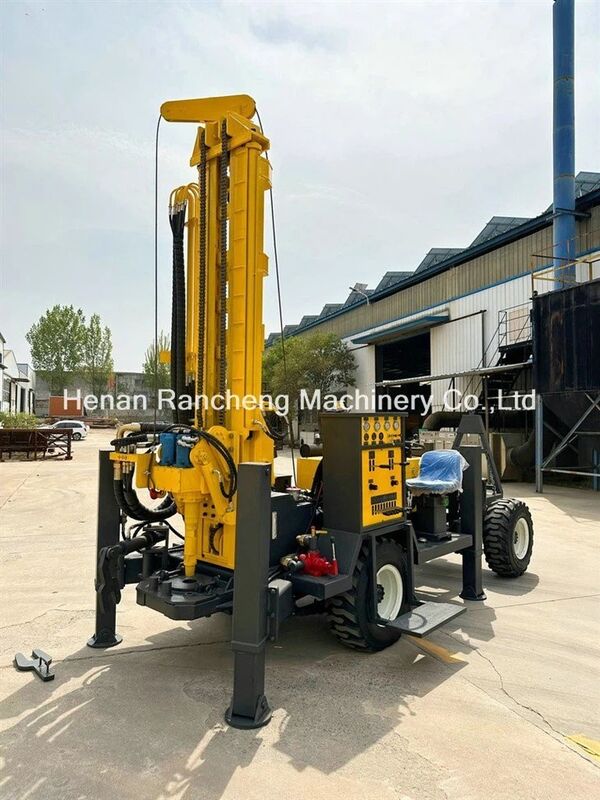

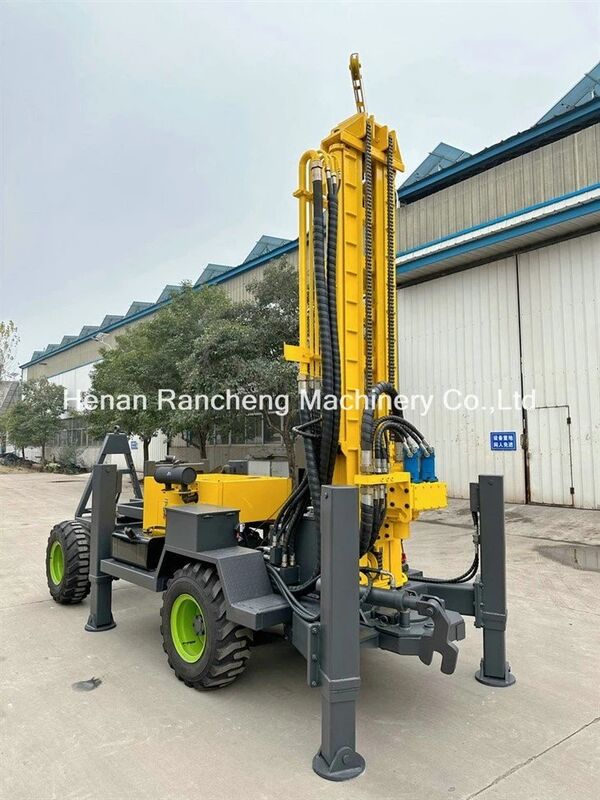

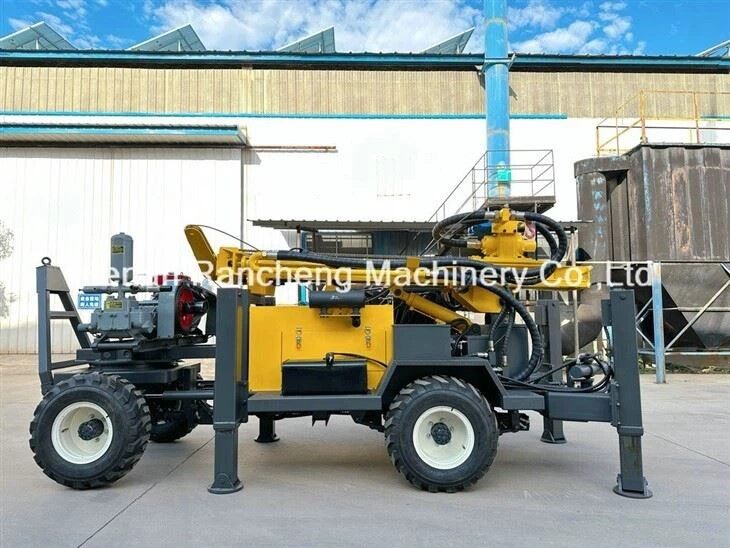

Machine Pictures



Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth 65KW Engine 0Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth 65KW Engine 1Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth 65KW Engine 2
