6 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power

6 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power

Rotary Drilling Rig 34KW

10m Rotary Drilling Rig

6m Auger Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ-10W

Contact Us
Request A Quote
Product Details
Name:
Rotary Drilling Rig
Model:
RCQ-10W
Piling Hole Depth:
6-10m
Piling Hole Diameter:
100-800mm
Diesel Engine Power:
34kw
Dimensions:
7300X2100X2850mm
Highlight:

Rotary Drilling Rig 34KW

,

10m Rotary Drilling Rig

,

6m Auger Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

6 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power



Product Description



The RCQ - 10W small pile driver has excellent performance in drilling, capable of drilling to a depth of 11 meters, and can choose different specifications of drilling tools according to needs, allowing it to have a wide range of pile hole diameters, ranging from 100 to 800 mm. Its high - efficiency drilling capabilities enable it to quickly move to the next construction site, demonstrating its flexibility, convenience and efficiency. This machine is suitable for use in a variety of geological conditions, including soil, clay, fill, silt and formations containing pebbles or gravel. In the engineering field, it is widely used in projects such as high - speed railway trestle piles, slope shield piles, photovoltaic power station foundation piles, power grids, civil buildings, new rural construction, municipal construction, and landscaping.



Product Specifications



RCQ-10W Item Unit Data



vehicle parameters

Dimensions mm 7300X2100X2850
minimum gap mm 230
wheel track mm Front 1860,back 1920
wheelbase mm 2650
Upright height mm 7500
Telescopic trajectory mm 800
total weight kg 6500
tire size / Front 700-16,back 750-16
traveling speed km/h 40
Gradeability ° 25
Diesel engine Model / Quanchai 485
power kw 34
Rotary speed r/min 2200
Generator set power kw 40-50



Hydraulic system

Wedge pressure mpa 16-20
Outrigger pressure mpa 16-20
Max pressure mpa 20
Main pump flow l/min 32



Working range

Piling hole diameter mm 100-800
Piling hole depth m 6-10
Drill pipe speed r/min 40-65
Drill pull force KN 100
rotation angle ° 360
Piling rig performance

1. On the frame and the next frame can be rotated 360 °, the frame can slide back and forth 80cm., Working without dead ends.
2. High piling speed, an average of 3 minutes into a 6m deep hole.
3. Remote piling can use the remote control, the operation easier.
4. Supports two walkways: Hydraulic power walking and walking (with generators).
5. Vehicle parts, electrical products are based on well-known manufacturers, quality is guaranteed.





Product Features



First of all, its flexibility is its outstanding feature. The whole machine has small tonnage, simple operation, fast movement, and convenient transition, making it able to flexibly adapt to various construction site environments. Secondly, its high return characteristics make it popular. It has small investment and quick results. It has irreplaceable economic advantages and brings obvious economic benefits to users. Finally, this equipment has a technology patent and uses unique technology to achieve the characteristics of small torque and high power, allowing even small machines to easily handle large pile hole operations, demonstrating its technological leadership.



Product Image

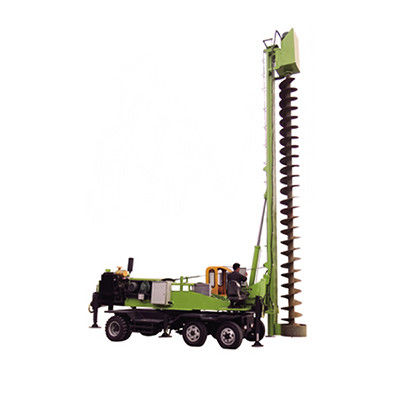

6 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power 0

6 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power 1

6 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power 26 - 10m Piling Hole Depth Auger Rotary Drilling Rig 34KW Diesel Engine Power 3
