Crawler Mouted Rotary Drill Rig 132KW Engine Micro Pile Drilling Rig Machine

Crawler Mouted Rotary Drill Rig 132KW Engine Micro Pile Drilling Rig Machine

Crawler Mouted Rotary Drill Rig

132KW Micro Pile Drilling Rig

132KW Micropile Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC320Y

Contact Us
Request A Quote
Product Details
Name:
Rotary Drilling Rig
Model:
RC320Y
Piling Depth:
20m
Bore Depth:
400m
Dimension:
7660*2130*3200mm
Total Weight:
11600kg
Highlight:

Crawler Mouted Rotary Drill Rig

,

132KW Micro Pile Drilling Rig

,

132KW Micropile Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

400m Bore Depth Crawler Mouted Rotary Drilling Rig 132KW Cummins Engine

Product Description

The RC320Y hydraulic micro pile drilling rig is based on its advanced hydraulic technology and presents multiple advantages. First of all, the use of new hydraulic technology not only improves efficiency, but also significantly reduces energy consumption and has excellent energy - saving performance. Secondly, it has strong rotational torque, which makes the drilling process smoother, and it can easily adjust the hole deflection, which improves the flexibility of operation. The machine has a compact structure and the mast has an adjustable compensation function, which maintains the stability of drilling and enhances accuracy and stability. The performance is reliable and efficient, suitable for various working conditions, which not only reduces costs, but also improves construction efficiency, creating significant economic benefits for users.

In addition, the RC320Y hydraulic micro pile drilling rig not only has advanced hydraulic technology, but is also a multi - functional drilling rig that can be used for micro piles, segmented augers, jet grouting, bored piles, power station construction, water wells, geothermal photovoltaic solar augers It shows extremely high flexibility and versatility in various drilling projects such as piles, down - the - hole blasting construction, anchor drilling, soil nailing, and slope support, providing users with a wide range of application prospects and choices.

Product Specifications


Piling diameter(screw)400-1200mm
Piling depth(screw)20m
Bore diameter (DTH hammer)115-400mm
Bore depth400m
Engine power132KW cummins engine
Rotation torque12000N.m
Rotary stroke3600mm
Pull-down force8400kg
Extraction force12200kg
Double clamps minimum diameter100mm
Winch line pull (effective)3500kg
Drum diameter270mm
Rope diameter16mm
Walking speed0-2.5km/h
For rockR=6-20
Air pressure

0.7-1.6Mpa (central pressure )
1.6-3.0Mpa (high pressure )

Air consumption10-30m3/h
Once promotion6000mm
Dimension7660*2130*3200mm
Total weight11600kg


Product Features

First of all, dual hydraulic motors are used, which have the characteristics of low speed but high torque, ensuring the stability and efficiency of the drilling process. Secondly, the cylinder propulsion method improves the reliability and stability of performance, and is equipped with a two - stage air filter to effectively protect the air quality and extend the service life of the diesel engine. A multi - valve control system simplifies operation, while automatic monitoring of hydraulic and propulsion pressure increases safety and efficiency. Its compact design is suitable for working in narrow spaces, and it is equipped with a spotlight for convenient night operations and maintenance. The structure is solid and reliable, and it is equipped with a 132KW Cummins engine with strong and reliable performance. In addition, it is easy to maintain, easy to operate, has fast drilling speed and long service life, providing users with a convenient and long - lasting drilling solution.

Product Image

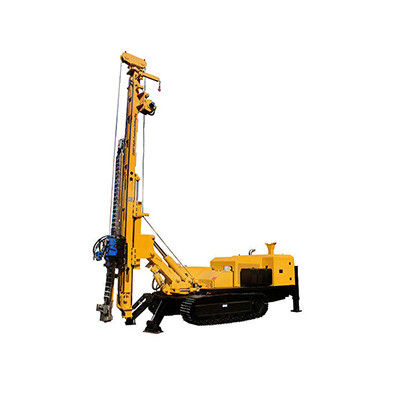

Crawler Mouted Rotary Drill Rig 132KW Engine Micro Pile Drilling Rig Machine 0Crawler Mouted Rotary Drill Rig 132KW Engine Micro Pile Drilling Rig Machine 1Crawler Mouted Rotary Drill Rig 132KW Engine Micro Pile Drilling Rig Machine 2Crawler Mouted Rotary Drill Rig 132KW Engine Micro Pile Drilling Rig Machine 3
