Hydraulic Rotary Drilling Rig Machine 25m Depth 150KW Diesel Engine Power

Hydraulic Rotary Drilling Rig Machine 25m Depth 150KW Diesel Engine Power

Rotary Drilling Rig 25m

Rotary Drilling Rig 150KW

Hydraulic Rotary Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ525

Contact Us
Request A Quote
Product Details
Name:
Rotary Drilling Rig
Model:
RCQ525
Working Mode:
Hydraulic Oil Cylinder Pressure
Drilling Depth:
25m
Dimension:
11000X2800X3450mm
Total Weight:
25T
Highlight:

Rotary Drilling Rig 25m

,

Rotary Drilling Rig 150KW

,

Hydraulic Rotary Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

25m Depth Hydraulic Rotary Drilling Rig 150KW Cummins Diesel Engine Power



Machine Introduction



The RCQ525 rotary drilling rig is a well - designed piece of equipment with a drilling depth of 25 meters. Not only does it have flexibility and high returns, it also uses well - known brand configurations to ensure product reliability and performance. Its efficient powerhead design and stable chassis make it excellent in construction, while a powerful main winch and advanced design further enhance its performance. At the same time, the machine is equipped with a visual human - machine interface, providing a comfortable cab environment and convenient maintenance and repair functions. Its significant economic benefits and efficient piling speed, coupled with its powerful crawler walking ability, make it a favored choice in the engineering field.



Technical Parameters



Model RCQ525 bore piling rig
Working mode Hydraulic oil cylinder pressure
Drilling diameter  Φ500-Φ1500mm
drilling depth  25m
Kelly bar diameter  315mm
Dimension  11000X2800X3450mm
Total weight  25T
Power head max output torque  120KN.m
Rotary speed  10-50r/min
Pressurized oil cylinder max pressure 100KN
Pressurized oil cylinder max lifting force 100KN
Pressurized oil cylinder max stroke 2500mm
Main winch max lifting force 120KN
Main winch max lifting speed 70m/min
Wire rope diameter 24mm
Assisting winch max lifting force 30KN
Assiting winch max lifting speed 50m/min
Wire rope diameter 12mm
Mast sidewards inclination ±4°
Mast forwards inclination
Max working pressure 28Mpa
pilot pressure 3.5Mpa
Travelling speed  5km/h
Max climbing angle 30
Working radius 4m
Diesel engine power  150KW ,cummins ,water cooling ,turbo charger ,



Machine Advantages



The working mode is hydraulic cylinder pressure driven, with a drilling diameter of Φ500 - Φ1500mm, a maximum drilling depth of 25m, and a Kelly rod diameter of 315mm. The size is 11000X2800X3450mm and the weight is 25 tons. The maximum output torque of the power head is 120KN . m, and the rotation speed is 10 - 50r / min. The maximum lifting force of the main winch is 120KN, and the maximum lifting speed is 70m / min. Equipped with Cummins 150KW diesel engine, water - cooled, turbocharged. It has a number of technical indicators and is suitable for different construction site needs.

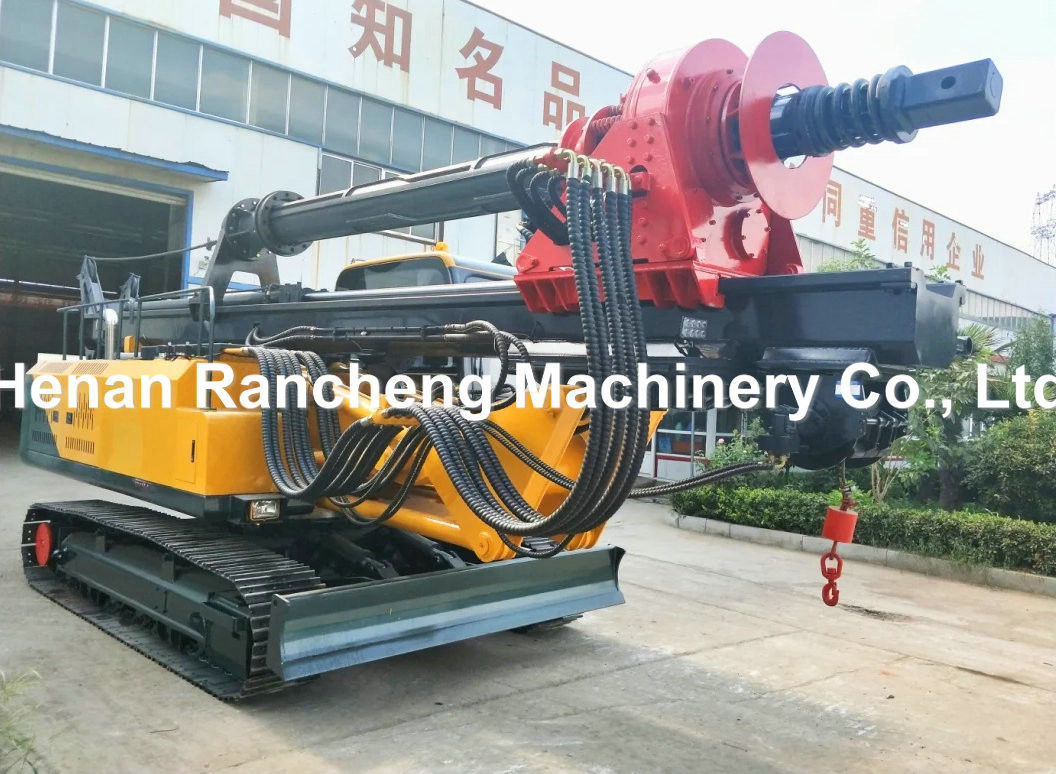

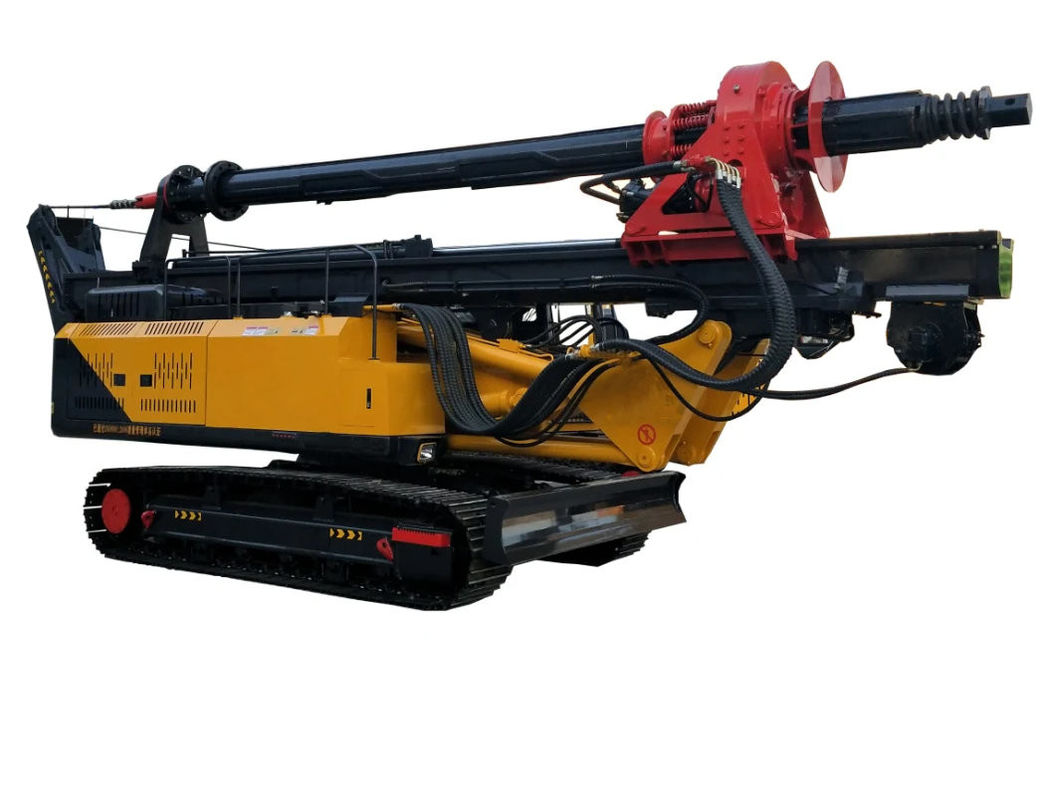

Machine Pictures



Hydraulic Rotary Drilling Rig Machine 25m Depth 150KW Diesel Engine Power 0Hydraulic Rotary Drilling Rig Machine 25m Depth 150KW Diesel Engine Power 1Hydraulic Rotary Drilling Rig Machine 25m Depth 150KW Diesel Engine Power 2Hydraulic Rotary Drilling Rig Machine 25m Depth 150KW Diesel Engine Power 3
