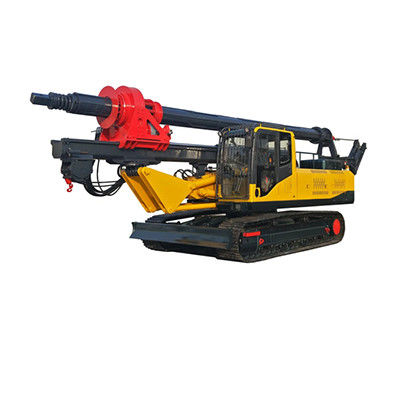

Name: 35m Depth Crawler Mounted Rotary Water Well Drilling Rig 154KW Engine Power
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ535
Availability: InStock

Home > products > Rotary Drilling Rig >

35m Depth Crawler Mounted Rotary Water Well Drilling Rig 154KW Engine Power

Crawler Mounted Rotary Water Well Drilling Rig

Rotary Water Well Drilling Rig 154KW

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ535

Request A Quote

Product Details

Name:

Rotary Drilling Rig

Model:

RCQ535

Drilling Depth:

35m

Working Radius:

4.5m

Dimension:

12500X2800X3600mm

Weight:

27T

Highlight:

Crawler Mounted Rotary Water Well Drilling Rig

Rotary Water Well Drilling Rig 154KW

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price

Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price

Contact Now

Product Description

35m Depth Crawler Mounted Rotary Drilling Rig 154KW Cummins Engine Power

Machine Introduction

The RCQ535 hydraulic rotary drilling rig has a rotary digging depth of up to 35m. Drilling tools of different specifications are optional, and the pile hole diameter is up to 1500mm. Known for its key role in various fields. In addition to reinforcing foundations in soft soil foundations to ensure project stability, it also undertakes the task of building seaport, reservoir station infrastructure and bridge foundations to provide solid support for these important projects. In defense engineering, it can also play a role in the construction of military facilities. In addition, it also plays an important role in geological exploration, construction engineering and engineering blasting, providing efficient and reliable piling services for various engineering projects, providing strong support for the smooth progress of engineering construction.

Technical Parameters

Model	RCQ535 rotary drilling rig
Working mode	Hydraulic oil cylinder pressure
Drilling diameter	Φ500-Φ1500mm
drilling depth	35m
Kelly bar diameter	340mm
Dimension	12500X2800X3600mm
Total weight	27T
Power head max output torque	130KN.m
Rotary speed	8-45r/min
Pressurized oil cylinder max pressure	120KN
Pressurized oil cylinder max lifting force	120KN
Pressurized oil cylinder max stroke	2500mm
Main winch max lifting force	130KN
Main winch max lifting speed	70m/min
Main winch wire rope diameter	24mm
Assisting winch max lifting force	30KN
Assisting winch max lifting speed	55m/min
Assisting winch wire rope diameter	12mm
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	30Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	5km/h
Traveling clamp degree	28°
Working radius	4.5m
Diesel engine power (KW)	154KW ,cummins ,water cooling ,turbo charger ,

Machine Advantages

The RCQ535 rotary drilling rig highlights a number of superior features : it is driven by hydraulic cylinder pressure and is adaptable to various working conditions; the drilling diameter range is wide, up to 1500mm, and the maximum depth is 35 meters; the power head torque reaches 130KN.m, and the rotation speed range is wide; Each hydraulic cylinder provides strong support; the main and auxiliary winches have high lifting efficiency; the machine design is reasonable and the work is stable and efficient.

Machine Pictures
