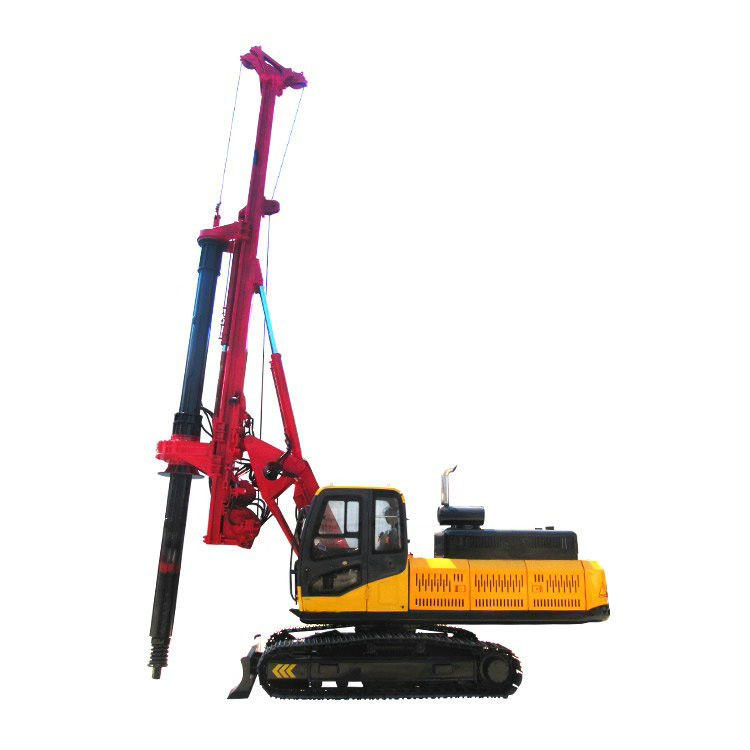

Name: Crawler Mounted Water Well Rotary Drilling Rig Machine 170KW Engine 40m Piling Depth
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ540
Availability: InStock

Home > products > Rotary Drilling Rig >

Crawler Mounted Water Well Rotary Drilling Rig Machine 170KW Engine 40m Piling Depth

Rotary Drilling Rig Machine 170KW

Crawler Mounted Rotary Drilling Rig Machine

170KW Water Well Rotary Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ540

Request A Quote

Product Details

Name:

Rotary Drilling Rig

Model:

RCQ540

Piling Depth:

40m

Diesel Engine:

Cummins 170KW

Machine Dimension:

14X3X3.8m

Weight:

41T

Highlight:

Rotary Drilling Rig Machine 170KW

Crawler Mounted Rotary Drilling Rig Machine

170KW Water Well Rotary Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price

Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price

Contact Now

Product Description

40m Piling Depth Crawler Mounted Rotary Drilling Rig 170KW Cummins Engine Power

Machine Introduction

The RCQ540 hydraulic small rotary drilling rig is unique in the industry with its unique pressurized drilling method, which can easily achieve a maximum rotary drilling depth of 40 meters. The flexible selection of drilling tools makes it suitable for a wide range of applications and can meet the needs of pile holes of different diameters, ranging from 500 mm to 1600 mm.

In terms of construction, the rotary drilling rig performed well, had efficient drilling capabilities, and could be quickly transferred to the next construction site after construction was completed, providing strong support for the smooth advancement of the project. Its flexibility, convenience, and efficiency make it very popular, and it has become a dedicated piling machinery and equipment for national high - speed railway construction, injecting new vitality into the project.

Technical Parameters

Drilling diameter	Φ500-Φ1600mm	Drilling depth	40m
Diesel engine	Cummins 170KW
Powerhead torque	150KN.m
Rotary speed	5-30r/min
Pressurized oil cylinder max pressure	150KN
Pressurized oil cylinder max lifting force	150KN
Pressurized oil cylinder max Stroke	3500mm
Main winch max lifting force	160KN
Main winch max lifting speed	64m/min
Main winch rope diameter	26mm
Assisting winch max lifting force	50KN
Assisting winch max lifting speed	60m/min
Assisting winch rope diameter	14mm
Travel speed	3km/h
Max climbing gradient	15°
Hydraulic system pressure	32Mpa	Working radius	4.8m
Machine dimension	14X3X3.8m	Weight	41T

Machine Advantages

This drilling machine has an impressive drilling range and depth, and is equipped with a Cummins 170KW diesel engine, providing excellent high - power power. Its power head torque of 150KN . m and rotation speed of 5 - 30r / min ensure excellent drilling performance. The 150KN pressure cylinder and 160KN main winch provide powerful thrust and lifting force. The machine travels at a speed of 3km / h and uses a 32Mpa high-pressure hydraulic system. It is huge and weighs 41 tons, demonstrating its strong engineering capabilities.

Machine Pictures
