Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine

Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine

Small Rotary Drilling Rig

110KW Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ515

Contact Us
Request A Quote
Product Details
Name:
Rotary Drilling Rig
Model:
RCQ515
Bore Depth:
Max 15m
Working Radius:
3.6m
Machine Dimension:
9.8X2.5X3.35m
Weight:
19T
Highlight:

Small Rotary Drilling Rig

,

110KW Rotary Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

15m Bore Depth Small Hydraulic Rotary Drilling Rig Cummins 110KW Diesel Engine

Machine Introduction

RCQ515 rotary drilling rig can perform drilling operations by applying pressure, and its maximum rotary drilling depth can reach 15 meters. This drilling rig can be matched with various types of drilling tools and can cover pile hole diameters from 500 to 1000 mm, with high operating efficiency. After the construction is completed, it can be quickly moved to the next project location and is also easy to transport. The machine itself is lightweight, easy to operate, quick to move and easy to change. The main uses include piling in soft soil, which is suitable for infrastructure construction, seaports, bridges, reservoirs, and national defense construction. It is widely used in rotary drilling spiral piles, pile foundation engineering, drilling operations, geological exploration, and construction engineering blasting.

Technical Parameters


Drilling diameter Φ500-Φ1000mm Drilling depth 15m
Diesel engine Cummins 110KW
Powerhead torque (KN.m) 80KN.m
Rotary speed (r/min) 10-50RPM
Pressurized oil cylinder max pressure 100KN
Pressurized oil cylinder max lifting force 100KN
Pressurized oil cylinder max Stroke 2500mm
Main winch max lifting force 100KN
Main winch max lifting speed 70m/min
Main winch rope diameter 24mm
Assisting winch max lifting force 30KN
Assisting winch max lifting speed 50m/min
Assisting winch rope diameter 12mm
Travel speed 5km/h
Max climbing gradient 30°
Max working pressure 28Mpa Working radius 3.6m
Machine dimension 9.8X2.5X3.35m Weight

19KGS




Machine Advantages

1 . Unique Hydraulic Crawler Type Professional Chassis : This chassis, independently developed by us, provides a more stable working foundation for the drilling rig, enhancing both construction efficiency and operational safety.

2 . High Diameter Hydraulic Motor : Equipped with a large - diameter hydraulic motor, this design enhances the machine ' s power output, enabling it to adapt to more complex geological conditions, thereby increasing the success rate of construction projects.

3 . High - Quality Steel Rope : Renowned for its long lifespan, strong lifting force, rapid lifting speed, quick response time, and high stability, this steel rope ensures the reliability and stability of the machine under various operating conditions.

4 . User - Friendly Operating Interface : The operator interface features a user - friendly design, making operations more intuitive and straightforward, reducing the technical barriers for operators and improving operational efficiency.

5 . Cutting - Edge Design and Mechanical Analysis Software : Leveraging advanced design software and mechanical analysis software, we can directly analyze the stress distribution within the product structure and optimize its design, thereby enhancing its performance and reliability.

6 . Environmental Design Philosophy : In the design process, we fully consider environmental factors to ensure that the product complies with environmental requirements and does not adversely impact the environment during use, providing users with a more sustainable working solution.

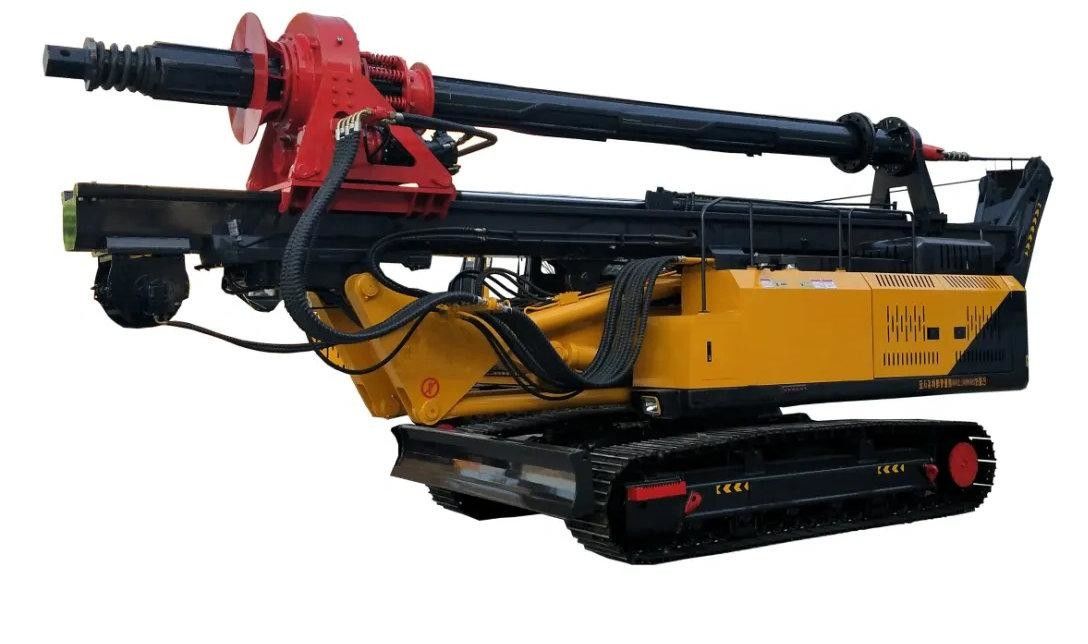

Machine Pictures

Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine 0Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine 1Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine 2Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine 3Hydraulic Small Rotary Drilling Rig 15m Bore Depth 110KW Diesel Engine 4
