Name: Hydraulic Crawler DTH Down The Hole Drilling Rig 68HP Diesel Engine 20m Drill Depth
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCZ415
Availability: InStock

Home > products > DTH Drilling Rig >

Hydraulic Crawler DTH Down The Hole Drilling Rig 68HP Diesel Engine 20m Drill Depth

DTH Down The Hole Drilling Rig

Down The Hole Drilling Rig 68HP

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ415

Request A Quote

Product Details

Name:

DTH Drilling Rig

Model:

RCZ415

Depth:

20m

Hole Range:

90-115mm

Size:

5500x2000x2100mm

Weight:

4500kg

Highlight:

DTH Down The Hole Drilling Rig

Down The Hole Drilling Rig 68HP

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

20m Hydraulic DTH Blasthole Hole Drilling Rig 162KW Yuchai 6800KG

Get Best Price

Video

Integrated Surface DTH Drilling Rig Blast Hole Drill Rig Machine For Mine

Get Best Price

Video

20m Hydraulic Integrated DTH Drilling Rig RCZ412B-1 Model 58KW Yuchai Engine With Dust Collector

Get Best Price

Video

Automatic Blast Hole Drilling Machine 20m Depth 115mm Diameter For 58KW Power

Get Best Price

Contact Now

Product Description

20m Drilling Depth Hydraulic Crawler DTH Drilling Rig 68HP Yuchai Diesel Engine

Product Description

The RCZ415DTH drilling rig is equipped with a Yuchai 4 - cylinder diesel engine as standard, suitable for 3meter drill pipes with a diameter of 60 mm or 76 mm, and provides a dry dust collector option. All its structural components have been reinforced, and the rotating unit is driven by a circulating reduction motor, which has high torque and is suitable for drilling in a large hole diameter range. In addition, it is equipped with a high - performance wet air filter and a two - stage dry air filter to form a three - stage air filtration system to effectively protect the engine. The drilling rig adopts a new shell design for easy maintenance and service, and an optional dry dust collector enables dust - free drilling. The standard piston piston motor and national standard engineering machinery driving track have stronger climbing ability and more reliable quality.

Product Specifications

Model	RCZ415
Working pressure	0.7-2 Mpa
Depth	20m
Hole range	90-115mm
Rotation torque	1850N.m
Rotation speed	0-110 r/min
Drill rod type	603m/ 763m
Diesel engine type	YCD4R12T-70
Power	50kw
Feeding force	15KN
Lifting force	25KN
Tramming speed	2.5km/h
Climb ability	25°
Weight	4500kg
Length	5500mm
Width	2000mm
Height	2100mm

Product Features

It is suitable for apertures ranging from 90 to 115 mm in diameter, has a wide working pressure range, can work between 0 . 7 and 2 MPa, and can reach a maximum depth of 20 meters. Equipped with a 50kw YCD4R12T - 70 diesel engine, it has strong power support, a rotation torque of up to 1850N . m, a rotation speed of up to 110 rpm, and efficient operation. Its climbing ability reaches 25 ° and its driving speed is 2.5km / h. It is suitable for operation needs in various terrain conditions.

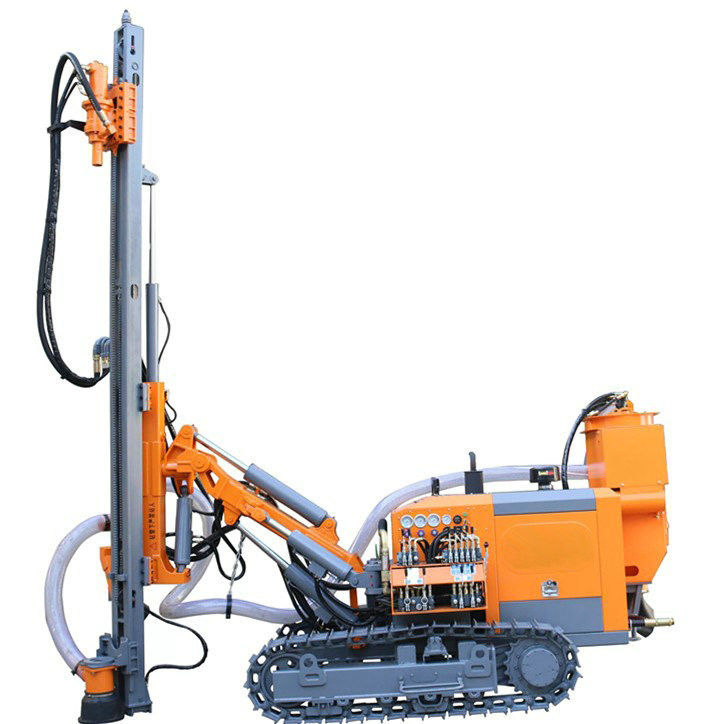

Product Image
