22m Depth Hydraulic Integrated DTH Drilling Rig Machine 264HP Diesel Engine

22m Depth 108 - 137mm Hole Dia DTH Drilling Rig 264HP Cummins Diesel Engine

Product Description

The RCZ545 hydraulic integrated DTH drilling rig uses top - notch accessories to improve the overall quality of the product and provide users with a more excellent experience. The distinctive feature of this drilling rig is its single power package design, which uses only one diesel engine to drive the screw air compressor and hydraulic system, achieving more efficient power output. Compared with traditional split drilling rigs, the RCZ545's diesel engine consumes 30 % less energy and reduces maintenance costs by 50 %. It also eliminates the rear air compressor design, reducing air transmission losses and improving the efficiency of remote fleet management. efficiency, thus significantly improving production capacity. This drilling rig is suitable for a wide range of fields, including but not limited to open pit mines, quarries, highways, water conservancy projects, power station construction, railway construction and other construction drilling projects.

In addition, the drilling rig is also equipped with an efficient rotating device, a design suitable for multi - directional drilling, a new protective cover, a user - friendly operating console, an advanced dust collection system and a compact standard traveling mechanism, ensuring that users can obtain efficient , convenient and stable drilling services.

Product Specifications

Product Features

Known for its powerful functionality and reliability, the RCZ545 drill rig is equipped with a Cummins engine that meets strict Euro II emission standards and can deliver up to 194 kW of power. Its rotary system has a free air delivery volume of 15m³ / min and a working pressure of 17 bar. The rotary speed is adjustable between 0 - 90 rpm and the rotary torque is up to 2579 Nm. It is suitable for drilling diameters ranging from 108 mm to 137 mm. mm deep hole drilling operations. This drilling rig not only has a wide drilling range, but also has high deep hole drilling efficiency, powerful conveying system and excellent operating performance.

In addition, the RCZ545 drilling rig also has excellent off - road capabilities. The standard high - speed and low - speed driving system enables it to cope with complex terrain. The maximum climbing ability reaches 25 ° and the maximum traction force reaches 71 kN, ensuring the safety of operators and equipment.

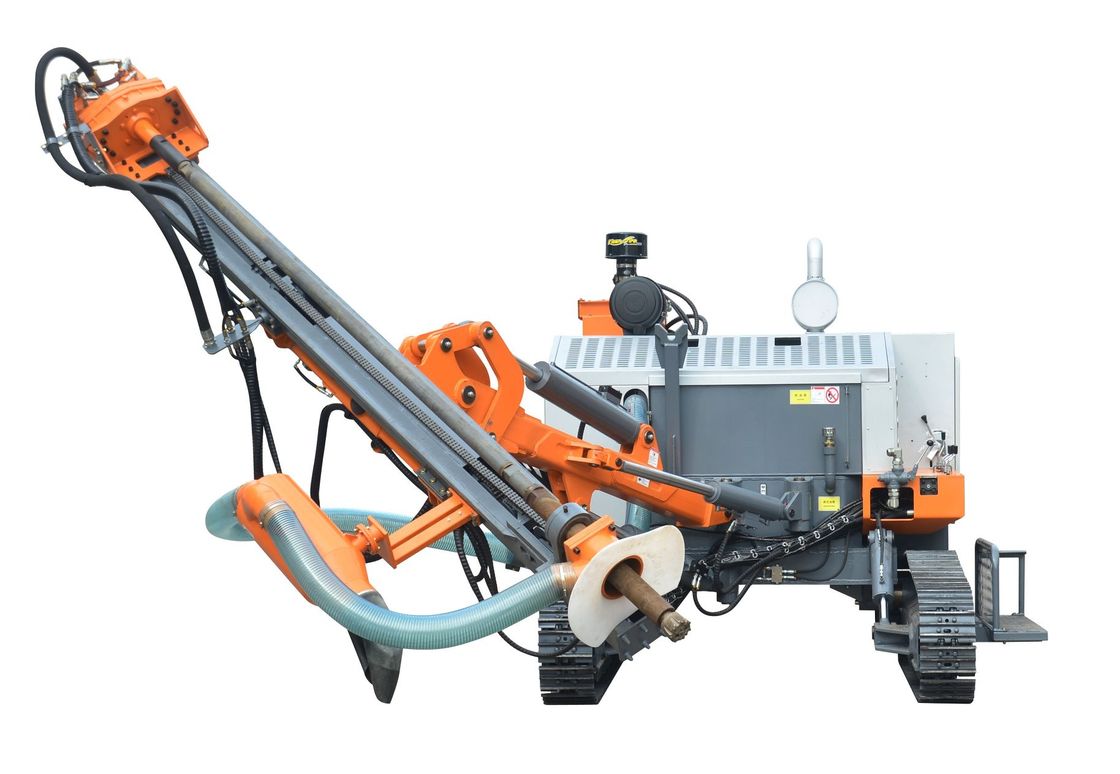

Product Image
