650m Depth Core Drilling Rig 92KW Engine Hydraulic Rock Core Drilling Machine

650m Depth Core Drilling Rig 92KW Engine Hydraulic Rock Core Drilling Machine

core drilling rig 92kw

hydraulic rock core drilling machine

650m core drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ600C

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCJ600C
Diesel Engine Model:
Yuchai Engine 4 Cylinders
Rated Power:
92kw
Transport:
4500*1900*2300mm
Weight:
4500kg
Highlight:

core drilling rig 92kw

,

hydraulic rock core drilling machine

,

650m core drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

650m Depth Hydraulic Rock Core Drilling Rig 92KW Yuchai Engine 4 Cylinders



Product Description



The RCJ600C steel crawler drilling rig represents our innovation in fully hydraulic drive technology. It is not only designed for solid mineral deposit drilling, but can also flexibly handle a wide range of engineering geology, shallow oil and gas, groundwater drilling, and tunnel ventilation, drainage and dam injection. Operation. Safety is at the core of its design, and it is equipped with multiple safety protection measures including safety valves, emergency stop buttons and blockage detection systems to ensure the safety of operators and equipment.



The power head rotation of RCJ600C uses an advanced axial piston pump and a tilting axis piston motor, combined with a stepless speed-adjustable mechanical gear, to provide powerful power and flexible speed control. The design of the derrick allows drilling within the range of 0 - 90°, enhancing operational flexibility. The hydraulic system adopts load - sensitive control, which improves work efficiency and torque output, making RCJ600C an efficient and reliable drilling equipment.



In summary, the RCJ600C fully hydraulic core drilling rig is a drilling equipment that integrates advanced technology, high safety standards and powerful performance. It can meet the needs of core drilling under various complex geological conditions and ensure the output of high - quality results.



Product Specifications



Working stratum Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity BTW (m) 650
NTW (m) 600
HTW (m) 300
PQ (m)
Hydraulic system Rated pressure Mpa 32+16
Cooling way secondary air cooling plus primary water cooling
Power Diesel engine model Yuchai engine 4 cylinders
Rated power 92KW
Rated speed 2200rpm
Rotary head Max torque 1400N.m
Max rotary speed 1400rpm
Feeding stroke 1.9m
through-hole 95
Lifting force 240KN
Feeding force 120KN
Wireline hydraulic Winch capacity Rope capacity 800m
Lifting force 1.5T
Lifting speed 110m/min
Rope diameter 5mm

Mast



Full height 6.1m
Drilling angle 45-90°
Slip Stroke 800mm
Clamp (hydraulic ) through-hole BQ/NQ/HQ/PQ
Mud pump (hydraulic ) Model BW90/3
type Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter 65mm
stroke 50mm
Pump speed (times/min) 220 156 115
Flow (L/min) 90 65 50
Pressure (Mpa 1 2 3
Outlet pipe diameter 25mm
Inlet pipe diameter 38mm
Crawler chassis Walking speed 0~2km/h
Climbing angle 25°-30°
Dimension Transport 4500*1900*2300mm
Weight 4500kg



Product Features



The RCJ600C drilling rig has a wireless remote control crawler chassis to improve flexibility and safety. The frame rigidity is enhanced by a welded structure, and the powerhead rails are made of hot - rolled carbon steel and equipped with a one - way throttle valve. The drilling rig tower is designed with a ground - touching base to enhance stability, and a rotating mechanism and a propulsion mechanism to ensure stability and reliability. Hydraulic grippers and winches are used for drill pipe operation, and hydraulic outriggers are quickly leveled. Integrated control on the operating console, full hydraulic drive and load - sensitive control improve efficiency. The power system is a high - power diesel engine, which enjoys national after - sales service. The cooling system combines air and water cooling.



Product Image

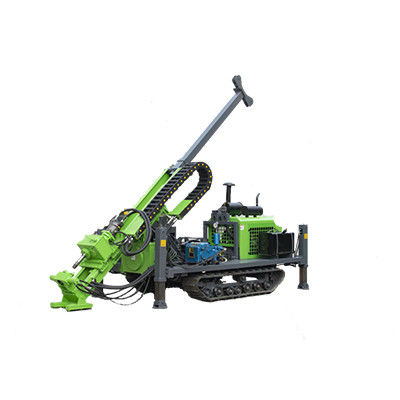

650m Depth Core Drilling Rig 92KW Engine Hydraulic Rock Core Drilling Machine 0650m Depth Core Drilling Rig 92KW Engine Hydraulic Rock Core Drilling Machine 1650m Depth Core Drilling Rig 92KW Engine Hydraulic Rock Core Drilling Machine 2650m Depth Core Drilling Rig 92KW Engine Hydraulic Rock Core Drilling Machine 3
