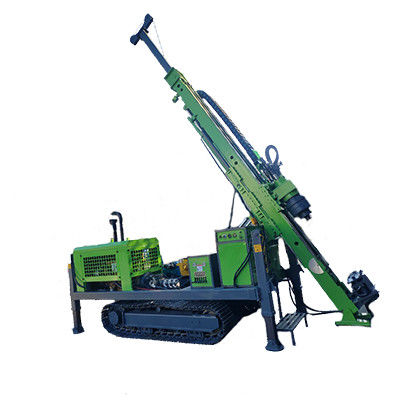

600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders

600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders

hydraulic core drilling rig 92kw

600m hydraulic core drilling rig

600m hydraulic core drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ800C

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCJ800C
Diesel Engine Model:
Yuchai Engine 6 Cylinders
Rated Speed:
2200rpm
Dimension:
5600*2000*2400mm
Weight:
6800kg
Highlight:

hydraulic core drilling rig 92kw

,

600m hydraulic core drilling rig

,

600m hydraulic core drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

600 - 1200m Depth Hydraulic Core Drilling Rig 92KW Yuchai Engine 6 Cylinders



Product Description



RCJ800C drilling rig is an efficient and stable hydraulic core drilling rig specially designed for hard rock drilling. It adopts a fully hydraulic drive system, including an advanced axial piston pump and a tilting axis piston motor, which can realize the rotation and stepless speed regulation of the power head. Its cylinder chain - type two - speed feed mechanism and transverse translation mechanism ensure motion stability and reliability. The drilling tower is designed with an overall lifting and sliding cylinder, which can flexibly drill holes within the range of 0 - 90°. The hydraulic system adopts load - sensitive control, which improves work efficiency and torque output.



In addition, the RCJ800C is equipped with a hydraulic clamp, hydraulic leveling legs and a retractable derrick to facilitate quick positioning and drilling operations. The wireless remote control crawler chassis enables flexible operation in various terrains while ensuring the safety of operators. With its high drilling efficiency, stability and convenience, this drilling rig has become an ideal choice for geological exploration and engineering survey, greatly reducing labor and equipment maintenance costs.



Product Specifications



Working stratum Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity BTW (m) 1200
NTW (m) 1000
HTW (m) 800
PQ(m) 600
Hydraulic system Rated pressure Mpa 32+16
Cooling way secondary air cooling plus primary water cooling
Power Diesel engine model Yuchai engine 6 cylinders 92KW
Rated power 92KW
Rated speed 2200rpm
Rotary head Max torque 1800N.m
Max rotary speed 1400rpm
Feeding stroke 3.5m
Lifting force 300KN
Feeding force 150KN
Wireline hydraulic Winch Rope capacity 1000m

Henan Rancheng Machinery Co.,Ltd

Capacity Lifting force 5T
Lifting speed 110m/min
Rope diameter 5mm
Mast Full height 7.9m
Drilling angle 0-90°
Slip Stroke 1200mm
Clamp (hydraulic)   through-hole 130mm
Mud pump (hydraulic ) Model BW160/10
type Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter 70mm
stroke 70mm
Pump speed (times/min) 200 132 83 55
Flow (L/min) 160 107 67 44
Pressure (Mpa 2.5 4 6.5 10
Outlet pipe diameter 32mm
Inlet pipe diameter 51mm
Crawler chassis Walking speed 0~2km/h
Climbing angle 25°-30°
Dimension Transport 5600*2000*2400mm
Weight 6800kg



Product Features



The RCJ800C drilling rig adopts fully hydraulic core drilling technology to achieve efficient drilling operations. This drilling rig uses diamond wire drilling and has extremely high drilling efficiency. Equipped with a 3 - meter pipe pole and steel crawler chassis, it can be flexibly moved and transported in various terrains. Equipped with a 92kW 6 - cylinder Yuchai engine, which provides powerful power. It has a fast rotation speed of 1,400 revolutions per minute, allowing it to drill into rock formations at extremely fast speeds. Mainly used in geological exploration, mine detection and other projects.



Product Image



600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders 0600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders 1600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders 2600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders 3600m - 1200m Depth Hydraulic Core Drilling Rig 92KW Diesel Engine 6 Cylinders 4
