800m - 1400m Depth Hydraulic Core Drilling Rig Machine 118KW Engine 6 Cylinders

800m - 1400m Depth Hydraulic Core Drilling Rig Machine 118KW Engine 6 Cylinders

800m hydraulic core drilling rig

800m hydraulic core drilling machine

1400m hydraulic core drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ1000C

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCJ1000C
Diesel Engine Model:
Yuchai Engine 6 Cylinders 118KW
Max Torque:
2600N.m
Transport:
5600*2000*2400mm
Weight:
7300kg
Highlight:

800m hydraulic core drilling rig

,

800m hydraulic core drilling machine

,

1400m hydraulic core drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

800 - 1400m Depth Hydraulic Core Drilling Rig 118KW Yuchai Engine 6 Cylinders



Product Description



The RCJ1000C fully hydraulic core drilling rig stands out for its powerful drilling capacity, efficient hydraulic system and maximum hydraulic pressure of up to 30MPa. It can achieve a drilling depth of 1,000 meters and provides high - torque rotation in hard rock formations to ensure efficient drilling. Its rugged chassis design ensures high stability and drilling accuracy, while the automatic drilling control system enhances safety by minimizing the risk of accidents and increasing efficiency. In terms of operation, the RCJ1000C takes the operator's comfort into consideration and is equipped with a user - friendly control system to make operation easier. Additionally, the rig ’ s reliability and ease of maintenance reduce operational downtime and maintenance costs. Combining these features, the RCJ1000C is an ideal choice for geological exploration, mineral exploration and scientific research, providing excellent performance, reliability and ease of use while ensuring maximum safety and minimum maintenance costs.



Product Specifications



Working stratum Loose soil layer and bed rock(hardness:F6~20)
Drilling capacity BTW (m) 1400
  NTW (m) 1200
  HTW (m) 1000
  PQ(m) 800
Hydraulic system Rated pressure Mpa 32+16
  Cooling way secondary air cooling plus primary water cooling
Power Diesel engine model Yuchai engine 6 cylinders 118KW
  Rated power 118KW
  Rated speed 2300rpm
Rotary head Max torque 2600N.m
  Max rotary speed 1400rpm
  Feeding stroke 3.5m
  Through-hole diameter 95mm
  Lifting force 360KN
  Feeding force 180KN
Wireline hydraulic Winch capacity Rope capacity 1200m
  Lifting force 24KN
  Lifting speed 110m/min
  Rope diameter 8mm
Mast Full height 7.9m
  Drilling angle 0-90°
  Slip Stroke 1200mm
Clamp (hydraulic)   through-hole 130mm
Mud pump (hydraulic ) Model BW160/10
  type Horizontal three cylinder reciprocating single acting piston pump
  Cylinder diameter 70mm
  stroke 70mm
  Pump speed (times/min) 200 132 83 55
  Flow (L/min) 160 107 67 44
  Pressure (Mpa 2.5 4 6.5 10
  Outlet pipe diameter 32mm
  Inlet pipe diameter 51mm
Crawler chassis Walking speed 0~2km/h
  Climbing angle 25°-30°
Dimension Transport 5600*2000*2400mm
Weight 7300kg



Product Features



RCJ1000C fully hydraulic core drilling rig is a multi-functional drilling equipment suitable for drilling operations in loose soil and hard rock. The rig has powerful drilling capabilities and is capable of drilling BTW 1,400 meters, NTW 1,200 meters, HTW 1,000 meters and PQ 800 meters. It adopts a hydraulic system with a rated pressure of 32 + 16MPa and adopts a double cooling method to ensure efficient operation. The power system is equipped with a 118KW Yuchai diesel engine with a maximum speed of 2300rpm. The drilling rig also has a lifting force of 360KN, a feed force of 180KN and a drawworks capacity of 1200m, as well as a wireline hydraulic drawworks with a lifting force of 24KN. The total height of the derrick is 7.9m, with an adjustable drilling angle of 0 - 90 ° and a sliding stroke of 1200mm. The mud pump is BW160 / 10, with a flow rate between 160 - 44L / min and a pressure between 2.5 - 10MPa. The walking speed of the crawler chassis is between 0 ~ 2km / h, and the climbing angle is between 25° - 30°.



Product Image

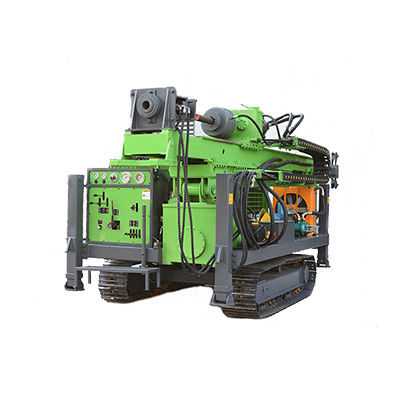

800m - 1400m Depth Hydraulic Core Drilling Rig Machine 118KW Engine 6 Cylinders 0800m - 1400m Depth Hydraulic Core Drilling Rig Machine 118KW Engine 6 Cylinders 1800m - 1400m Depth Hydraulic Core Drilling Rig Machine 118KW Engine 6 Cylinders 2800m - 1400m Depth Hydraulic Core Drilling Rig Machine 118KW Engine 6 Cylinders 3
