300 - 1400m Depth Core Drilling Machine NQ ,BQ ,HQ ,PQ Bore Dia Diesel Engine

300 - 1400m Depth Core Drilling Machine NQ ,BQ ,HQ ,PQ Bore Dia Diesel Engine

300m core drilling machine

1400m core drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF-2T/RCH-4T/RCH-42T/RCH-44T

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCF-2T/RCH-4T/RCH-42T/RCH-44T
Drilling Depth:
300-1400m
Spindle Stroke:
560m,600m
Drill Tower Height:
8m,10m
Adjusted Angles Of The Drill Tower:
45°-90°
Highlight:

300m core drilling machine

,

1400m core drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

300 - 1400m Depth NQ ,BQ ,HQ ,PQ Bore Dia Core Drilling Rig Diesel Engine



Product Description



RCF - 2T / RCH - 4T / RCH - 42T / RCH - 44T series spindle core drilling rigs lead the trend of core drilling technology with their unique integrated design and advanced hydraulic lifting tower function. These drilling rigs not only have exquisite structures and exquisite designs, but are also lightweight and easy to operate, which greatly improves the efficiency of drilling operations. Its flexible multi - angle adjustment capability, especially in the clockwise direction from 0 ° to 90 °, makes drilling large - slope holes a breeze, meeting the drilling needs under different geological conditions.



This series of drill rigs have demonstrated their outstanding performance in a wide range of fields, from mineral exploration to engineering geological underground exploration to hydrogeological exploration, they are indispensable tools. They play a core role in key tasks such as geological survey, resource development and environmental protection. Through high - precision drilling operations, they provide solid technical support for my country's geological research, infrastructure construction and sustainable development strategy.



Product Specifications



Items RCH-2T RCH-4T RCH-42T RCH-44T
Drilling depth 300-500m 700-1000m 700-1100m 700-1400m
Max. torque 3247 N.m 2740 N.m 3300 N.m 3300 N.m
Spindle stroke 560mm 600mm 600mm 600mm
I.D of spindle 96mm 68mm 93mm 93mm
Max. lifting capacity of spindle 60 KN 80KN 80KN 120 KN
Max. feeding force of the spindle 45KN 60KN 60KN 90KN
Max.Hoisting Force 30 KN 30KN 30KN 45KN
Diesel engine power 22kw 30kw 30kw 37kw
Drill tower height 8m 10m 10m 10m
Max.A load of the drill tower 75 KN 100KN 10KN 100KN
Adjusted angles of the drill tower 45°-90° 45°-90° 45º-90º 45°-90°



Product Features



RCF - 2T / RCH - 4T / RCH - 42T / RCH - 44T series spindle core drilling rigs integrate the main engine and the drilling tower, have high - speed rotation and a wide rotation range, and can provide large torque at low speeds to meet various drilling needs. Its lightweight and easy - to - disassemble feature improves transportation and installation efficiency. Compact structure and reasonable layout, exposed components make maintenance easy and enhance operational reliability. The drilling rig has a two - speed reverse function to facilitate handling of drilling failures. The low center of gravity ensures stable drilling at high speeds, and the centralized operating lever makes operation easy. Equipped with instruments, it is easy to monitor conditions inside the hole and improve safety. The separated design of the transmission part facilitates layout in limited space. The pyramid - shaped design of the drilling tower is lightweight and has few components, making it easy to transport and install. The top wheel assists ground installation. The drilling tower can be tilted to compensate for the retreat distance and keep the hole center and the pulley center straight. The clockwise adjustment function is suitable for drilling large - angle holes, and the adjustment is convenient and has a wide range.



Product Image

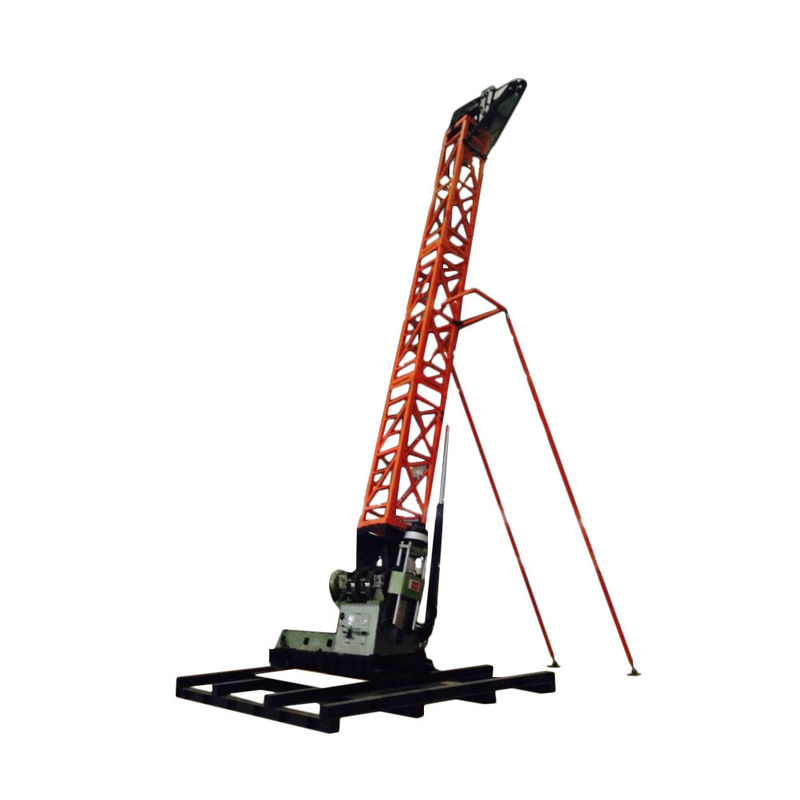

300 - 1400m Depth Core Drilling Machine NQ ,BQ ,HQ ,PQ Bore Dia Diesel Engine 0300 - 1400m Depth Core Drilling Machine NQ ,BQ ,HQ ,PQ Bore Dia Diesel Engine 1300 - 1400m Depth Core Drilling Machine NQ ,BQ ,HQ ,PQ Bore Dia Diesel Engine 2300 - 1400m Depth Core Drilling Machine NQ ,BQ ,HQ ,PQ Bore Dia Diesel Engine 3
