30m / 100m / 200m Core Drilling Rig 23.5KW Hydraulic Small Water Well Drilling Rig

30m / 100m / 200m Core Drilling Rig 23.5KW Hydraulic Small Water Well Drilling Rig

200m core drilling rig

core drilling rig 23.5kw

hydraulic small water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCY200P

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCY200P
Hole Diameter:
96/75.7/60mm
Core Diameter:
63.5/56/42mm
Drilling Depth Capacity:
30/100/200m
Power Engine:
KUBOTA D1105.T, 23.5KW/3000RPM
Highlight:

200m core drilling rig

,

core drilling rig 23.5kw

,

hydraulic small water well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

30 / 100 / 200m Small Hydraulic Core Drilling Rig KUBOTA 23 . 5KW Power Engine



Product Description



The RCY200P small hydraulic core drilling rig is known for its efficiency, lightness and ease of operation. Its modular design makes it ideal for drilling operations in mountainous and remote areas. The drill rig has low energy consumption, high cost - effectiveness, and its compact and lightweight structure makes it easy to carry, making it the preferred equipment in the field of mineral exploration. It is widely used in many fields such as mineral exploration, infrastructure construction, water conservancy and hydropower engineering, tunnel exploration, and geological surveys. It performs particularly well in areas with complex terrain and difficult to reach.



The RCY200P core drilling rig is an ideal choice for small projects, preliminary surveys, and time - critical work situations, especially in drilling tasks within a depth of 200 meters. Its advantages are more obvious.



Product Specifications



Drilling depth capacity HQ/NTW/BTW Rod Length 1.0m 30/100/200m
Hole Diameter 96/75.7/60mm
Core Diameter 63.5/56/42mm
Power engine KUBOTA D1105.T, 23.5KW/3000RPM
Hydraulic system American Parker valve, water cooler
Maximum pressure 20Mpa/max, Maximum flow 54L/min
Top drive rotation head Maximum torque 400N.m
Maximum rotation speed 1300rpm
Feed travel 1.27m
Pull/Thrust 33KN/24KN(Single cylinder)
Winch Average speed 150m/min
Lift 600kg
Were Diameter 5mm
Were accommodation 240m
Mast Height of the mast on a 90 degree 3.8m
Drilling angle 45º-90º(standard )
0º-90º(option )
Size and weight Platform area/Module quantity 2.5m×2.5m×3.8m/4 pcs
Gross/Maximum module 513kg/176kg



Product Features



The RCY200P small hydraulic core drilling rig is characterized by its lightweight design. The heaviest component is only 120 kg, making it easy to carry and transfer. The frame is made of 90 % aviation aluminum material, which improves portability. It can be quickly assembled or disassembled within 20 minutes, suitable for rapid deployment. Thin - walled drill pipe reduces resistance and speeds up penetration. Long stroke cylinders provide more precise control than chains. Internationally renowned brand components ensure system stability and reliability. No additional investment in roads and infrastructure is required, saving time and costs. The hydraulically driven coring and drilling process eliminates the need for a drilling tower and is energy - saving and efficient. RCY200P is an ideal portable core drilling rig, suitable for various complex terrains and fast exploration tasks.



Product Image

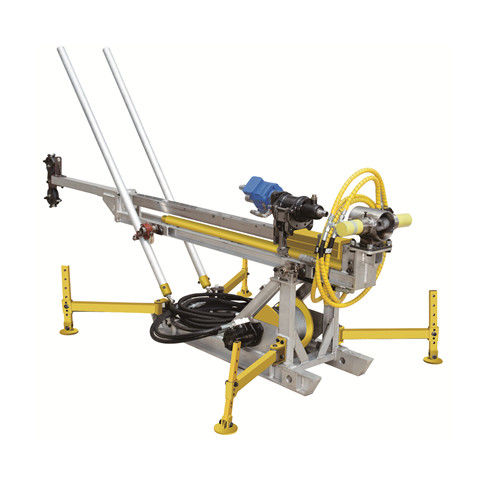

30m / 100m / 200m Core Drilling Rig 23.5KW Hydraulic Small Water Well Drilling Rig 0

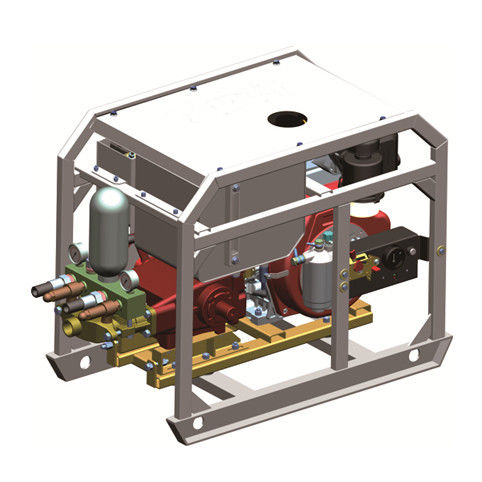

30m / 100m / 200m Core Drilling Rig 23.5KW Hydraulic Small Water Well Drilling Rig 1

30m / 100m / 200m Core Drilling Rig 23.5KW Hydraulic Small Water Well Drilling Rig 2
