Name: BQ NQ HQ Drilling Dia Core Drilling Machine Underground 100HP Diesel Engine 400m Depth
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCDX-2
Availability: InStock

Home > products > Core Drilling Rig >

BQ NQ HQ Drilling Dia Core Drilling Machine Underground 100HP Diesel Engine 400m Depth

core drilling machine underground

drilling machine underground 100hp

100hp core drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCDX-2

Request A Quote

Product Details

Name:

Core Drilling Rig

Model:

RCDX-2

Power:

74KW Cummins Diesel Engine

Speed:

2200rpm

Overall Dimensions:

3500*1500*1300 Mm

Mud Pump:

BW-100A

Highlight:

core drilling machine underground

drilling machine underground 100hp

100hp core drilling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price

Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price

Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price

Contact Now

Product Description

400m Depth BQ ,NQ ,HQ Drilling Dia Core Drilling Rig 100HP Diesel Engine

Product Description

The RCDX - 2 fully hydraulic portable drilling rig is a lightweight drilling rig designed for remote and complex environments. It adopts wire core drilling technology and is suitable for diamond drilling operations. Its main components include diesel power unit, hydraulic system, control panel, derrick, main drawworks, line drawworks, drill bit, feeding system and foot clamp, etc. The split design allows the drill rig to have good adaptability and disassembly capabilities, making it easy to transport to inaccessible areas. Sturdy structure and precise control system ensure high penetration rate and excellent reliability. This drilling rig is widely used in mineral exploration, engineering geology underground and hydrological exploration and other fields.

Product Specifications

Power unit	Power	74KW Cummins diesel engine
Power unit	Speed	2200rpm
Drilling capacity	BQ	400m
	NQ	230m
	HQ	120m
Drill head capacity	Max. spindle torque	334~1030Nm
Drill head capacity	Max. Spindle speed	0~900rpm
Feeding system (feed with hydraulic cylinder)	Feeding stroke	1700mm
	Lifting capacity	50kN
	Feeding capacity	25kN
The capacity of the main hoist	Lifting capacity	18kN (single-wire)
	Lifting speed	84m/min
	Rope capacity	30m
	Steel wire diameter	12mm
The capacity of wireline winch	Lifting capacity	8.4kN (bare drum)
	Lifting speed	90~240m/min
	Rope capacity	500m
	Steel wire diameter	6mm
Mud pump	model	BW-100A
Overall dimensions	LWH in transport position	350015001300 mm
Dimensions of the disassembled parts (without mud pump)		The largest part not more than 100kg

Product Features

The RCDX - 2 drilling rig uses a 74KW diesel engine - driven hydraulic system as its core to achieve efficient rotation and flexible feed of the drill bit, adapting to different operating speed requirements. Its crawler design ensures good mobility and climbing ability, allowing stable operation even on rough terrain. The design of the drilling rig allows drilling operations from 45 degrees to 90 degrees in a limited space, making it highly adaptable. Technically, it is not only suitable for diamond drilling, but also adapts to the drilling requirements of different strata. It is widely used in mineral exploration, engineering geology, groundwater resource detection and other fields.

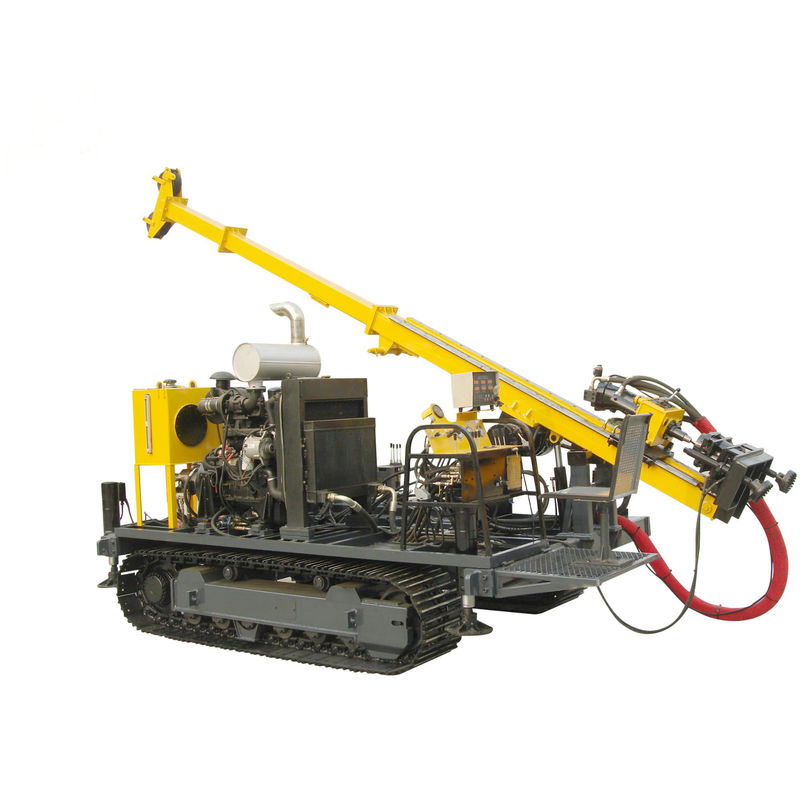

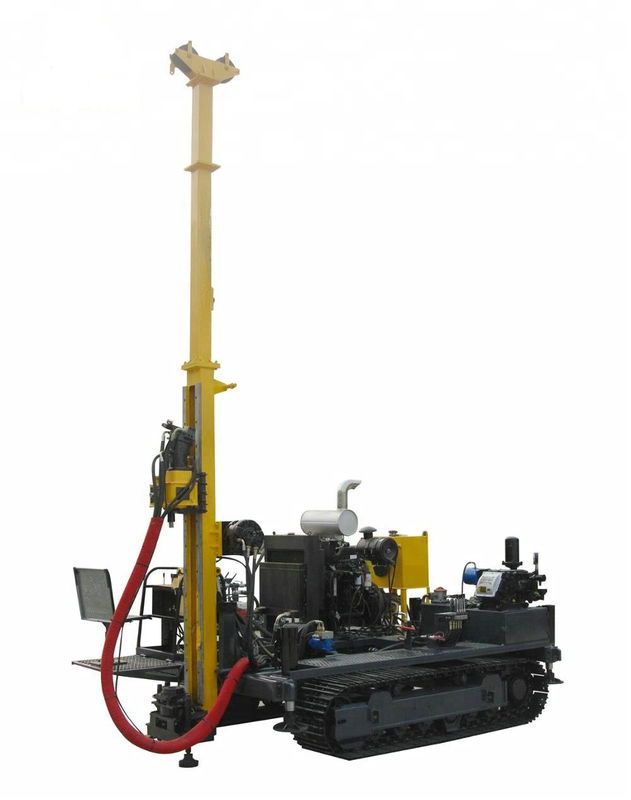

Product Image

BQ NQ HQ Drilling Dia Core Drilling Machine Underground 100HP Diesel Engine 400m Depth 0
