Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine

Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine

hydraulic core drilling machine 300m

crawler mounted hydraulic core drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCDX-4

Contact Us
Request A Quote
Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine
Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine
Product Details
Name:
Core Drilling Rig
Model:
RCDX-4
Drilling Depth:
300-1000m
Drilling Diameter:
BQ,NQ,HQ,PQ
Power:
180HP Diesel Engine
Drilling Way:
Mud Pump Rotary Drilling
Highlight:

hydraulic core drilling machine 300m

,

crawler mounted hydraulic core drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price
Good price Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig online

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price
Good price Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration online Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price
Contact Us
Contact Now
Product Description

300 - 1000m Depth Crawler Mounted Core Drilling Rig 180HP Diesel Engine



Product Description



The RCDX - 4 hydraulic core drilling rig, with its advanced core drilling technology, has become the leading equipment in the field of solid mineral deposit exploration in developed countries. With its efficient and precise drilling capabilities, this drilling rig provides strong technical support for geological exploration, metallurgy, coal, petroleum, natural gas, groundwater and other fields.



In various exploration and prospecting operations, the RCDX - 4 hydraulic core drilling rig can exert its excellent performance and provide reliable data guarantee for resource development and geological research.



Product Specifications



Diesel Engine Model Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
Displacement 5.9L (1.56 US Gallons)
Power 132Kw (180HP)
Rated RPM(Factory setting) 2200rpm
Drilling Capacity BQ 1000m(3280feet)
NQ 700m(2296 feet)
HQ 500m(1640 feet)
PQ 300m(984 feet)
Mud Pump Type Reciprocating pump Triplex Plunger
Model BW160/10
Stroke 70mm(2.76 inch)
Discharge pressure 2.5, 4.0, 6.5, 10.0 Mpa
(363, 580, 943, 1450 psi)
Foot Clamp Clamping Scope 55.5-110 mm(2.19-4.33 inch)
through-hole Ф154mm(6.06 inch)
Others Weight (platform type) 9300 Kg(20506 lb)
Dimensions (L×W×H) 5100×2200×2650mm
(200×86.6×104.3 inch)
Transport Way Crawler



Product Features



The design of the RCDX - 4 hydraulic core drilling rig is simple and efficient. It is equipped with a drive pump motor and directly drives the structure through a hydraulic cylinder to achieve rotational feed and lifting, with a stroke of up to 3.5 meters. The spindle rotation is driven by a single engine, has four mechanical shifting speed ranges, and is adjusted through hydraulic stepless speed changes to adapt to different drilling needs. The rig is lightweight and easy to transport, and the derrick is designed to slide and contact the ground for increased stability. The main shaft is also raised and lowered by hydraulic cylinders, and the foldable nature of the drill makes it easier to transport and reposition. In addition, the large - size design of the spindle aperture further improves drilling efficiency.



Product Image

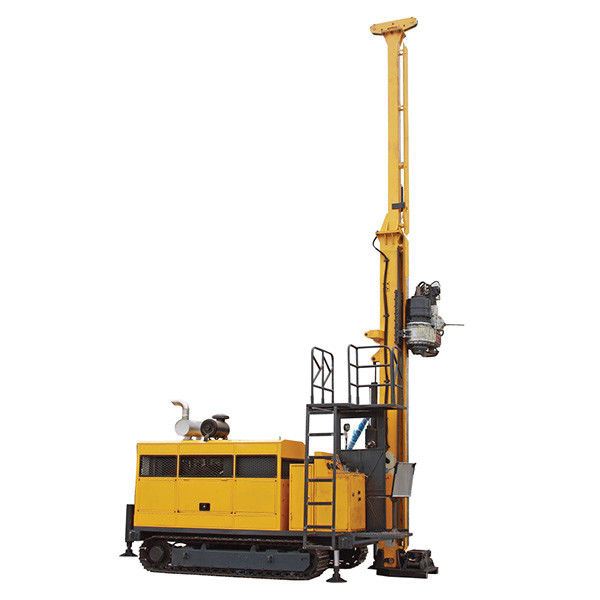

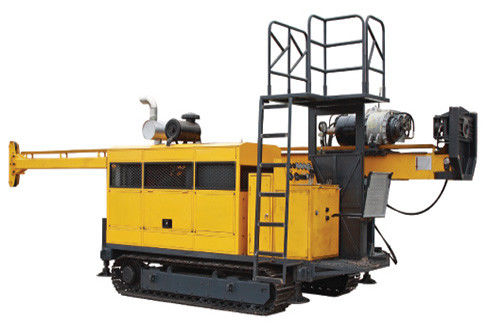

Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine 0Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine 1

Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine 2Crawler Mounted Hydraulic Core Drilling Machine 300m - 1000m Depth 180HP Diesel Engine 3
